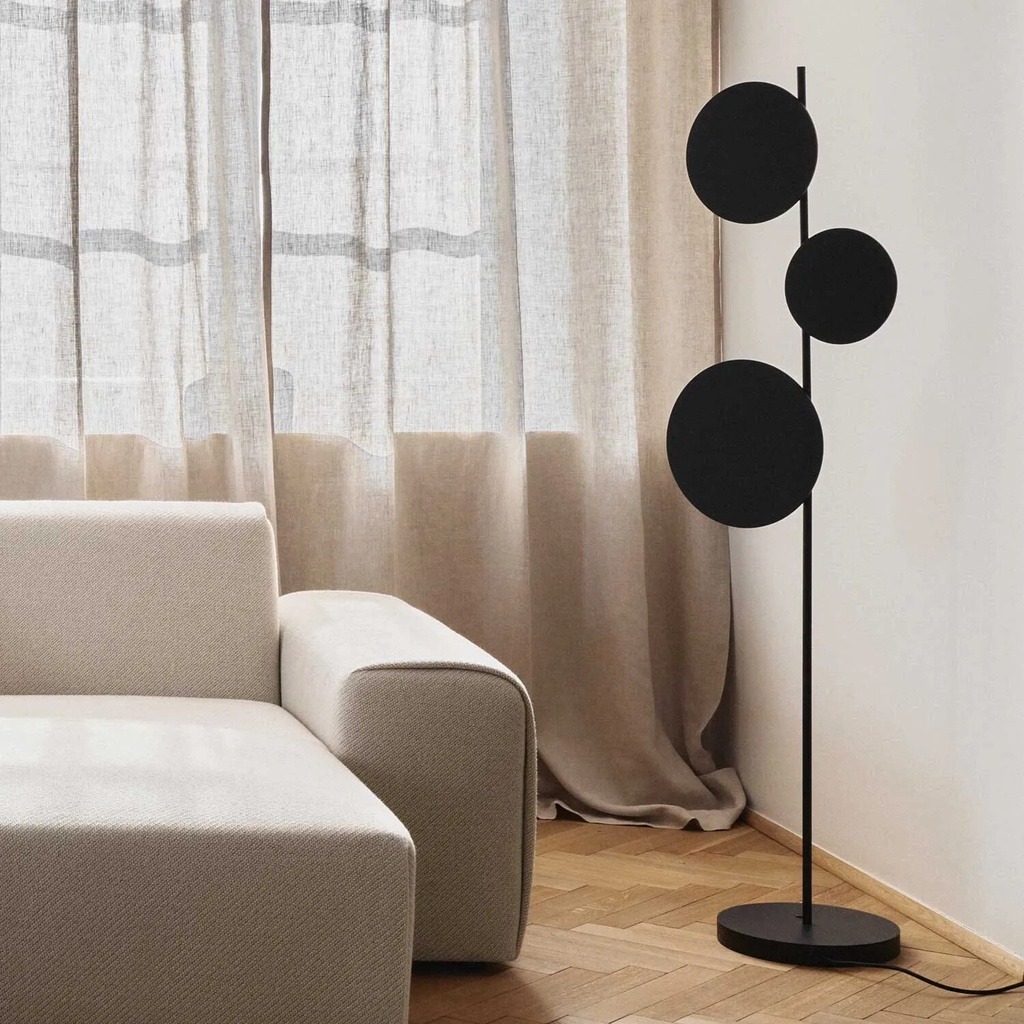

Ambiente K Floor Lamp, 3 × SLED, power consumption 18 W, total luminous flux 1284–1629 lm, clear diffuser with beam angle >90°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, built-in touch dimmer with flash memory and 30-minute sleep timer, incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 28.7114.* · 28.7115.* | Installation | free-standing |
| Protection class | IP20 | Weight | 3–3.5 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | SLED | Power consumption | 3 x 6 W |
| Luminous flux | 3 x 428 lm · 3 x 474 lm · 3 x 543 lm | Beam angle | > 90° |
| Optics | Clear plastic cover, bare LED, > 90° | ||
| Colour temperatures | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike) | ||
| LED module | 18 V, MacAdam Class 2 | Energy efficiency class | F |
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | DIM switch |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
Versions
| Item number | Model | Light colour | Luminous flux |
|---|---|---|---|
| 28.7114.U9A | Ambience A | 2700 K | 3 x 428 lm |
| 28.7114.U9B | Ambience A | 3000 K | 3 x 474 lm |
| 28.7114.U9C | Ambiente A | 4000 K | 3 x 543 lm |
| 28.7115.U9A | Ambience B | 2,700 K | 3 x 428 lm |
| 28.7115.U9B | Ambience B | 3000 K | 3 x 474 lm |
| 28.7115.U9C | Ambience B | 4000 K | 3 x 543 lm |
