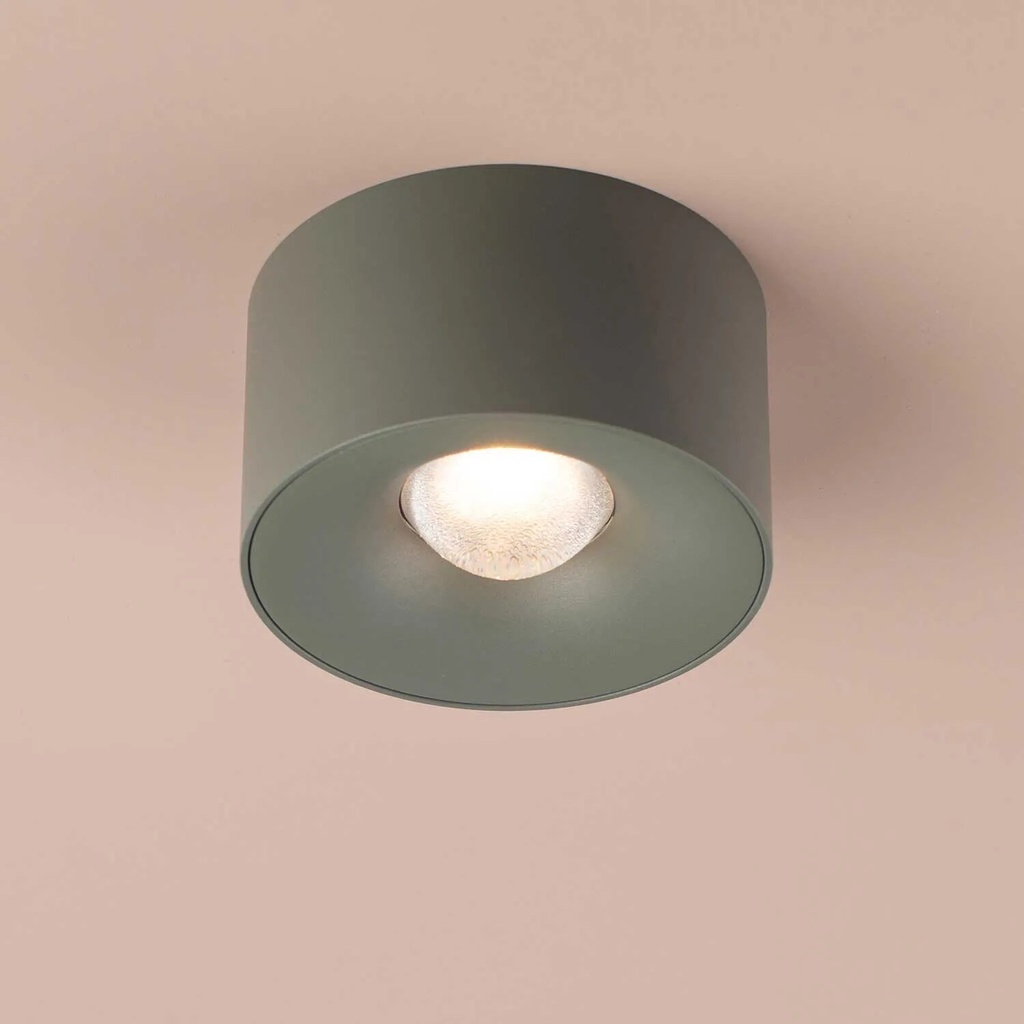

Beep 90 ON surface-mounted ceiling spotlight IP54, 1 × SLED, power consumption 9 W, total luminous flux 732–854 lm, fixed glass lens with a beam angle of 60°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: Casambi, DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP54, direct mounting on KAISER® junction box, magnet-assisted bayonet lock and WAGO® terminals for faster installation, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 01.1105.* | Luminaire type | surface-mounted ceiling spotlight |
| Series | Beep | Model | Beep 90 ON |
| Installation | Surface-mounted ceiling, directly onto KAISER® junction box | Protection rating | IP54 |
| Scope of supply | Integrated driver | ||
| Light | |||
| Light source | SLED | Power consumption | 9 W |
| Luminous flux | 732–854 lm | Beam angle | 60° |
| Optics | fixed glass lens | ||
| Light colours | 2700 K · 3000 K · 4000 K, each with CRI ≥ 98 (Sunlike LED) | ||
| LED module | 18 V, 3-step MacAdam | Energy efficiency class | F to G, depending on light colour |
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | TRIAC · DALI-2 · Casambi |
| Versions | |||
| Item number | Control | Light colour | Luminous flux |
| 01.1105.15A | TRIAC | 2700 K | 732 lm |
| 01.1105.15B | TRIAC | 3000 K | 781 lm |
| 01.1105.15C | TRIAC | 4000 K | 854 lm |
| 01.1105.25A | DALI-2 | 2700 K | 732 lm |
| 01.1105.25B | DALI-2 | 3000 K | 781 lm |
| 01.1105.25C | DALI-2 | 4000 K | 854 lm |
| 01.1105.35A | Casambi | 2700 K | 732 lm |
| 01.1105.35B | Casambi | 3000 K | 781 lm |
| 01.1105.35C | Casambi | 4000 K | 854 lm |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| Two-tone | 060 snow white / 002 black · 002 black / 060 snow white | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
| Installation, weight and warranty | |||
| Installation | Direct mounting on KAISER® box, magnet-assisted bayonet lock, WAGO® terminals | ||
| Weight | 0.6 kg | Warranty (LED) | 5 years |

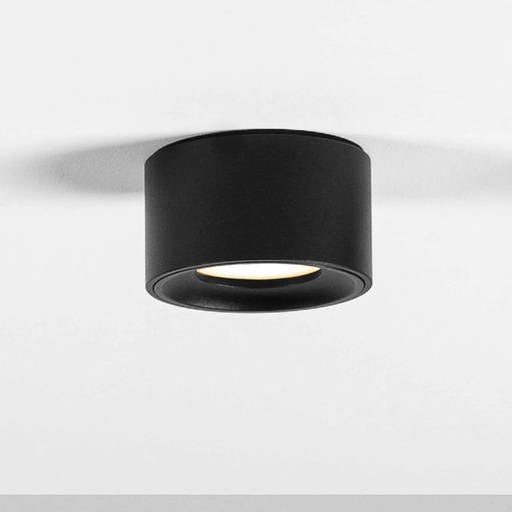

From the family Beep
