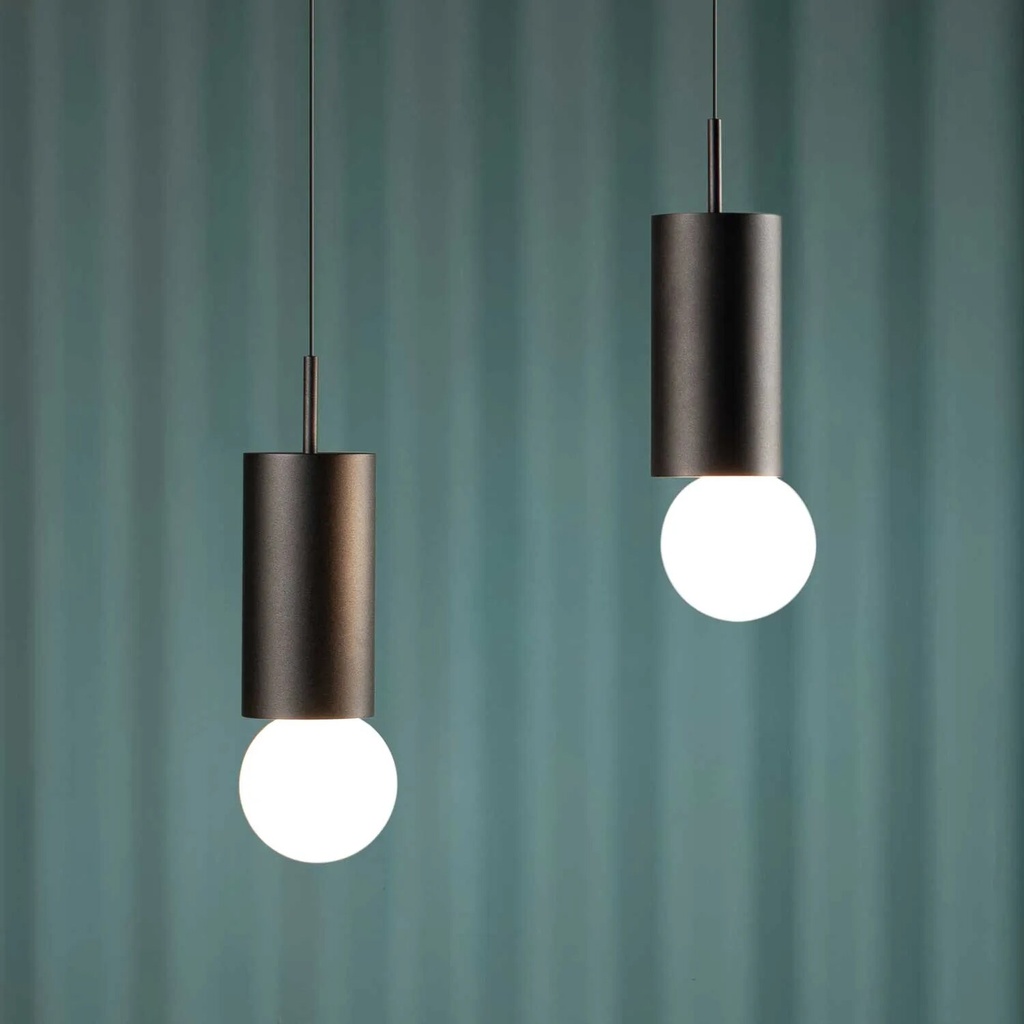

Firefly Z TRC 3PH track pendant light IP44, 1 × SLED, power consumption 6.2 W, total luminous flux 483–560 lm, opal glass diffuser with 30% light loss and omnidirectional distribution, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP44, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 26.5107.* | Installation | 3-phase track |
| Protection class | IP44 | Weight | 1.5 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | SLED | Power consumption | 6.2 W |
| Luminous flux | 483–560 lm | Beam angle | > 90° |
| Optics | Opal glass diffuser (glass globe), > 90° | ||
| Colour temperatures | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike) | ||
| LED module | 36 V, MacAdam Class 2 | Energy efficiency class | F · G |
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | DALI-2 · TRIAC |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of your choice | NCS or RAL as specified | ||
Versions
| Item number | Light colour | Control | Luminous flux |
|---|---|---|---|
| 26.5107.18A 26.5107.28A | 2700 K | TRIAC DALI-2 | 483 lm |
| 26.5107.18B 26.5107.28B | 3000 K | TRIAC DALI-2 | 553 lm |
| 26.5107.18C 26.5107.28C | 4000 K | TRIAC DALI-2 | 560 lm |
