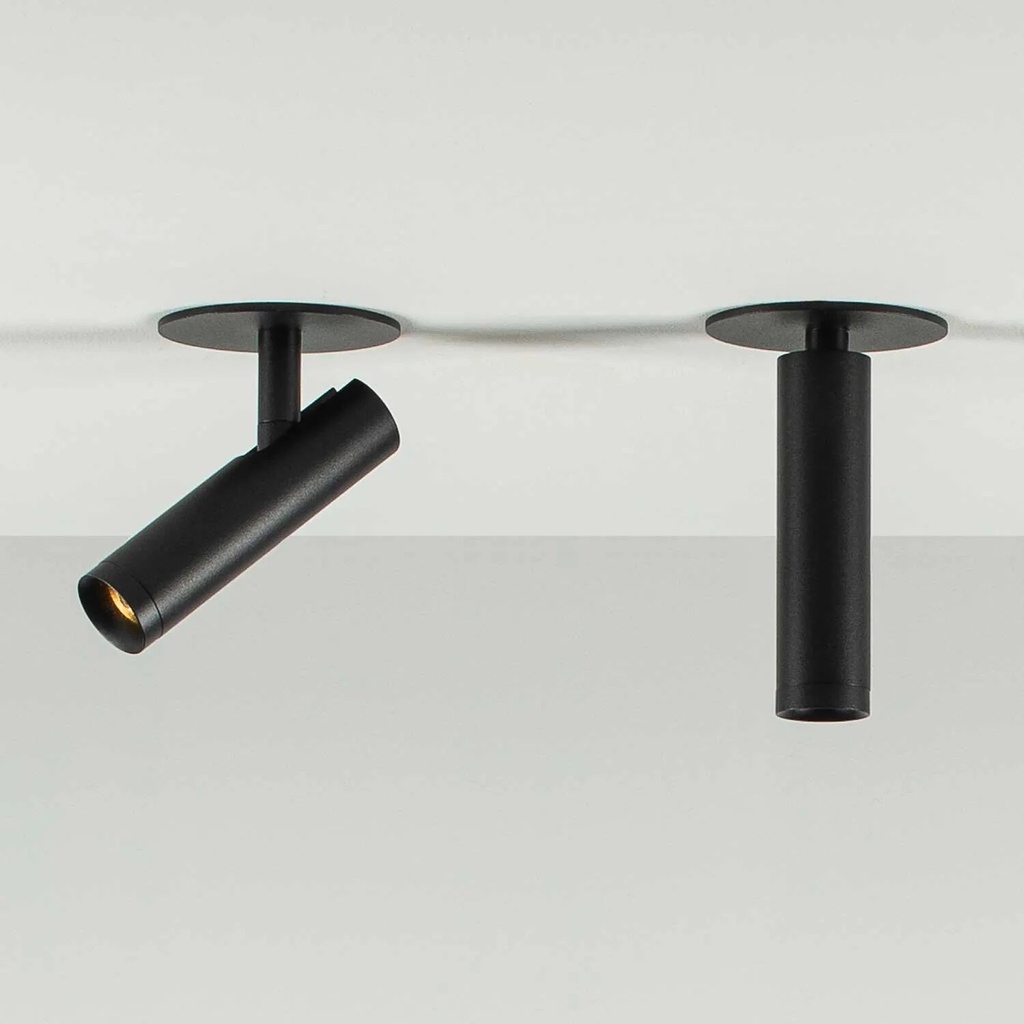

Flask R IN Recessed Ceiling Spotlight

We use AI-generated or AI-enhanced product photos.

Flask R IN Recessed Ceiling Spotlight


  • Length
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 49.3142.67A.002
Add to wishlist
Contact Us

Flask R IN recessed ceiling spotlight, 1 × SLED, power consumption 6.4 W, total luminous flux 540–604 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–40°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, excluding driver, suitable drivers for each dimming type (TRIAC/DALI-2/Casambi); where multiple luminaires are installed, one driver per luminaire, operating current 180 mA, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number49.3142.* · 49.3143.* · 49.3144.*InstallationRecessed
Protection classIP20Weight0.8–1.2 kg
Warranty (LED)5 years
ContentsDriver not included; a suitable driver is required for each light
Light
Light sourceSLEDPower consumption6.4 W
Luminous flux540–604 lmBeam angle15–40°
OpticsGlass lens, adjustable from 15° to 40°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply180 mA DCControlvia the selected driver
Compatible driversTRIAC: 87.1107.B18.000 (7 W, 180 mA) — DALI-2: 87.1223.C18.000 (23 W, 180 mA) — CASAMBI: 87.1323.C18.000 (23 W, 180 mA)
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelLight colourLuminous flux
49.3142.67AFlask R 15 IN2700 K540 lm
49.3142.67BFlask R 15 IN3000 K556 lm
49.3142.67CFlask R 15 IN4000 K604 lm
49.3143.67AFlask R 30 IN2700 K540 lm
49.3143.67BFlask R 30 IN3000 K556 lm
49.3143.67CFlask R 30 IN4000 K604 lm
49.3144.67AFlask R 50 IN2,700 K540 lm
49.3144.67BFlask R 50 IN3000 K556 lm
49.3144.67CFlask R 50 IN4000 K604 lm
