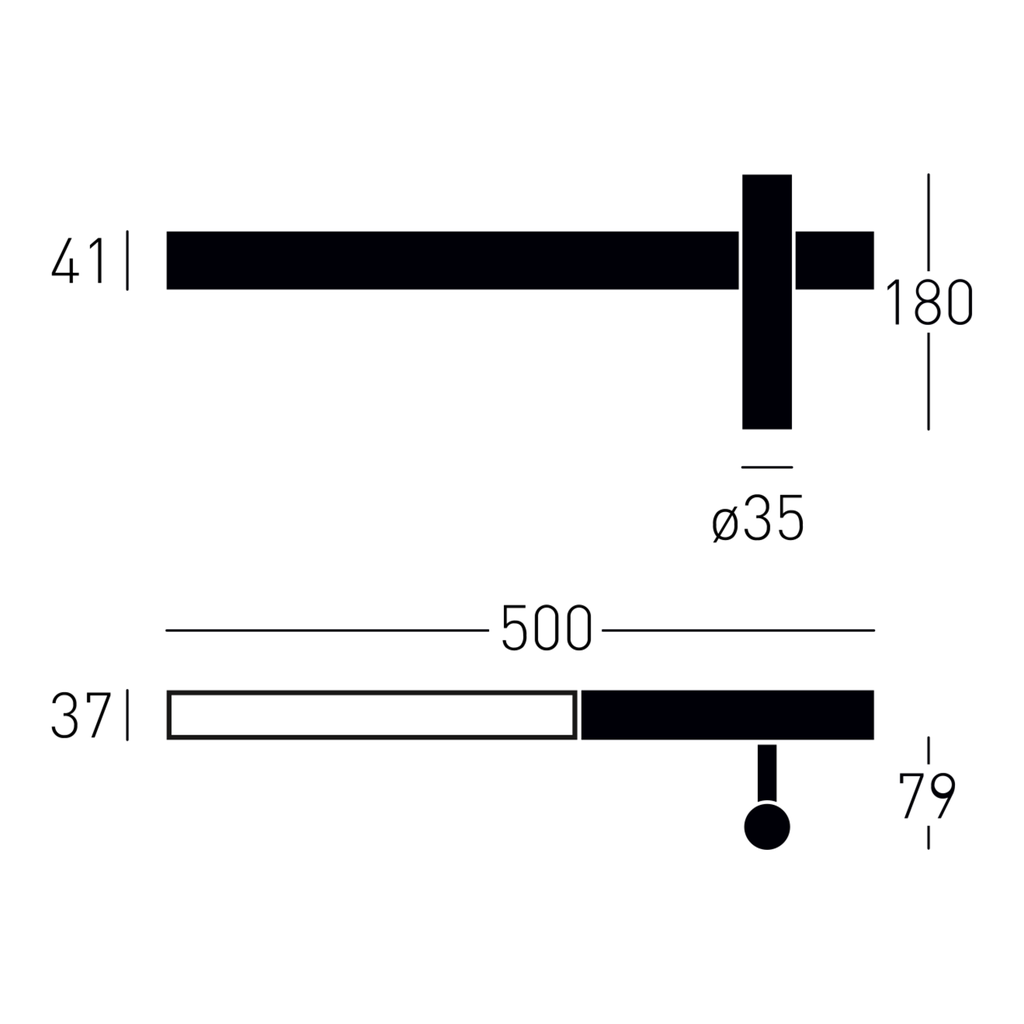

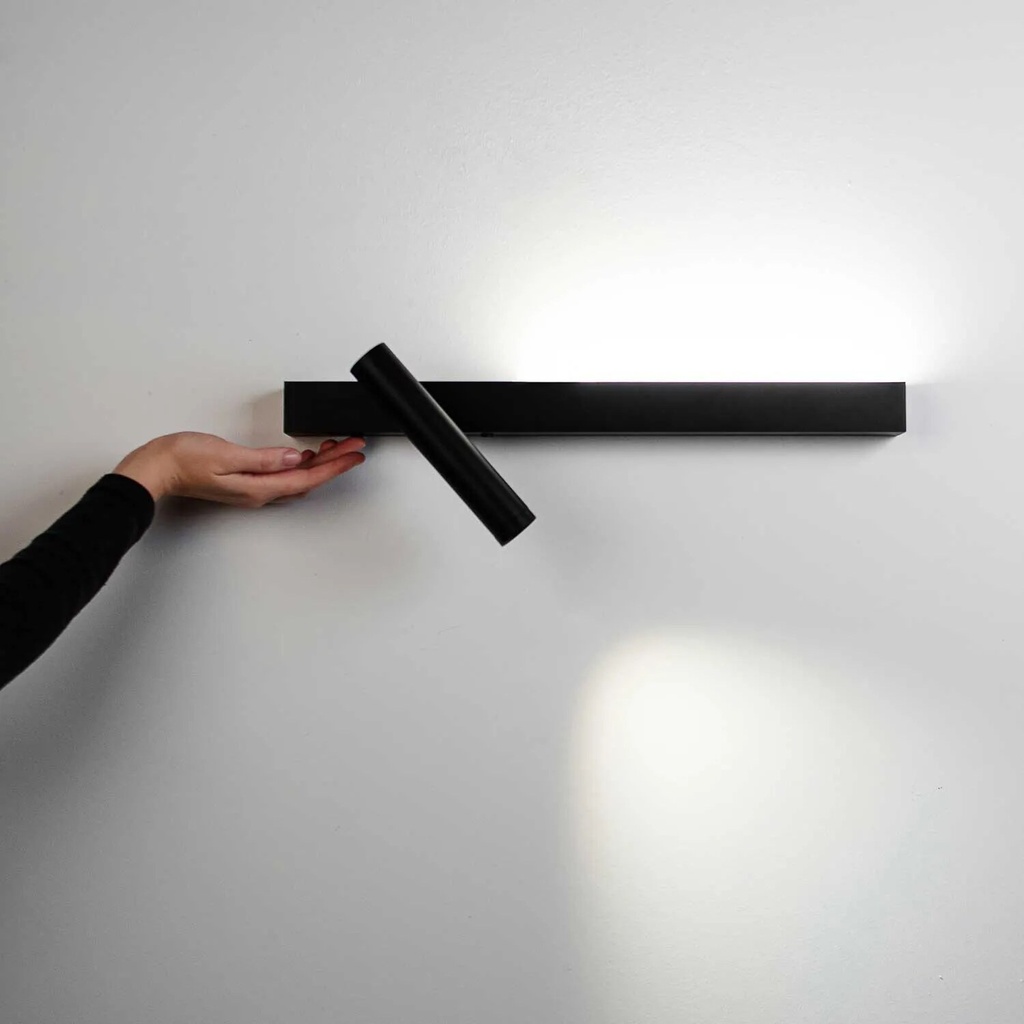

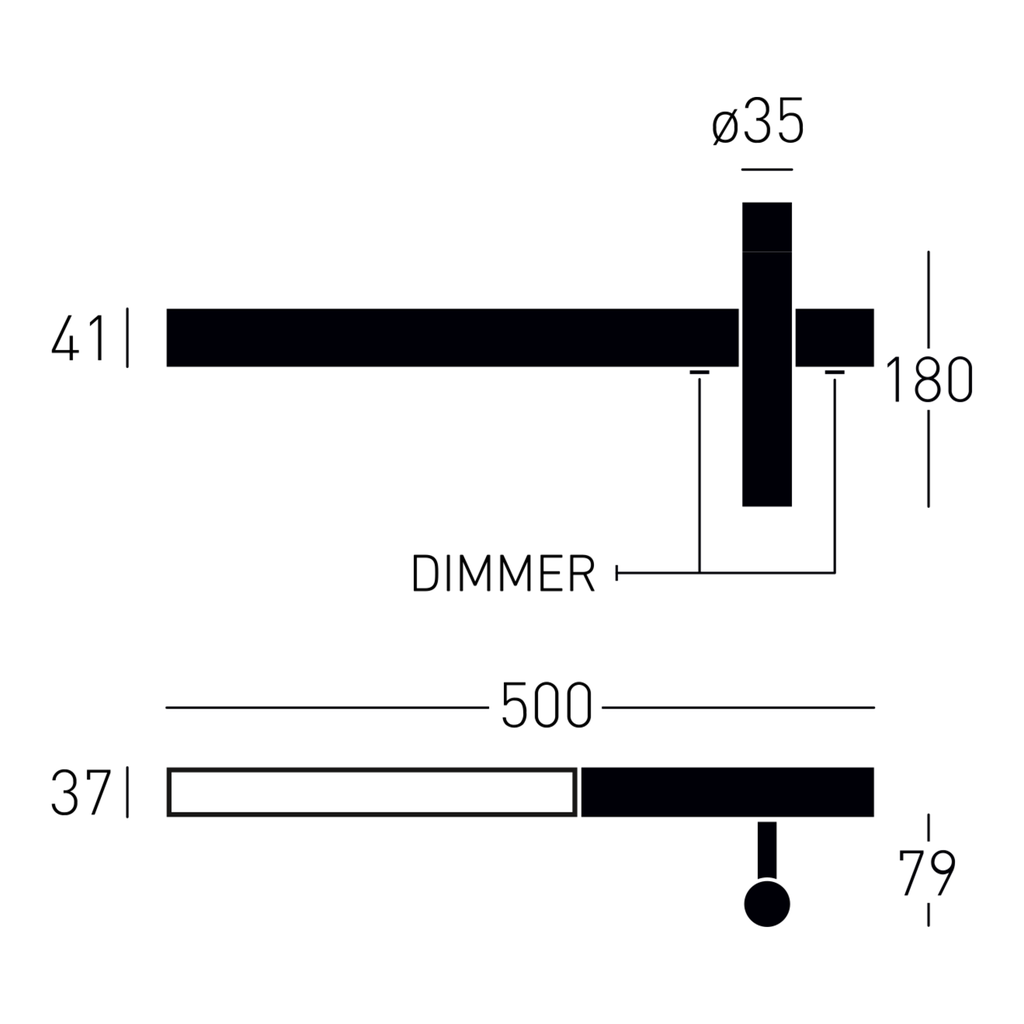

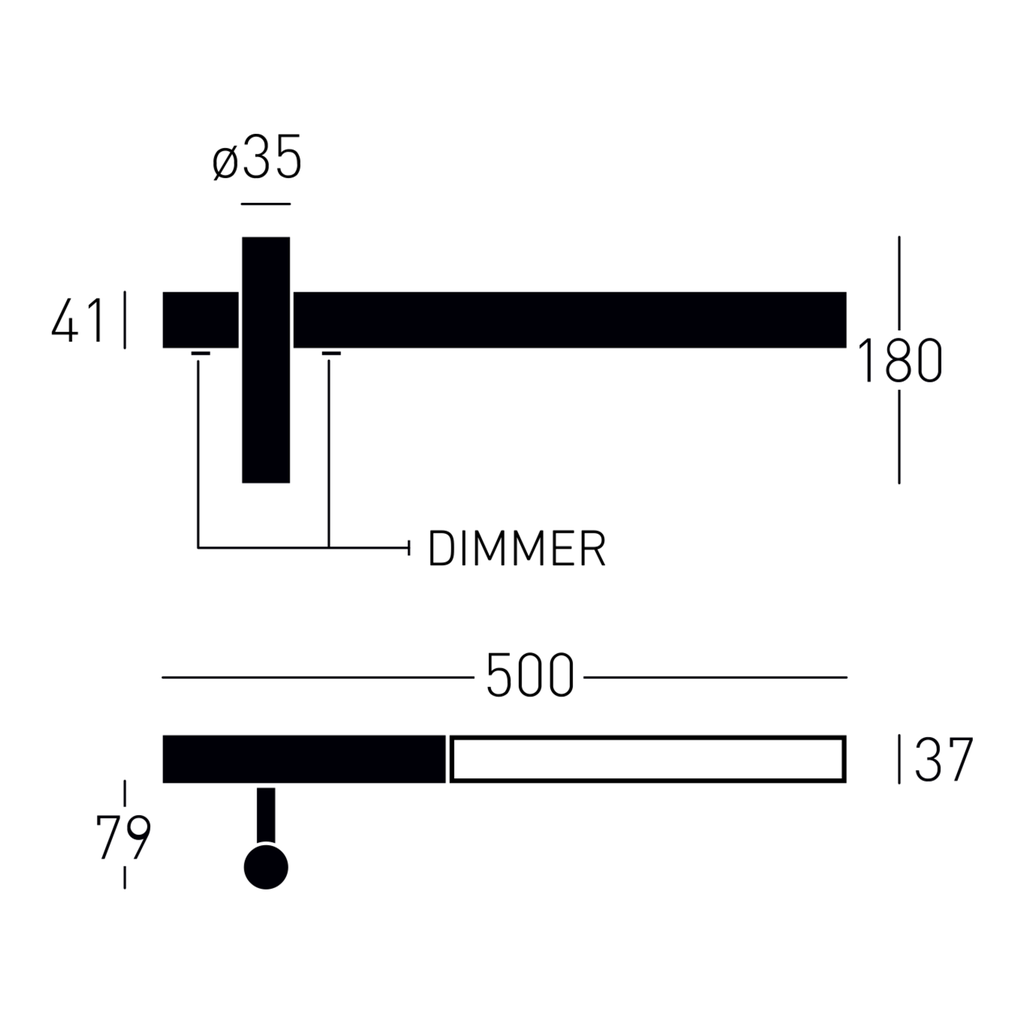

Hello K surface-mounted wall light, 2 × SLED/LED, power consumption 12.4–12.8 W, total luminous flux 1194–1325 lm, diffuse light distribution via SOFT diffuser with a beam angle of 90° upwards (wall washer) and, at the right or left end on the front, a rotatable and swivelling spotlight with an adjustable glass lens and a beam angle of approx. 15–40° (reading light; mounting side selectable when ordering), colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, built-in touch dimmer with flash memory and 30-minute sleep timer, phase-cut dimmer (TRIAC), one driver per light unit (wall wash and reading light controllable separately), connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 53.2101.* · 53.2102.* · 53.2107.* · 53.2108.* · 53.2112.* · 53.2113.* | Installation | Wall mounting |
| Protection class | IP20 | Weight | 1.2 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | LED · SLED | Power consumption | 6.4 W + 6.4 W · 6.4 W + 6 W |
| Luminous flux | 662 + 532 lm · 662 + 557 lm · 713 + 612 lm | Beam angle | > 90° + 15–40° |
| Optics | Reading light: rotatable and swivelling, adjustable genuine glass lens 15–40°; wall light: wall washer, the light grazes the wall closely upwards to the ceiling | ||
| Colour temperatures | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95 | ||
| LED module | 18 V, MacAdam Class 3 | Energy efficiency class | E · F · G |
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | DALI-2 · DIM, single circuit · DIM, dual circuit · TRIAC |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
Versions
| Item number | Model | Light colour | Power | Control | Luminous flux |
|---|---|---|---|---|---|
| 53.2101.A76 53.2101.B76 | Hello L | 2700 K | 6.4 W + 6.4 W | TRIAC DALI-2 | 662 + 532 lm |
| 53.2101.A77 53.2101.B77 | Hello L | 3000 K | 6.4 W + 6.4 W | TRIAC DALI-2 | 662 + 557 lm |
| 53.2101.A78 53.2101.B78 | Hello L | 4000 K | 6.4 W + 6 W | TRIAC DALI-2 | 713 + 612 lm |
| 53.2102.A76 53.2102.B76 | Hello R | 2700 K | 6.4 W + 6.4 W | TRIAC DALI-2 | 662 + 532 lm |
| 53.2102.A77 53.2102.B77 | Hello R | 3000 K | 6.4 W + 6.4 W | TRIAC DALI-2 | 662 + 557 lm |
| 53.2102.A78 53.2102.B78 | Hello R | 4000 K | 6.4 W + 6 W | TRIAC DALI-2 | 713 + 612 lm |
| 53.2107.U76 | Hello L I | 2700 K | 6.4 W + 6.4 W | DIM, one circuit | 662 + 532 lm |
| 53.2107.U77 | Hello L I | 3000 K | 6.4 W + 6.4 W | DIM, one circuit | 662 + 557 lm |
| 53.2107.U78 | Hello L I | 4000 K | 6.4 W + 6 W | DIM, a circuit | 713 + 612 lm |
| 53.2108.U76 | Hello R I | 2700 K | 6.4 W + 6.4 W | DIM, one circuit | 662 + 532 lm |
| 53.2108.U77 | Hello R I | 3000 K | 6.4 W + 6.4 W | DIM, one circuit | 662 + 557 lm |
| 53.2108.U78 | Hello R I | 4000 K | 6.4 W + 6 W | DIM, a circle | 713 + 612 lm |
| 53.2112.U76 | Hello L II | 2700 K | 6.4 W + 6.4 W | DIM, two circuits | 662 + 532 lm |
| 53.2112.U77 | Hello L II | 3000 K | 6.4 W + 6.4 W | DIM, two circuits | 662 + 557 lm |
| 53.2112.U78 | Hello L II | 4000 K | 6.4 W + 6 W | DIM, two circuits | 713 + 612 lm |
| 53.2113.U76 | Hello R II | 2700 K | 6.4 W + 6.4 W | DIM, two circuits | 662 + 532 lm |
| 53.2113.U77 | Hello R II | 3000 K | 6.4 W + 6.4 W | DIM, two circuits | 662 + 557 lm |
| 53.2113.U78 | Hello R II | 4000 K | 6.4 W + 6 W | DIM, two circuits | 713 + 612 lm |
