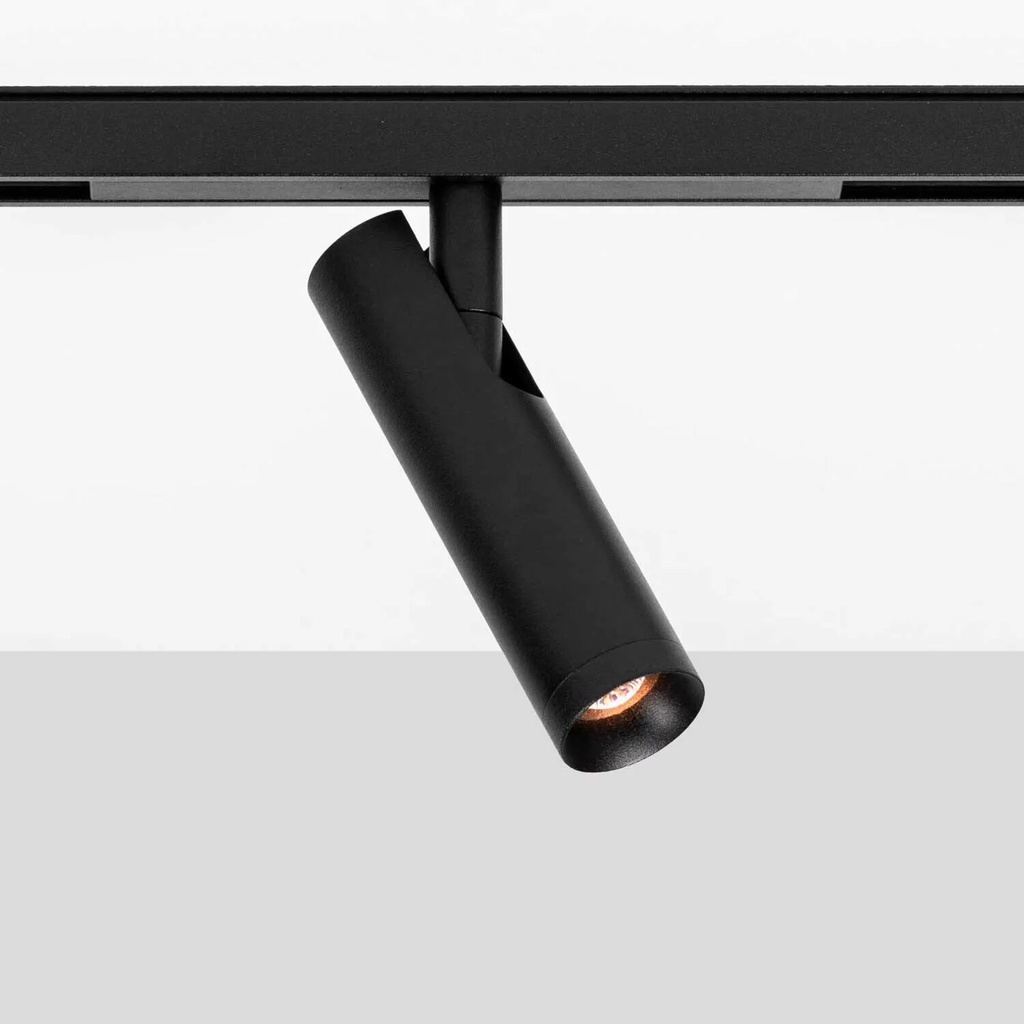

MFlask R TR48 48V track spotlight


  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
  • Rail type
Delivery time approx. 4 weeks
Item no. 56.B105.L7A.002
Add to wishlist
Contact Us
Documents
chors-mflask-r-tr48-a-installation-manual.pdf chors-mflask-r-tr48-b-installation-manual.pdf chors-mflask-r-tr48-dali-installation-manual.pdf

MFlask R TR48 48V track spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 539–555 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–40°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, switchable, track compatibility (48 V adapter for STUCCHI® Evo, transformer sold separately): Basic version (without ‘+’) ST1/ST8/ST3, version with ‘+’ ST2/ST5/ST18, 48 V DC, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number56.B105.* · 56.B106.* · 56.B107.* · 56.B108.*Installation48 V track
Protection classIP20Weight0.2–0.4 kg
LED warranty5 years
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux539 lmBeam angle15–40°
OpticsGlass lens, adjustable from 15° to 40°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply48 V DCControlDALI-2 · Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Two-tone002 black / NCS colour of choice · 060 snow white / NCS colour of choice
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelLight colourControlLuminous flux
56.B105.L7AMFlask R A TR482700 KSwitching, circuit 1539 lm
56.B105.L7BMFlask R A TR483000 KSwitch, Circuit 1539 lm
56.B105.L7CMFlask R A TR484000 KSwitch, Circuit 1539 lm
56.B105.M7AMFlask R TR482700 KDALI-2539 lm
56.B105.M7BMFlask R TR483000 KDALI-2539 lm
56.B105.M7CMFlask R TR484000 KDALI-2539 lm
56.B106.L7AMFlask R B TR482700 KSwitching, Circuit 2539 lm
56.B106.L7BMFlask R B TR483000 KSwitch, Circuit 2539 lm
56.B106.L7CMFlask R B TR484000 KSwitch, Circuit 2539 lm
56.B107.L7AMFlask R+ A TR482700 KSwitching, Circuit 1539 lm
56.B107.L7BMFlask R+ A TR483000 KSwitching, Circuit 1539 lm
56.B107.L7CMFlask R+ A TR484000 KSwitching, Circuit 1539 lm
56.B107.M7AMFlask R+ TR482700 KDALI-2539 lm
56.B107.M7BMFlask R+ TR483000 KDALI-2539 lm
56.B107.M7CMFlask R+ TR484000 KDALI-2539 lm
56.B108.L7AMFlask R+ B TR482700 KSwitching, Circuit 2539 lm
56.B108.L7BMFlask R+ B TR483000 KSwitching, Circuit 2539 lm
56.B108.L7CMFlask R+ B TR484000 KSwitch, Circuit 2539 lm
