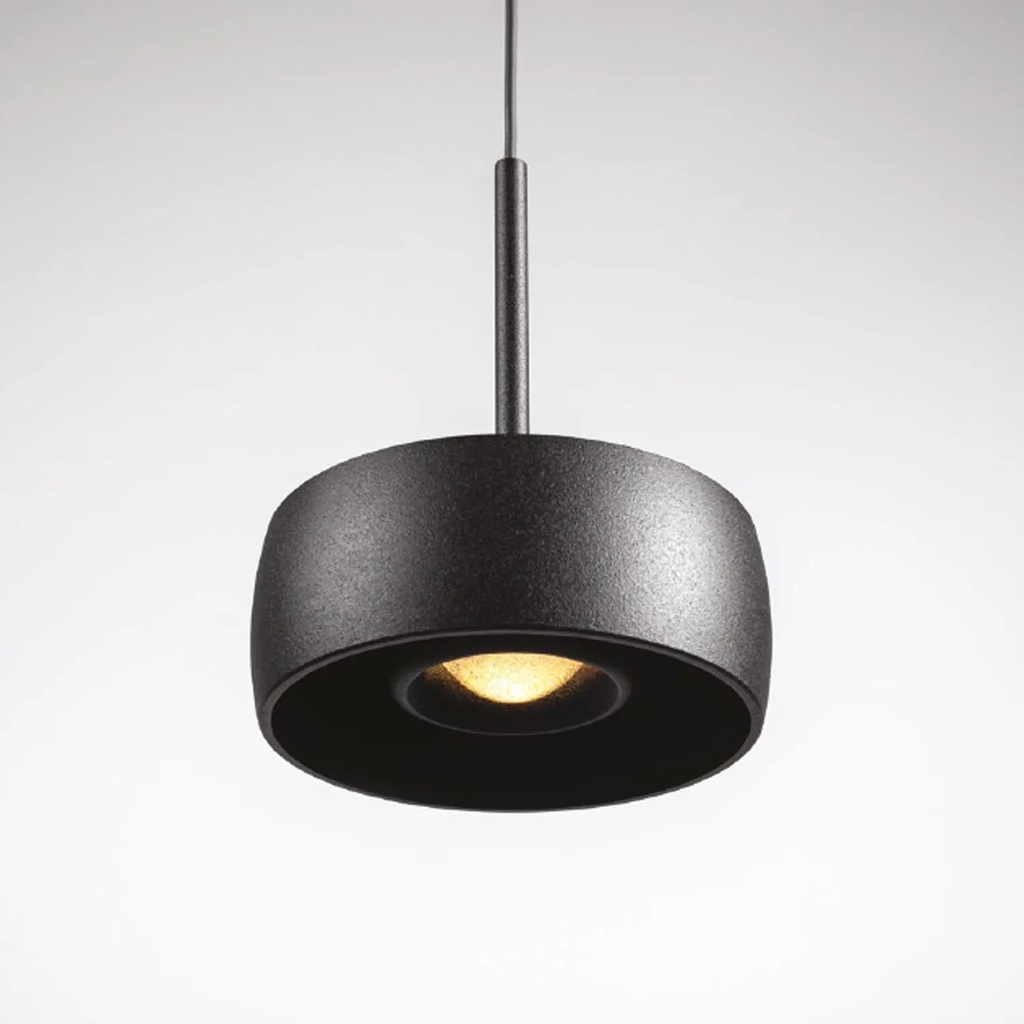

Myco One 120 ZS Pendant spotlight for SNAP system

We use AI-generated or AI-enhanced product photos.

Myco One 120 ZS Pendant spotlight for SNAP system


  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 31.9116.16A.002
Add to wishlist
Contact Us
Documents
chors-myco-one-zs-120-installation-manual.pdf chors-myco-one-zs-3d-data.zip

Myco One 120 ZS Pendant spotlight for SNAP system, 1 × SLED, power consumption 12.3 W, total luminous flux 996–1113 lm, adjustable glass lens with a beam angle of approx. 15–60°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

For installation you need a SNAP recessed ceiling rosette or a SNAP canopy (available separately). The driver is included in the scope of delivery.

Technical data

Luminaire
Item number31.9116.*InstallationSNAP System
Protection classIP20Weight1 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption12.3 W
Luminous flux996–1113 lmBeam angle15–60°
OpticsGlass lens, adjustable from 15° to 60°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply230 V, 50 HzControlDALI · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Diameter120 mm
Versions
Item numberLight colourControlLuminous flux
31.9116.16A
31.9116.26A		2700 KTRIAC
DALI		996 lm
31.9116.16B
31.9116.26B		3000 KTRIAC
DALI		1,024 lm
31.9116.16C
31.9116.26C		4000 KTRIAC
DALI		1,113 lm
