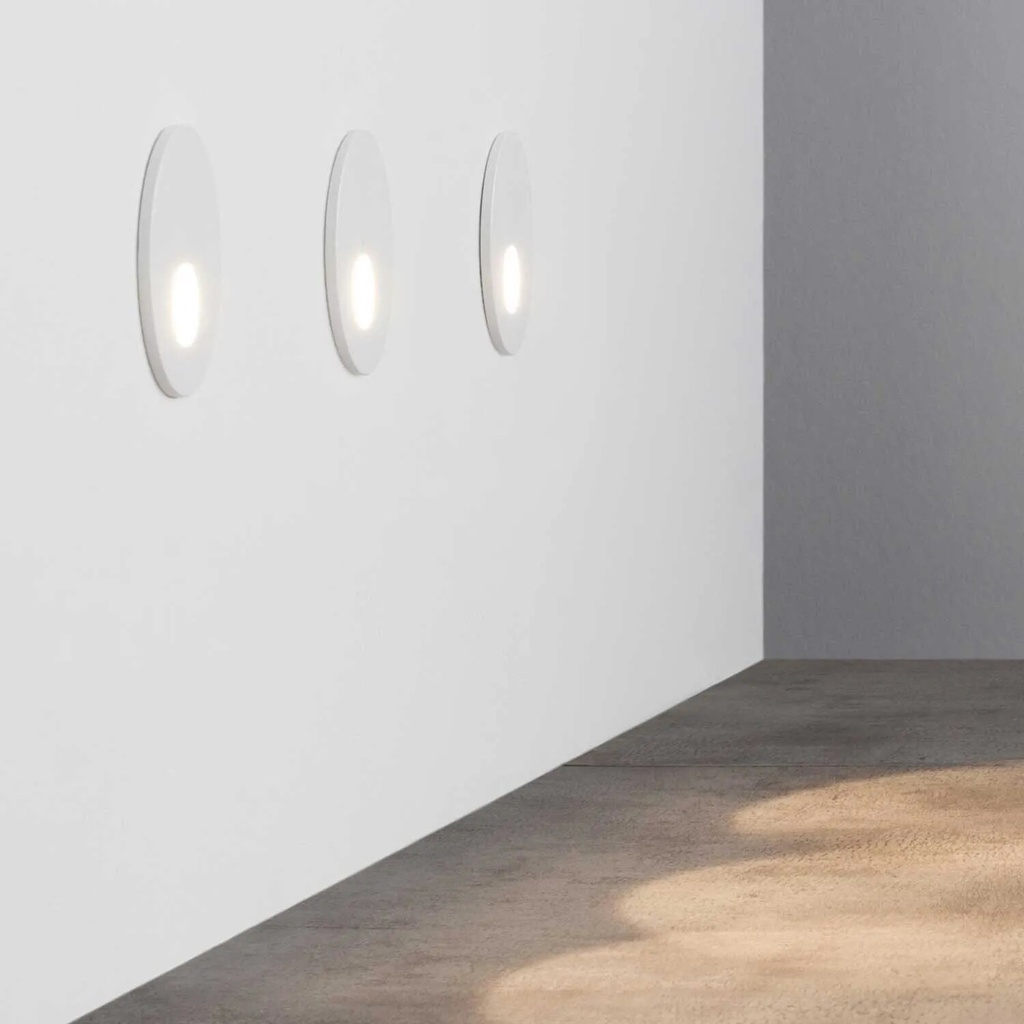

Ocu IN K recessed wall light, 1 × LED, power consumption 2 W, total luminous flux 187–217 lm, clear diffuser with beam angle >90°, colour rendering/light colour: 2700 K/CRI95, 3000 K/CRI95, 4000 K/CRI95, switchable, incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 51.2101.* | Installation | Wall mounting |
| Protection class | IP20 | Weight | 0.3 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | LED | Power consumption | 2 W |
| Luminous flux | 187–217 lm | Beam angle | > 90° |
| Optics | Clear plastic cover, bare LED, > 90° | ||
| Colour temperatures | 2700 K, CRI ≥ 95 · 3000 K, CRI ≥ 95 · 4000 K, CRI ≥ 95 | ||
| Energy efficiency class | E · F | ||
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | not dimmable |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
| Dimensions | |||
| Installation opening | fi 68 x min. 61 mm | ||
Versions
| Item number | Model | Light colour | Luminous flux |
|---|---|---|---|
| 51.2101.C06 | Ocu W | 2700 K | 187 lm |
| 51.2101.C07 | Ocu NW | 3000 K | 202 lm |
| 51.2101.C08 | Ocu | 4000 K | 217 lm |
