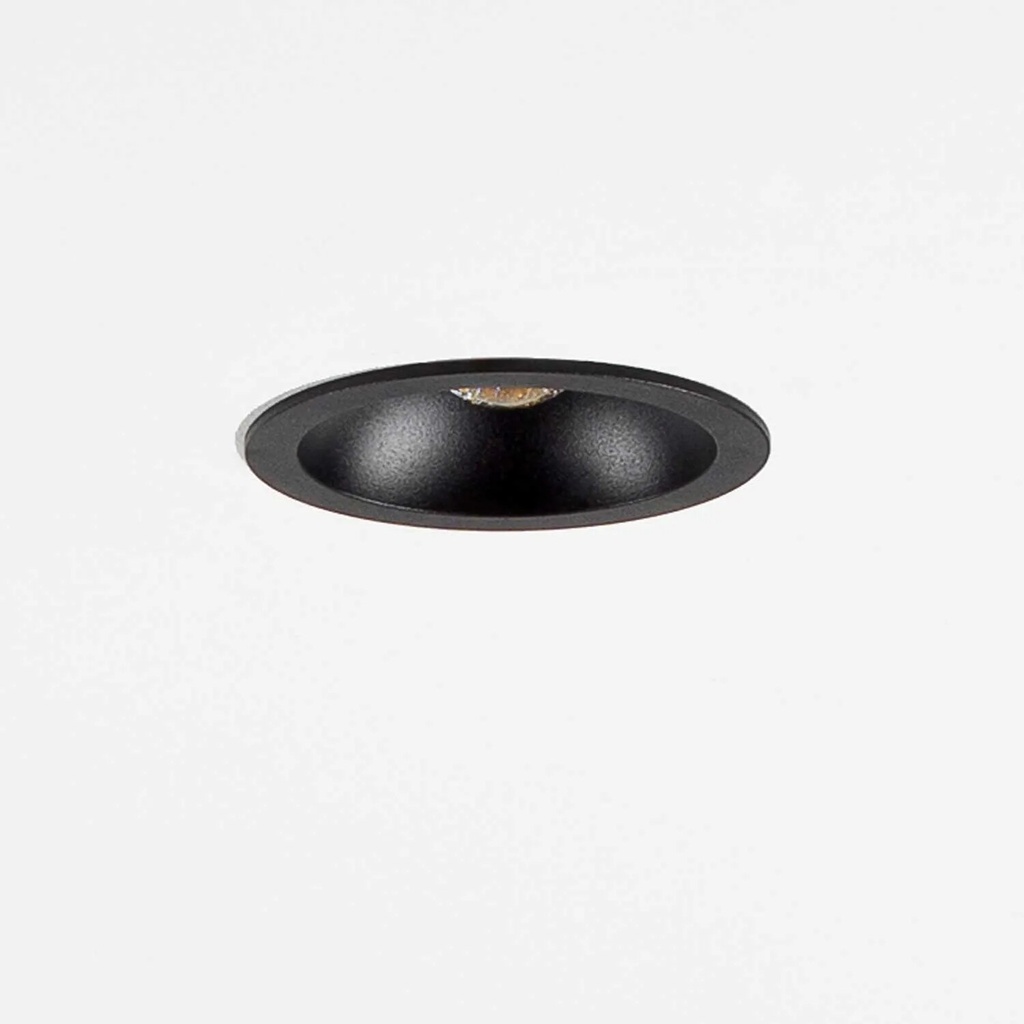

Pick Me 70 Recessed Ceiling Spotlight IP54, 1 × SLED, power consumption 6.5 W, total luminous flux 540–604 lm, fixed glass lens with a beam angle of 60°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, excluding driver, compatible drivers depending on dimming type (TRIAC/DALI-2/Casambi), one driver per luminaire when multiple luminaires are used, operating current max. 350 mA, protection rating IP54, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 35.3101.* | Installation | Recessed |
| Protection rating | IP54 | Weight | 0.3 kg |
| LED warranty | 5 years | ||
| Contents | Driver not included; one suitable driver required per light | ||
| Light | |||
| Light source | SLED | Power consumption | 6.5 W |
| Luminous flux | 540–604 lm | Beam angle | 60° |
| Optics | Fixed glass lens, 60° | ||
| Colour temperatures | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike) | ||
| LED module | 18 V, MacAdam Class 2 | Energy efficiency class | F · G |
| Electrical | |||
| Power supply | max. 350 mA DC, 18 V | Control | via the selected driver |
| Compatible drivers | TRIAC: 87.1107.B35.000 (7 W, 350 mA) · 87.1223.B35.000 (23 W, 350 mA) — DALI-2: 87.1223.C35.000 (23 W, 350 mA) — CASAMBI: 87.1323.C35.000 (23 W, 350 mA) | ||
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
Versions
| Item number | Light colour | Luminous flux |
|---|---|---|
| 35.3101.G5A | 2700 K | 540 lm |
| 35.3101.G5B | 3,000 K | 556 lm |
| 35.3101.G5C | 4,000 K | 604 lm |
