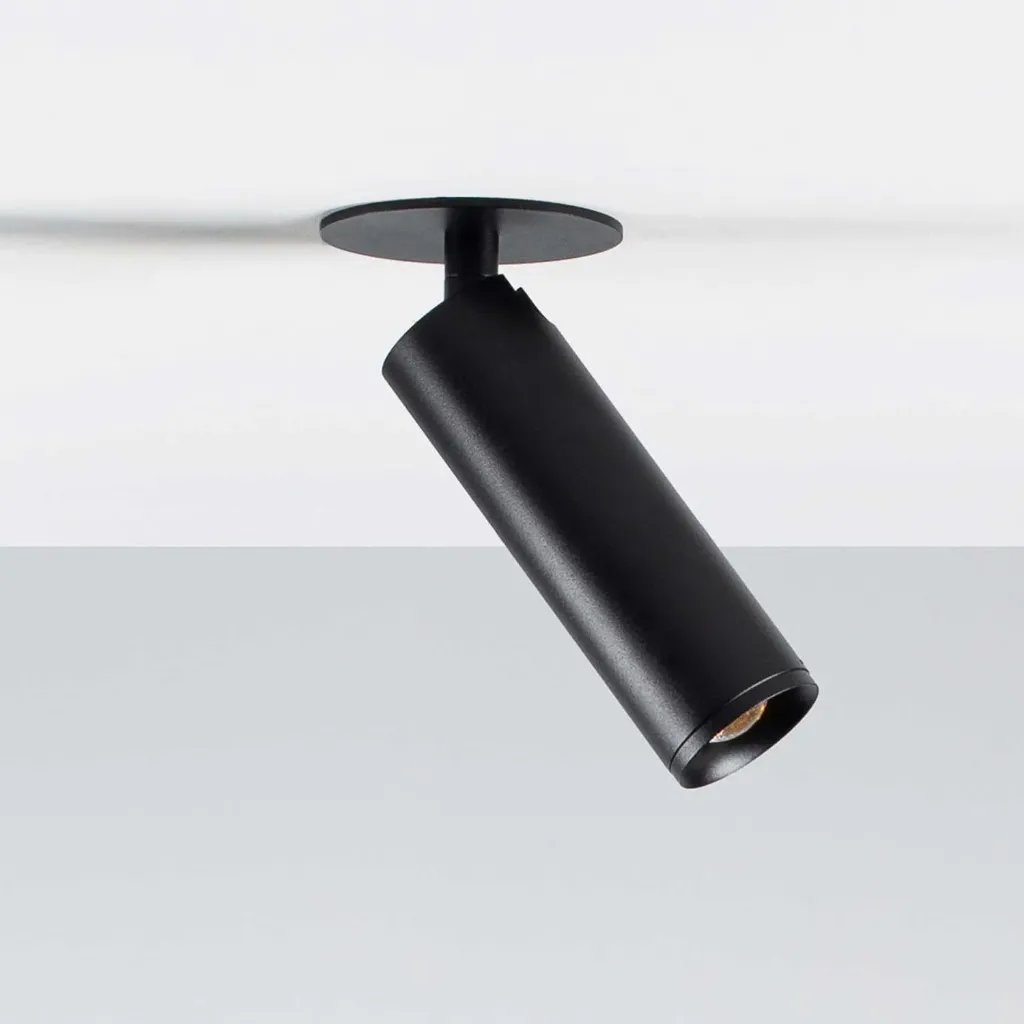

Maman R 60 IN Recessed Ceiling Spotlight

We use AI-generated or AI-enhanced product photos.

Maman R 60 IN Recessed Ceiling Spotlight


  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 39.3100.I6A.002
Add to wishlist
Contact Us
Documents
chors-maman-r-in-2-3d-data.zip chors-maman-r-in-2-installation-manual.pdf

Maman R 60 IN recessed ceiling spotlight, 1 × SLED, power consumption 12.3 W, total luminous flux 996–1113 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–60°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, driver not included, suitable drivers depending on dimming type (TRIAC/DALI-2/Casambi); for multiple luminaires, one driver per luminaire, operating current max. 350 mA, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number39.3100.*InstallationRecessed
Protection classIP20Weight0.7 kg
LED warranty5 years
ContentsDriver not included; one suitable driver required per light
Light
Light sourceSLEDPower consumption12.3 W
Luminous flux996–1113 lmBeam angle15–60°
OpticsGlass lens, adjustable from 15° to 60°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
Energy efficiency classF · G
Electrical
Power supplymax. 350 mA DC, 18 VControlvia the selected driver
Compatible driversTRIAC: 87.1115.B70.000 (15 W, 700 mA) · 87.1223.B70.000 (23 W, 700 mA) — DALI-2: 87.1223.C70.000 (23 W, 700 mA) · 87.1236.C70.000 (36 W, 700 mA) — CASAMBI: 87.1323.C70.000 (23 W, 700 mA) · 87.1344.C70.000 (44 W, 700 mA)
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of your choiceNCS or RAL as specified
Versions
Item numberLight colourLuminous flux
39.3100.I6A2700 K996 lm
39.3100.I6B3,000 K1,024 lm
39.3100.I6C4,000 K1,113 lm
