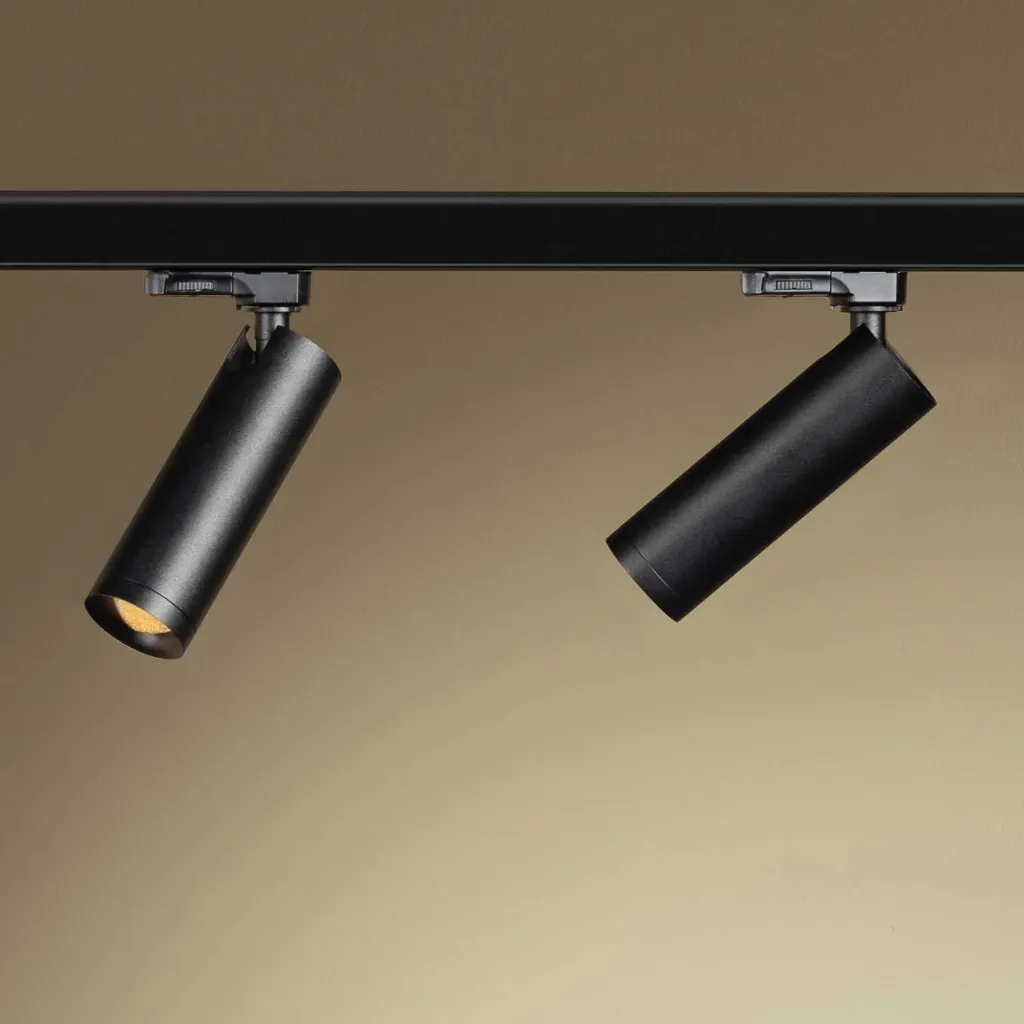

Maman R TR24 24V track spotlight

Maman R TR24 24V track spotlight, 1 × SLED, power consumption 12.3 W, total luminous flux 996–1113 lm, swivelling and tilting spotlight with adjustable glass lens and a beam angle of approx. 15–60°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, switchable, track compatibility (24 V adapter for STUCCHI® Evo, transformer sold separately): Basic version (without ‘+’) ST1/ST8/ST3, version with ‘+’ ST2/ST5/ST18, 24 V DC, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number	39.B124.* · 39.B125.* · 39.B126.* · 39.B127.*	Installation	24 V track
Protection class	IP20	Weight	0.8 kg
LED warranty	5 years
Light
Light source	SLED	Power consumption	12.3 W
Luminous flux	996–1113 lm	Beam angle	15–60°
Optics	Glass lens, adjustable from 15° to 60°
Colour temperatures	2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
Energy efficiency class	F · G
Electrical
Power supply	24 V DC	Control	Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours	002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard colours	S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choice	NCS or RAL as specified

Versions

Item number	Model	Light colour	Control	Luminous flux
39.B124.L6A	Maman R A TR24	2700 K	Switching, circuit 1	996 lm
39.B124.L6B	Maman R A TR24	3000 K	Switch, Circuit 1	1024 lm
39.B124.L6C	Maman R A TR24	4000 K	Switch, Circuit 1	1113 lm
39.B125.L6A	Maman R B TR24	2700 K	Switching, circuit 2	996 lm
39.B125.L6B	Maman R B TR24	3000 K	Switch, Circuit 2	1024 lm
39.B125.L6C	Maman R B TR24	4000 K	Switch, Circuit 2	1113 lm
39.B126.L6A	Maman R+ A TR24	2700 K	Switching, circuit 1	996 lm
39.B126.L6B	Maman R+ A TR24	3000 K	Switch, Circuit 1	1024 lm
39.B126.L6C	Maman R+ A TR24	4000 K	Switching, Circuit 1	1113 lm
39.B127.L6A	Maman R+ B TR24	2700 K	Switching, circuit 2	996 lm
39.B127.L6B	Maman R+ B TR24	3000 K	Switch, Circuit 2	1024 lm
39.B127.L6C	Maman R+ B TR24	4000 K	Switch, Circuit 2	1113 lm
