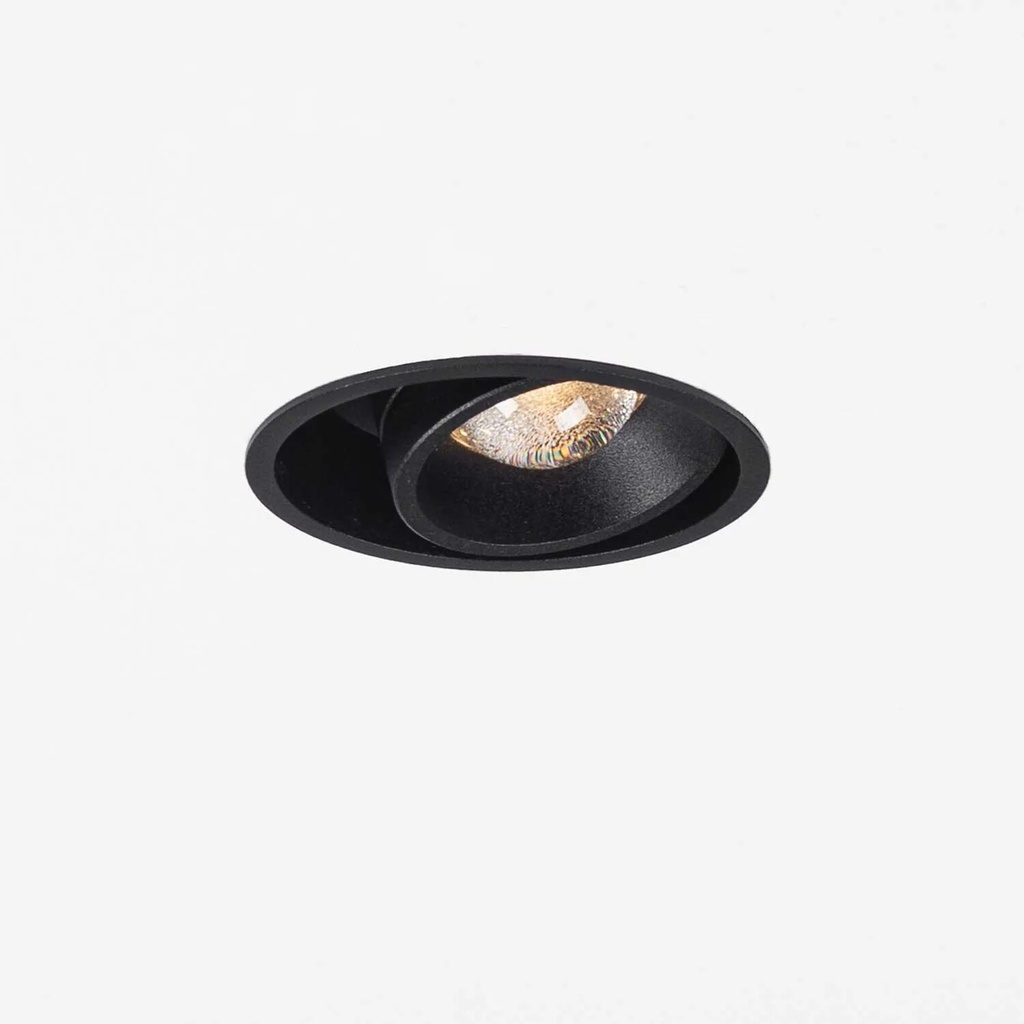

Maxime R IN-recessed ceiling spotlight

Maxime R IN recessed ceiling spotlight, 1 × SLED, 12.4 W, 996–1113 lm, 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, excluding driver (driver selectable separately), operating current max. 700 mA, protection rating IP20, 5-year LED warranty

  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 48.3125.I6A.002
Add to wishlist
Contact Us
Documents
chors-maxime-r-in-3d-data.zip chors-maxime-r-in-installation-manual.pdf chors-maxime-r-in-lichtdaten.pdf chors-maxime-r-in-2700k-zoom-21.ldt chors-maxime-r-in-2700k-zoom-56.ldt chors-maxime-r-in-3000k-zoom-21.ldt chors-maxime-r-in-3000k-zoom-56.ldt chors-maxime-r-in-4000k-zoom-21.ldt chors-maxime-r-in-4000k-zoom-56.ldt chors-maxime-r-in-photometric-data.zip

Maxime R IN recessed ceiling spotlight, 1 × SLED, power consumption 12.4 W, total luminous flux 996–1113 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–60°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, driver not included, suitable drivers for each dimming type (TRIAC/DALI-2/Casambi); for multiple luminaires, one driver per luminaire, operating current max. 700 mA, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, brushed aluminium/414, brushed steel/416, brushed old gold/435, brushed copper/444, brushed brass/445, brushed bronze/447, Custom NCS/RAL colours available; see pictogram for dimensions; 5-year LED warranty

Technical data

Light fitting
Item number48.3125.*InstallationRecessed
Protection classIP20Weight0.8 kg
LED warranty5 years
ContentsDriver not included; one suitable driver required per light
Light
Light sourceSLEDPower consumption12.4 W
Luminous flux996–1113 lmBeam angle15–60°
OpticsGlass lens, adjustable from 15° to 60°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supplymax. 700 mA DCControlvia the selected driver
Compatible driversTRIAC: 87.1115.B70.000 (15 W, 700 mA) · 87.1223.B70.000 (23 W, 700 mA) — DALI-2: 87.1223.C70.000 (23 W, 700 mA) · 87.1236.C70.000 (36 W, 700 mA) — CASAMBI: 87.1323.C70.000 (23 W, 700 mA) · 87.1344.C70.000 (44 W, 700 mA)
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Installation openingØ 95–97 mm
Versions
Item numberLight colourLuminous flux
48.3125.I6A2700 K996 lm
48.3125.I6B3000 K1,024 lm
48.3125.I6C4,000 K1,113 lm
