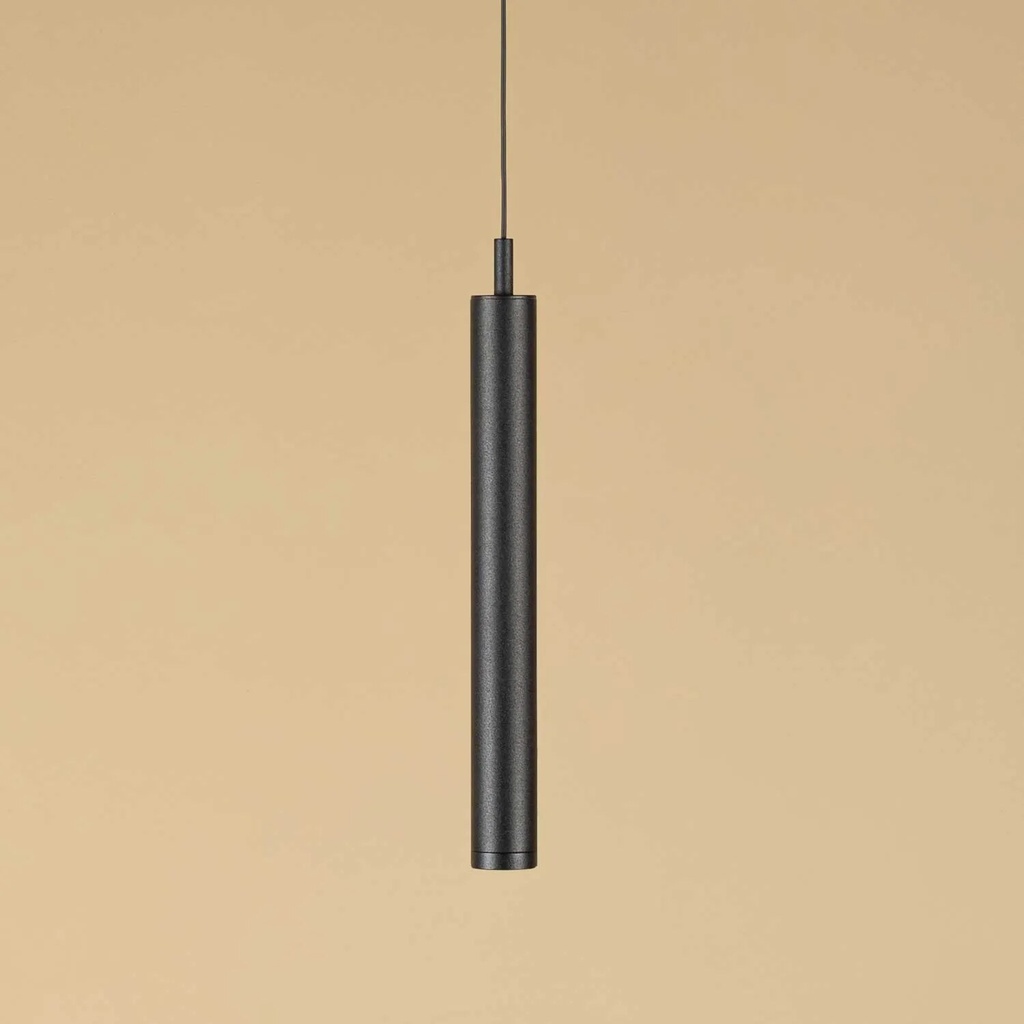

Moi Z TR48 48V track pendant spotlight

Moi Z TR48 48V track pendant spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 540–604 lm, adjustable glass lens with a beam angle of approx. 15–40°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, switchable, with 48V adapter for STUCCHI® Evo ST1/ST8/ST3 (transformer sold separately), 48 V DC, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, brushed aluminium/414, brushed steel/416, brushed antique gold/435, brushed copper/444, brushed brass/445, brushed bronze/447, Custom NCS/RAL colours available; see pictogram for dimensions; 5-year LED warranty

Technical data

Light fitting
Item number	15.B150.* · 15.B151.* · 15.B152.* · 15.B153.* · 15.B154.* · 15.B155.* · 15.B156.* · 15.B157.*	Installation	48 V track
Protection class	IP20	Weight	0.3–0.9 kg
LED warranty	5 years
Light
Light source	SLED	Power consumption	6.5 W
Luminous flux	540–604 lm	Beam angle	15–40°
Optics	Glass lens, adjustable from 15° to 40°
Colour temperatures	2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module	18 V, MacAdam Class 2	Energy efficiency class	F · G
Electrical
Power supply	48 V DC	Control	DALI-2 · Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours	002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic	414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard colours	S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choice	NCS or RAL as specified

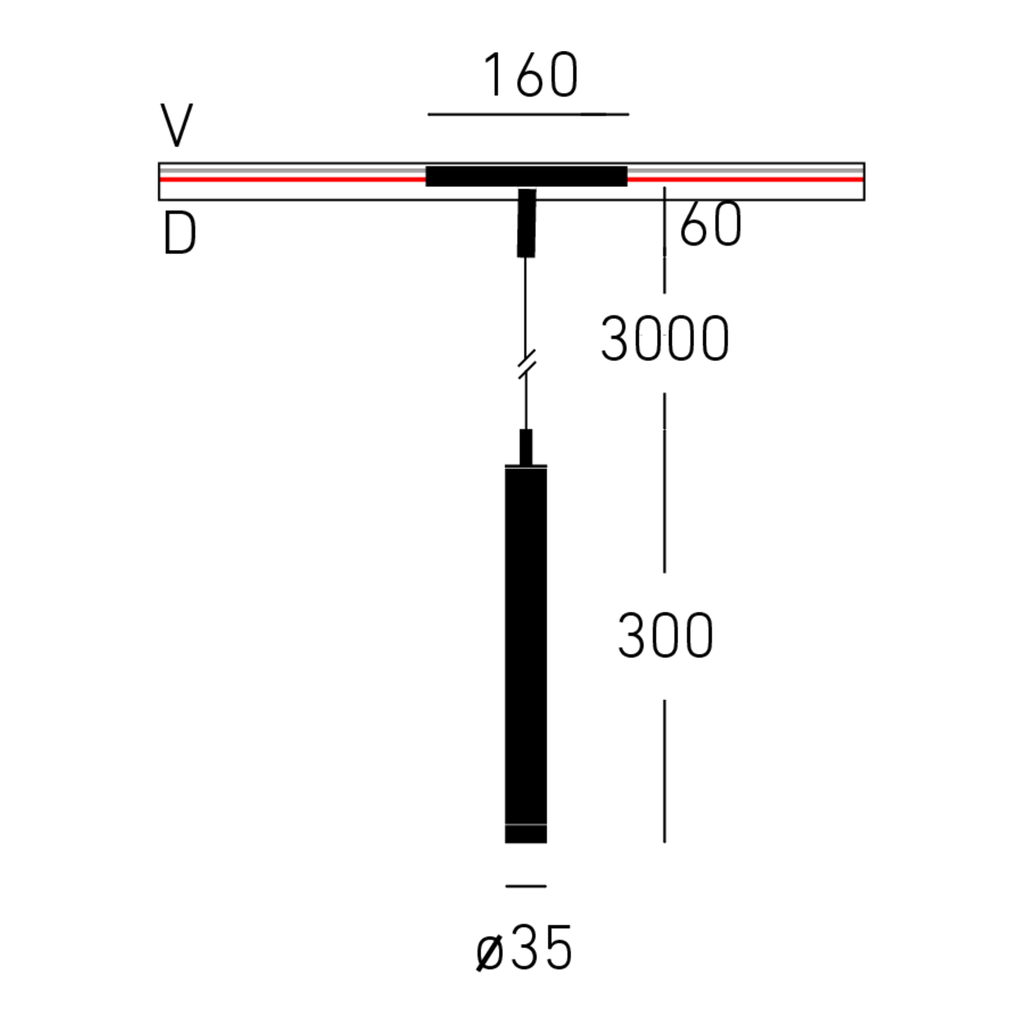

Dimensions
Length	300 mm

Versions

Item number	Model	Light colour	Control	Luminous flux
15.B150.L7A	Moi 30 Z A TR48	2700 K	Switching, circuit 1	540 lm
15.B150.L7B	Moi 30 Z A TR48	3000 K	Switch, Circuit 1	556 lm
15.B150.L7C	Moi 30 Z A TR48	4000 K	Switch, Circuit 1	604 lm
15.B150.M7A	Moi 30 Z TR48	2700 K	DALI-2	540 lm
15.B150.M7B	Moi 30 Z TR48	3000 K	DALI-2	556 lm
15.B150.M7C	Moi 30 Z TR48	4000 K	DALI-2	604 lm
15.B151.L7A	Moi 30 Z B TR48	2700 K	Switching, Circuit 2	540 lm
15.B151.L7B	Moi 30 Z B TR48	3000 K	Switch, Circuit 2	556 lm
15.B151.L7C	Moi 30 Z B TR48	4000 K	Switch, Circuit 2	604 lm
15.B152.L7A	Moi 60 Z A TR48	2700 K	Switch, circuit 1	540 lm
15.B152.L7B	Moi 60 Z A TR48	3000 K	Switch, Circuit 1	556 lm
15.B152.L7C	Moi 60 Z A TR48	4000 K	Switch, Circuit 1	604 lm
15.B152.M7A	Moi 60 Z TR48	2700 K	DALI-2	540 lm
15.B152.M7B	Moi 60 Z TR48	3000 K	DALI-2	556 lm
15.B152.M7C	Moi 60 Z TR48	4000 K	DALI-2	604 lm
15.B153.L7A	Moi 60 Z B TR48	2700 K	Switching, Circuit 2	540 lm
15.B153.L7B	Moi 60 Z B TR48	3000 K	Switch, Circuit 2	556 lm
15.B153.L7C	Moi 60 Z B TR48	4000 K	Switch, Circuit 2	604 lm
15.B154.L7A	Moi 90 Z A TR48	2700 K	Switch, circuit 1	540 lm
15.B154.L7B	Moi 90 Z A TR48	3000 K	Switch, Circuit 1	556 lm
15.B154.L7C	Moi 90 Z A TR48	4000 K	Switch, Circuit 1	604 lm
15.B154.M7A	Moi 90 Z TR48	2700 K	DALI-2	540 lm
15.B154.M7B	Moi 90 Z TR48	3000 K	DALI-2	556 lm
15.B154.M7C	Moi 90 Z TR48	4000 K	DALI-2	604 lm
15.B155.L7A	Moi 90 Z B TR48	2700 K	Switching, Circuit 2	540 lm
15.B155.L7B	Moi 90 Z B TR48	3000 K	Switch, Circuit 2	556 lm
15.B155.L7C	Moi 90 Z B TR48	4000 K	Switch, Circuit 2	604 lm
15.B156.L7A	Moi Z A TR48	2700 K	Switch, circuit 1	540 lm
15.B156.L7B	Moi Z A TR48	3000 K	Switch, Circuit 1	556 lm
15.B156.L7C	Moi Z A TR48	4000 K	Switch, Circuit 1	604 lm
15.B156.M7A	Moi Z TR48	2700 K	DALI-2	540 lm
15.B156.M7B	Moi Z TR48	3000 K	DALI-2	556 lm
15.B156.M7C	Moi Z TR48	4000 K	DALI-2	604 lm
15.B157.L7A	Moi Z B TR48	2700 K	Switching, Circuit 2	540 lm
15.B157.L7B	Moi Z B TR48	3000 K	Switch, Circuit 2	556 lm
15.B157.L7C	Moi Z B TR48	4000 K	Switch, Circuit 2	604 lm
