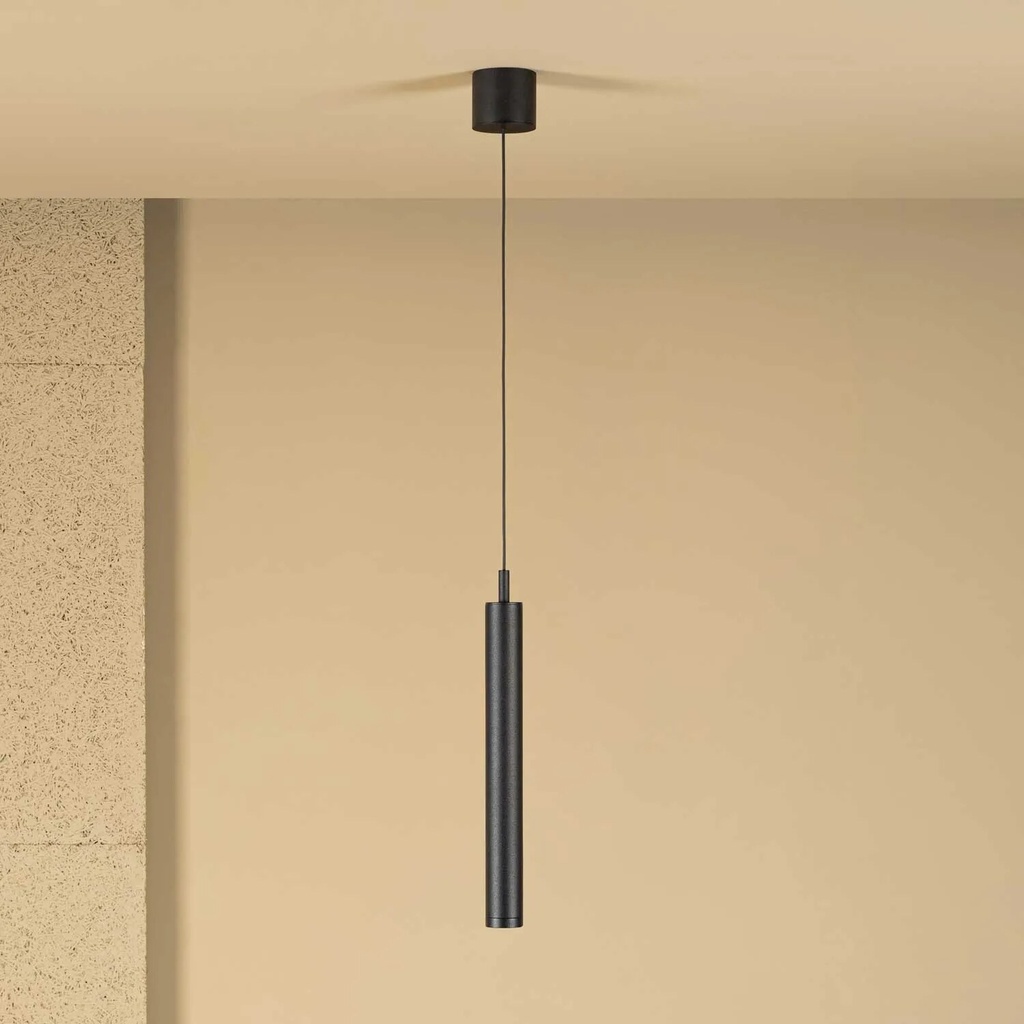

Moi Z Ceiling Pendant Spotlight


  • Length
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 15.4106.17A.002
Add to wishlist
Contact Us
Documents
chors-moi-z-3d-data.zip chors-moi-z-installation-manual.pdf chors-moi-z-lichtdaten.pdf chors-moi-z-2700k.ldt chors-moi-z-3000k.ldt chors-moi-z-4000k.ldt chors-moi-z-photometric-data.zip

Moi Z pendant spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 540–604 lm, adjustable glass lens with a beam angle of approx. 15–40°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, with universal ceiling rose, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, brushed aluminium/414, brushed steel/416, brushed antique gold/435, brushed copper/444, brushed brass/445, brushed bronze/447, Custom NCS/RAL colours available; see pictogram for dimensions; 5-year LED warranty

Technical data

Light fitting
Item number15.4106.* · 15.4107.* · 15.4108.* · 15.4109.*Installationpendant light
Protection classIP20Weight0.6–1.2 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux540–604 lmBeam angle15–40°
OpticsGlass lens, adjustable from 15° to 40°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Length300–1200 mm
Variants
Item numberModelLight colourControlLuminous flux
15.4106.17A
15.4106.27A		Moi 30 Z U2700 KTRIAC
DALI-2		540 lm
15.4106.17B
15.4106.27B		Moi 30 Z U3,000 KTRIAC
DALI-2		556 lm
15.4106.17C
15.4106.27C		Moi 30 Z U4,000 KTRIAC
DALI-2		604 lm
15.4107.17A
15.4107.27A		Moi 60 Z U2,700 KTRIAC
DALI-2		540 lm
15.4107.17B
15.4107.27B		Moi 60 Z U3000 KTRIAC
DALI-2		556 lm
15.4107.17C
15.4107.27C		Moi 60 Z U4,000 KTRIAC
DALI-2		604 lm
15.4108.17A
15.4108.27A		Moi 90 Z U2,700 KTRIAC
DALI-2		540 lm
15.4108.17B
15.4108.27B		Moi 90 Z U3000 KTRIAC
DALI-2		556 lm
15.4108.17C
15.4108.27C		Moi 90 Z U4,000 KTRIAC
DALI-2		604 lm
15.4109.17A
15.4109.27A		Moi Z U2,700 KTRIAC
DALI-2		540 lm
15.4109.17B
15.4109.27B		Moi Z U3000 KTRIAC
DALI-2		556 lm
15.4109.17C
15.4109.27C		Moi Z U4000 KTRIAC
DALI-2		604 lm
