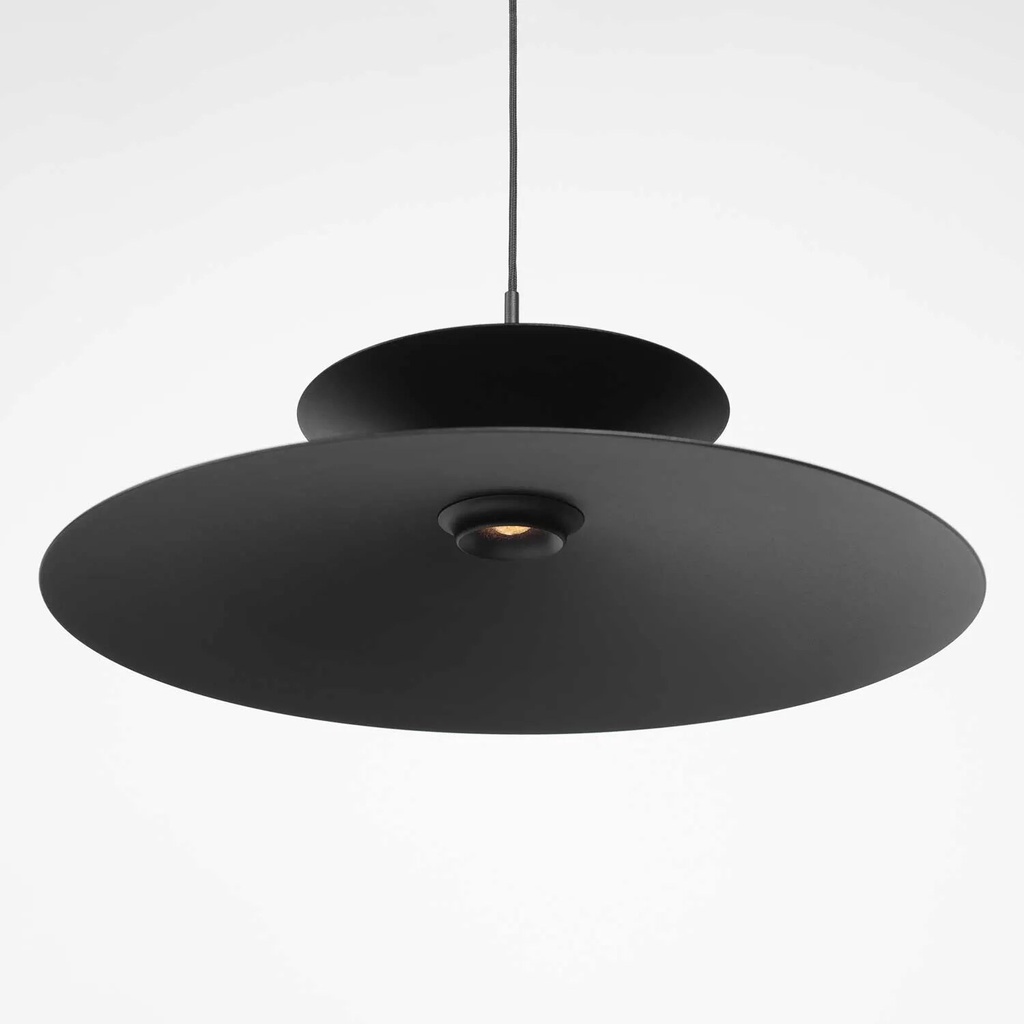

Moonlight Z ceiling pendant spotlight, 2 × SLED, power consumption 19.5 W, total luminous flux 1626–1788 lm, diffuse/indirect light distribution with SOFT diffuser with a beam angle >90° upwards, directional light distribution with a fixed glass lens with a beam angle of 60° downwards, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI 98, 4000 K/CRI 98, control options: DALI-2, phase-cut dimmer (TRIAC), including two separate drivers for independent control of the upper and lower luminaire sections, fabric cable, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 34.4101.* · 34.4102.* · 34.4103.* | Installation | pendant light |
| Protection class | IP20 | Weight | 2 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | SLED | Power consumption | 7.2/12.3 W |
| Luminous flux | 630+1024 lm · 630+996 lm · 675+1113 lm | Beam angle | > 90° / 60° |
| Optics | Downwards: 60° glass lens onto the table; upwards: SOFT diffuser (opal) towards the ceiling. Two drivers in the canopy, up and down light controllable separately | ||
| Colour temperatures | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike) | ||
| Energy efficiency class | F · G | ||
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | DALI-2 · TRIAC |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
Versions
| Item number | Model | Light colour | Control | Luminous flux |
|---|---|---|---|---|
| 34.4101.ADA 34.4101.BDA | Moonlight A Z | 2700 K | TRIAC DALI-2 | 630+996 lm |
| 34.4101.ADB 34.4101.BDB | Moonlight A Z | 3000 K | TRIAC DALI-2 | 630+1024 lm |
| 34.4101.ADC 34.4101.BDC | Moonlight A–Z | 4000 K | TRIAC DALI-2 | 675+1113 lm |
| 34.4102.ADA 34.4102.BDA | Moonlight B Z | 2700 K | TRIAC DALI-2 | 630+996 lm |
| 34.4102.ADB 34.4102.BDB | Moonlight B Z | 3000 K | TRIAC DALI-2 | 630+1024 lm |
| 34.4102.ADC 34.4102.BDC | Moonlight B Z | 4000 K | TRIAC DALI-2 | 675+1113 lm |
| 34.4103.ADA 34.4103.BDA | Moonlight C Z | 2,700 K | TRIAC DALI-2 | 630+996 lm |
| 34.4103.ADB 34.4103.BDB | Moonlight C Z | 3000 K | TRIAC DALI-2 | 630+1024 lm |
| 34.4103.ADC 34.4103.BDC | Moonlight C Z | 4000 K | TRIAC DALI-2 | 675+1113 lm |
