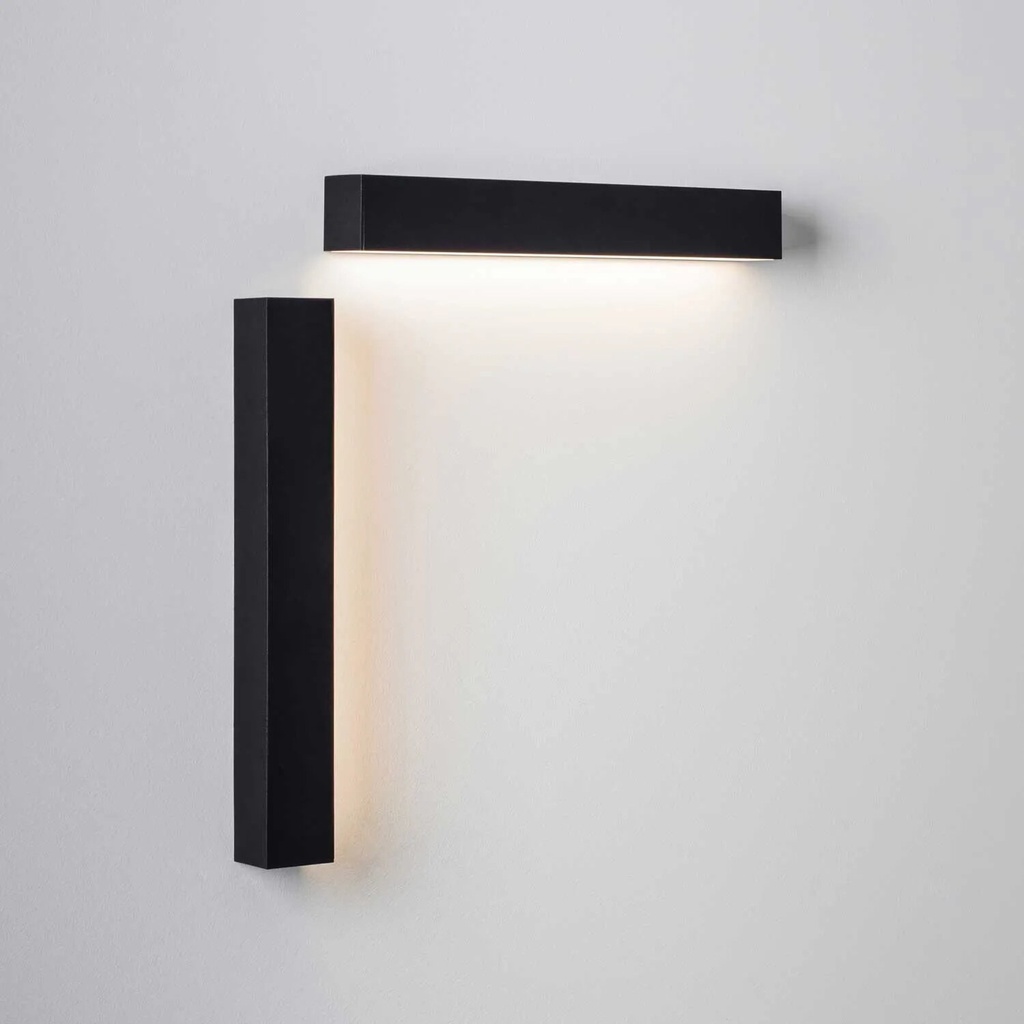

Luminaria de superficie para pared Thiny Slim K, 1 × SLED/LED, consumo de potencia 6,3–31,5 W, flujo luminoso total 504–3565 lm, difusores a elegir: SOFT (difusor opalino), ángulo de haz >90° con una pérdida de potencia del 30 %, PR (prismático), ángulo de haz de 60° con una pérdida de potencia del 8 %, SPR (semiprismático), ángulo de emisión de 60° con una pérdida de potencia del 10 %, PR/SPR alcanzan un UGR <= 19 y cumplen la norma DIN EN 12464-1/-2, reproducción cromática/color de la luz: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, opciones de control: DALI-2, conmutable, con alimentador incluido, conexión a 230 V CA/50 Hz, grado de protección IP44, acabados: negro/RAL9005/002, blanco/RAL9010/003, grafito/RAL7015/006, blanco nieve/RAL9016/060, gris aluminio/RAL9006/101, posibilidad de color NCS/RAL a elegir, dimensiones: véase el pictograma, garantía de los LED: 5 años
Datos técnicos
| Luminaria | |||
|---|---|---|---|
| N.º de artículo | 22.2101.* · 22.2102.* · 22.2103.* · 22.2104.* · 22.2105.* | Montaje | Montaje en pared |
| Índice de protección | IP44 | Peso | 0,6–1,4 kg |
| Garantía del LED | 5 años | ||
| Contenido del envío | Controlador integrado | ||
| Luz | |||
| Fuente de luz | LED · SLED | Consumo de potencia | 6,3 W · 12,6 W · 18,9 W · 25,2 W · 31,5 W |
| Flujo luminoso | 504–3565 lm | Ángulo de emisión | 60° · > 90° |
| Óptica | SOFT: difusor opalino, > 90°, 30 % de pérdida de potencia PR: prismático, 60°, 8 % de pérdida de potencia, UGR ≤ 19 SPR: semiprismático, 60°, 10 % de pérdida de potencia, UGR ≤ 19 | ||
| Temperaturas de color | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95 | ||
| Módulo LED | 18 V, nivel MacAdam 3 | Clase de eficiencia energética | E · F |
| Sistema eléctrico | |||
| Alimentación | 230 V, 50 Hz | Control | DALI-2 · no regulable |
| Acabados | |||
| Colores estándar | 002 negro RAL 9005 · 003 blanco RAL 9010 · 006 grafito RAL 7015 · 060 blanco nieve RAL 9016 · 101 gris aluminio RAL 9006/9007 | ||
| Colores estándar NCS | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Color a elegir | NCS o RAL según especificaciones | ||
| Dimensiones | |||
| Longitud | 300–1500 mm | ||
Modelos
| N.º de artículo | Modelo | Aspecto | Color de la luz | Potencia | Ángulo | Control | Flujo luminoso |
|---|---|---|---|---|---|---|---|
| 22.2101.J16 22.2101.T16 | Thiny Slim 30 K | SOFT | 2700 K | 6,3 W | > 90° | no regulable DALI-2 | 504 lm |
| 22.2101.J17 22.2101.T17 | Thiny Slim 30 K | SOFT | 3000 K | 6,3 W | > 90° | no regulable DALI-2 | 504 lm |
| 22.2101.J18 22.2101.T18 | Thiny Slim 30 K | SOFT | 4000 K | 6,3 W | > 90° | no regulable DALI-2 | 543 lm |
| 22.2101.J26 22.2101.T26 | Thiny Slim 30 K | PR | 2700 K | 6,3 W | 60° | no regulable DALI-2 | 663 lm |
| 22.2101.J27 22.2101.T27 | Thiny Slim 30 K | PR | 3000 K | 6,3 W | 60° | no regulable DALI-2 | 663 lm |
| 22.2101.J28 22.2101.T28 | Thiny Slim 30 K | PR | 4000 K | 6,3 W | 60° | no regulable DALI-2 | 713 lm |
| 22.2101.J36 22.2101.T36 | Thiny Slim 30 K | SPR | 2700 K | 6,3 W | 60° | no regulable DALI-2 | 648 lm |
| 22.2101.J37 22.2101.T37 | Thiny Slim 30 K | SPR | 3000 K | 6,3 W | 60° | no regulable DALI-2 | 648 lm |
| 22.2101.J38 22.2101.T38 | Thiny Slim 30 K | SPR | 4000 K | 6,3 W | 60° | no regulable DALI-2 | 698 lm |
| 22.2102.J16 22.2102.T16 | Thiny Slim 60 K | SOFT | 2700 K | 12,6 W | > 90° | no regulable DALI-2 | 1008 lm |
| 22.2102.J17 22.2102.T17 | Thiny Slim 60 K | SOFT | 3000 K | 12,6 W | > 90° | no regulable DALI-2 | 1008 lm |
| 22.2102.J18 22.2102.T18 | Thiny Slim 60 K | SOFT | 4000 K | 12,6 W | > 90° | no regulable DALI-2 | 1090 lm |
| 22.2102.J26 22.2102.T26 | Thiny Slim 60 K | PR | 2700 K | 12,6 W | 60° | no regulable DALI-2 | 1325 lm |
| 22.2102.J27 22.2102.T27 | Thiny Slim 60 K | PR | 3000 K | 12,6 W | 60° | no regulable DALI-2 | 1325 lm |
| 22.2102.J28 22.2102.T28 | Thiny Slim 60 K | PR | 4000 K | 12,6 W | 60° | no regulable DALI-2 | 1426 lm |
| 22.2102.J36 22.2102.T36 | Thiny Slim 60 K | SPR | 2700 K | 12,6 W | 60° | no regulable DALI-2 | 1296 lm |
| 22.2102.J37 22.2102.T37 | Thiny Slim 60 K | SPR | 3000 K | 12,6 W | 60° | no regulable DALI-2 | 1296 lm |
| 22.2102.J38 22.2102.T38 | Thiny Slim 60 K | SPR | 4000 K | 12,6 W | 60° | no regulable DALI-2 | 1395 lm |
| 22.2103.J16 22.2103.T16 | Thiny Slim 90 K | SOFT | 2700 K | 18,9 W | > 90° | no regulable DALI-2 | 1512 lm |
| 22.2103.J17 22.2103.T17 | Thiny Slim 90 K | SOFT | 3000 K | 18,9 W | > 90° | no regulable DALI-2 | 1512 lm |
| 22.2103.J18 22.2103.T18 | Thiny Slim 90 K | SOFT | 4000 K | 18,9 W | > 90° | no regulable DALI-2 | 1628 lm |
| 22.2103.J26 22.2103.T26 | Thiny Slim 90 K | PR | 2700 K | 18,9 W | 60° | no regulable DALI-2 | 1988 lm |
| 22.2103.J27 22.2103.T27 | Thiny Slim 90 K | PR | 3000 K | 18,9 W | 60° | no regulable DALI-2 | 1988 lm |
| 22.2103.J28 22.2103.T28 | Thiny Slim 90 K | PR | 4000 K | 18,9 W | 60° | no regulable DALI-2 | 2139 lm |
| 22.2103.J36 22.2103.T36 | Thiny Slim 90 K | SPR | 2700 K | 18,9 W | 60° | no regulable DALI-2 | 1944 lm |
| 22.2103.J37 22.2103.T37 | Thiny Slim 90 K | SPR | 3000 K | 18,9 W | 60° | no regulable DALI-2 | 1944 lm |
| 22.2103.J38 22.2103.T38 | Thiny Slim 90 K | SPR | 4000 K | 18,9 W | 60° | no regulable DALI-2 | 2093 lm |
| 22.2104.J16 22.2104.T16 | Thiny Slim K | SOFT | 2700 K | 25,2 W | > 90° | no regulable DALI-2 | 2016 lm |
| 22.2104.J17 22.2104.T17 | Thiny Slim K | SOFT | 3000 K | 25,2 W | > 90° | no regulable DALI-2 | 2016 lm |
| 22.2104.J18 22.2104.T18 | Thiny Slim K | SOFT | 4000 K | 25,2 W | > 90° | no regulable DALI-2 | 2170 lm |
| 22.2104.J26 22.2104.T26 | Thiny Slim K | PR | 2700 K | 25,2 W | 60° | no regulable DALI-2 | 2650 lm |
| 22.2104.J27 22.2104.T27 | Thiny Slim K | PR | 3000 K | 25,2 W | 60° | no regulable DALI-2 | 2650 lm |
| 22.2104.J28 22.2104.T28 | Thiny Slim K | PR | 4000 K | 25,2 W | 60° | no regulable DALI-2 | 2852 lm |
| 22.2104.J36 22.2104.T36 | Thiny Slim K | SPR | 2700 K | 25,2 W | 60° | no regulable DALI-2 | 2592 lm |
| 22.2104.J37 22.2104.T37 | Thiny Slim K | SPR | 3000 K | 25,2 W | 60° | no regulable DALI-2 | 2592 lm |
| 22.2104.J38 22.2104.T38 | Thiny Slim K | SPR | 4000 K | 25,2 W | 60° | no regulable DALI-2 | 2790 lm |
| 22.2105.J16 22.2105.T16 | Thiny Slim K | SOFT | 2700 K | 31,5 W | > 90° | no regulable DALI-2 | 2520 lm |
| 22.2105.J17 22.2105.T17 | Thiny Slim K | SOFT | 3000 K | 31,5 W | > 90° | no regulable DALI-2 | 2520 lm |
| 22.2105.J18 22.2105.T18 | Thiny Slim K | SOFT | 4000 K | 31,5 W | > 90° | no regulable DALI-2 | 2713 lm |
| 22.2105.J26 22.2105.T26 | Thiny Slim K | PR | 2700 K | 31,5 W | 60° | no regulable DALI-2 | 3312 lm |
| 22.2105.J27 22.2105.T27 | Thiny Slim K | PR | 3000 K | 31,5 W | 60° | no regulable DALI-2 | 3312 lm |
| 22.2105.J28 22.2105.T28 | Thiny Slim K | PR | 4000 K | 31,5 W | 60° | no regulable DALI-2 | 3565 lm |
| 22.2105.J36 22.2105.T36 | Thiny Slim K | SPR | 2700 K | 31,5 W | 60° | no regulable DALI-2 | 3240 lm |
| 22.2105.J37 22.2105.T37 | Thiny Slim K | SPR | 3000 K | 31,5 W | 60° | no regulable DALI-2 | 3240 lm |
| 22.2105.J38 22.2105.T38 | Thiny Slim K | SPR | 4000 K | 31,5 W | 60° | no regulable DALI-2 | 3488 lm |
