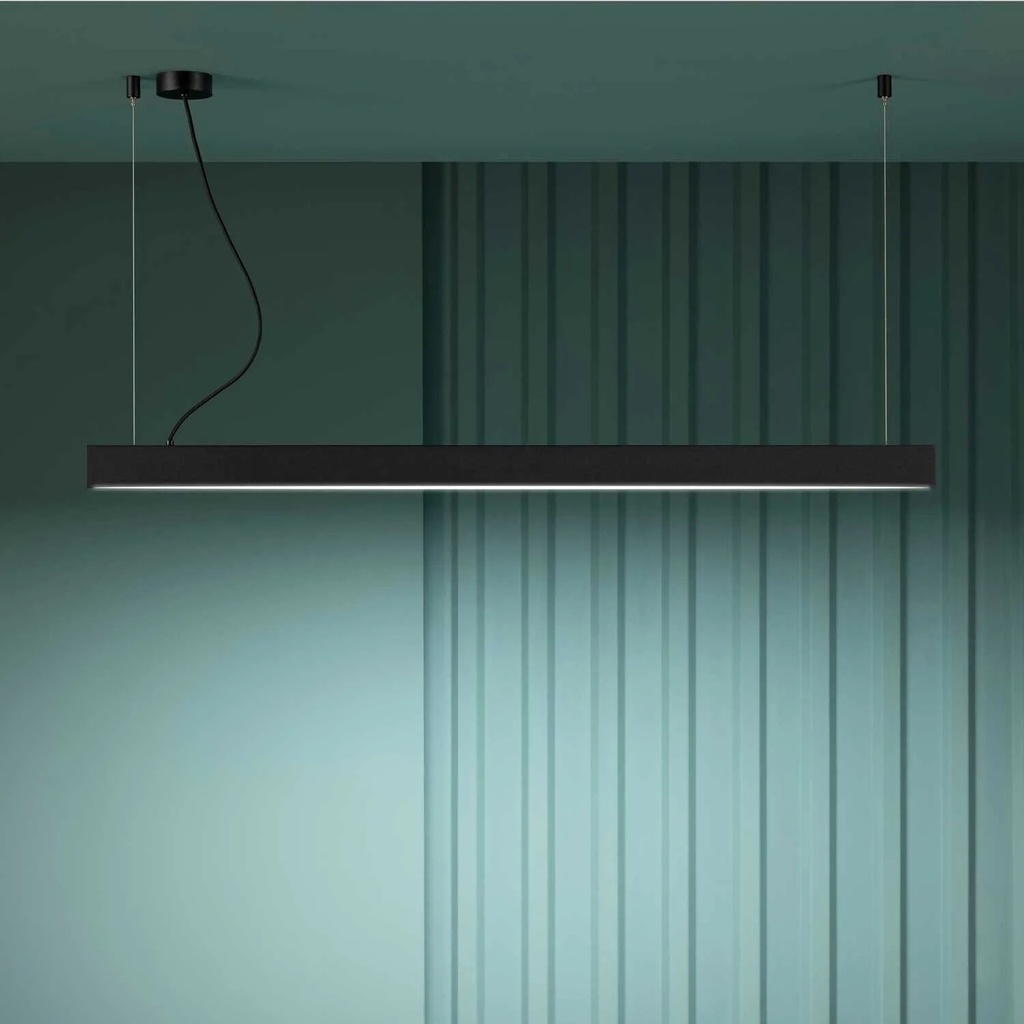

Accent Z Ceiling pendant light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 41.4102.D16.002
Add to wishlist
Contact Us
Documents
chors-accent-z-3d-data.zip chors-accent-z-installation-manual.pdf

Accent Z ceiling pendant light, 1 × SLED/LED, power consumption 25.2–63 W, total luminous flux 2016–7130 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power loss, PR (prismatic), beam angle 60° at 8% power loss, SPR (semi-prismatic), beam angle 60° at 10% power loss, PR/SPR achieve UGR <= 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number41.4102.* · 41.4103.* · 41.4104.* · 41.4105.*Installationpendant light
Protection classIP20Weight1.1–2 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption25.2 W · 37.8 W · 50.4 W · 63 W
Luminous flux2016–7130 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Length600–1500 mm
Versions
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
41.4102.D16
41.4102.E16		Accent 60 ZSOFT2700 K25.2 W> 90°TRIAC
DALI-2		2016 lm
41.4102.D17
41.4102.E17		Accent 60 ZSOFT3000 K25.2 W> 90°TRIAC
DALI-2		2016 lm
41.4102.D18
41.4102.E18		Accent 60 ZSOFT4000 K25.2 W> 90°TRIAC
DALI-2		2179 lm
41.4102.D26
41.4102.E26		Accent 60 ZPR2700 K25.2 W60°TRIAC
DALI-2		2,650 lm
41.4102.D27
41.4102.E27		Accent 60 ZPR3000 K25.2 W60°TRIAC
DALI-2		2,650 lm
41.4102.D28
41.4102.E28		Accent 60 ZPR4000 K25.2 W60°TRIAC
DALI-2		2,852 lm
41.4102.D36
41.4102.E36		Accent 60 ZSPR2700 K25.2 W60°TRIAC
DALI-2		2592 lm
41.4102.D37
41.4102.E37		Accent 60 ZSPR3000 K25.2 W60°TRIAC
DALI-2		2592 lm
41.4102.D38
41.4102.E38		Accent 60 ZSPR4000 K25.2 W60°TRIAC
DALI-2		2790 lm
41.4103.D16
41.4103.E16		Accent 90 ZSOFT2700 K37.8 W> 90°TRIAC
DALI-2		3024 lm
41.4103.D17
41.4103.E17		Accent 90 ZSOFT3000 K37.8 W> 90°TRIAC
DALI-2		3024 lm
41.4103.D18
41.4103.E18		Accent 90 ZSOFT4000 K37.8 W> 90°TRIAC
DALI-2		3,255 lm
41.4103.D26
41.4103.E26		Accent 90 ZPR2700 K37.8 W60°TRIAC
DALI-2		3,975 lm
41.4103.D27
41.4103.E27		Accent 90 ZPR3000 K37.8 W60°TRIAC
DALI-2		3,975 lm
41.4103.D28
41.4103.E28		Accent 90 ZPR4000 K37.8 W60°TRIAC
DALI-2		4278 lm
41.4103.D36
41.4103.E36		Accent 90 ZSPR2700 K37.8 W60°TRIAC
DALI-2		3,888 lm
41.4103.D37
41.4103.E37		Accent 90 ZSPR3000 K37.8 W60°TRIAC
DALI-2		3888 lm
41.4103.D38
41.4103.E38		Accent 90 ZSPR4000 K37.8 W60°TRIAC
DALI-2		4185 lm
41.4104.D16
41.4104.E16		Accent ZSOFT2700 K50.4 W> 90°TRIAC
DALI-2		4032 lm
41.4104.D17
41.4104.E17		Accent ZSOFT3000 K50.4 W> 90°TRIAC
DALI-2		4032 lm
41.4104.D18
41.4104.E18		Accent ZSOFT4000 K50.4 W> 90°TRIAC
DALI-2		4340 lm
41.4104.D26
41.4104.E26		Accent ZPR2700 K50.4 W60°TRIAC
DALI-2		5,299 lm
41.4104.D27
41.4104.E27		Accent ZPR3000 K50.4 W60°TRIAC
DALI-2		5,299 lm
41.4104.D28
41.4104.E28		Accent ZPR4000 K50.4 W60°TRIAC
DALI-2		5704 lm
41.4104.D36
41.4104.E36		Accent ZSPR2700 K50.4 W60°TRIAC
DALI-2		5184 lm
41.4104.D37
41.4104.E37		Accent ZSPR3000 K50.4 W60°TRIAC
DALI-2		5184 lm
41.4104.D38
41.4104.E38		Accent ZSPR4000 K50.4 W60°TRIAC
DALI-2		5580 lm
41.4105.D16
41.4105.E16		Accent ZSOFT2700 K63 W> 90°TRIAC
DALI-2		5040 lm
41.4105.D17
41.4105.E17		Accent ZSOFT3000 K63 W> 90°TRIAC
DALI-2		5040 lm
41.4105.D18
41.4105.E18		Accent ZSOFT4000 K63 W> 90°TRIAC
DALI-2		5425 lm
41.4105.D26
41.4105.E26		Accent ZPR2700 K63 W60°TRIAC
DALI-2		6624 lm
41.4105.D27
41.4105.E27		Accent ZPR3000 K63 W60°TRIAC
DALI-2		6624 lm
41.4105.D28
41.4105.E28		Accent ZPR4000 K63 W60°TRIAC
DALI-2		7,130 lm
41.4105.D36
41.4105.E36		Accent ZSPR2700 K63 W60°TRIAC
DALI-2		6480 lm
41.4105.D37
41.4105.E37		Accent ZSPR3000 K63 W60°TRIAC
DALI-2		6480 lm
41.4105.D38
41.4105.E38		Accent ZSPR4000 K63 W60°TRIAC
DALI-2		6,975 lm
