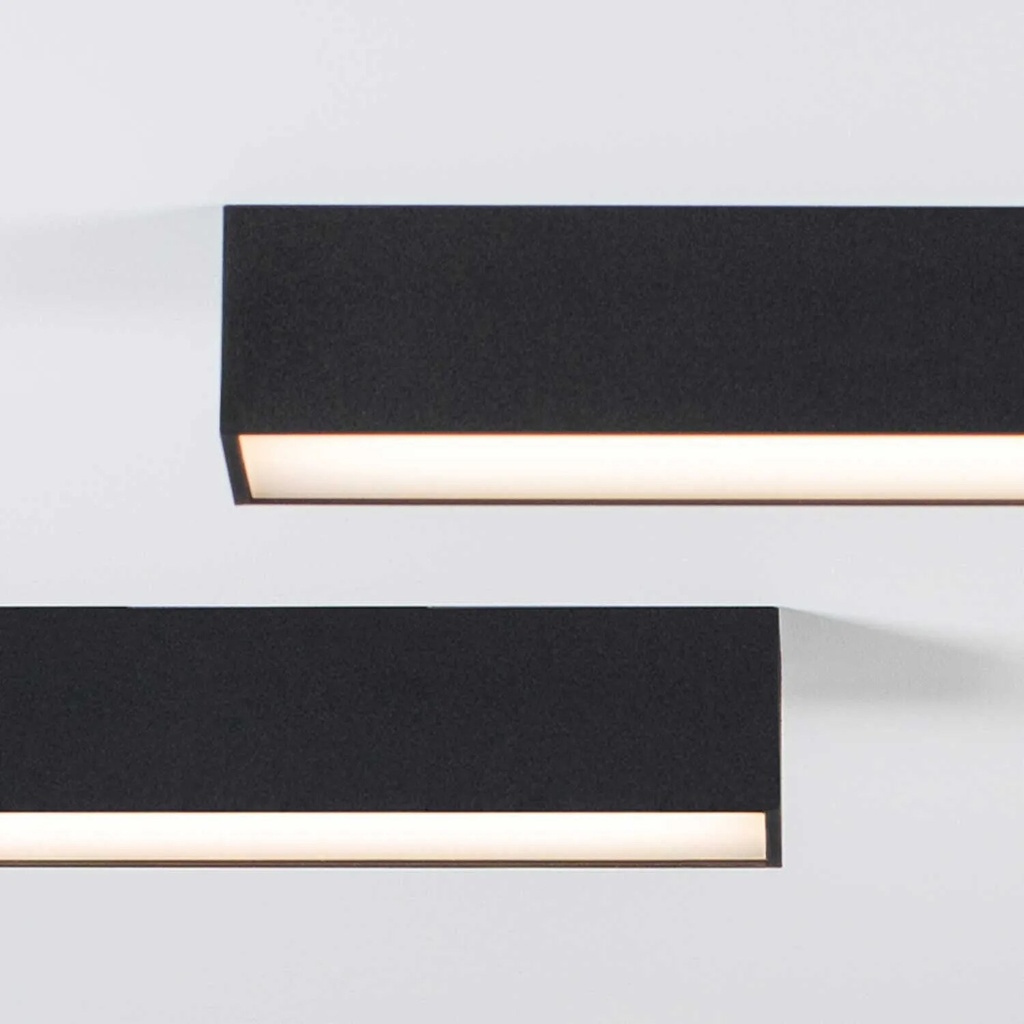

Accent ON Surface-mounted Ceiling Light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 41.1101.D16.002
Add to wishlist
Contact Us
Documents
chors-accent-on-3d-data.zip chors-accent-on-installation-manual.pdf chors-accent-on-photometric-data.zip

Accent ON surface-mounted ceiling light, 1 × SLED/LED, power consumption 12.6–63 W, total luminous flux 1008–7130 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power loss, PR/SPR achieve UGR <= 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number41.1101.* · 41.1102.* · 41.1103.* · 41.1104.* · 41.1105.*Installationsurface-mounted ceiling
Protection ratingIP20Weight0.8–2 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption12.6 W · 25.2 W · 37.8 W · 50.4 W · 63 W
Luminous flux1008–7130 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified

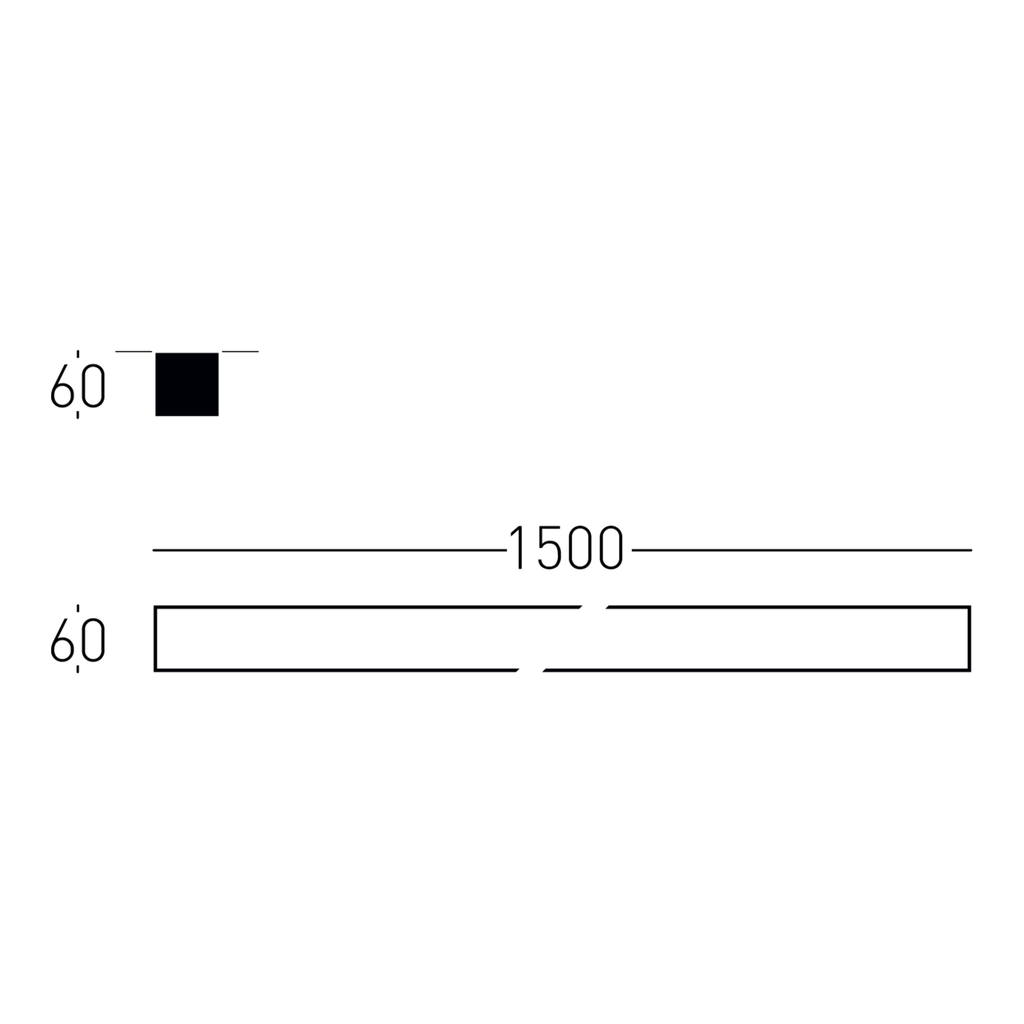

Dimensions
Length300–1500 mm
Variants
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
41.1101.D16
41.1101.E16		Accent 30 ONSOFT2700 K12.6 W> 90°TRIAC
DALI-2		1008 lm
41.1101.D17
41.1101.E17		Accent 30 ONSOFT3000 K12.6 W> 90°TRIAC
DALI-2		1008 lm
41.1101.D18
41.1101.E18		Accent 30 ONSOFT4000 K12.6 W> 90°TRIAC
DALI-2		1085 lm
41.1101.D26
41.1101.E26		Accent 30 ONPR2700 K12.6 W60°TRIAC
DALI-2		1325 lm
41.1101.D27
41.1101.E27		Accent 30 ONPR3000 K12.6 W60°TRIAC
DALI-2		1325 lm
41.1101.D28
41.1101.E28		Accent 30 ONPR4000 K12.6 W60°TRIAC
DALI-2		1426 lm
41.1101.D36
41.1101.E36		Accent 30 ONSPR2700 K12.6 W60°TRIAC
DALI-2		1296 lm
41.1101.D37
41.1101.E37		Accent 30 ONSPR3000 K12.6 W60°TRIAC
DALI-2		1296 lm
41.1101.D38
41.1101.E38		Accent 30 ONSPR4000 K12.6 W60°TRIAC
DALI-2		1395 lm
41.1102.D16
41.1102.E16		Accent 60 ONSOFT2700 K25.2 W> 90°TRIAC
DALI-2		2016 lm
41.1102.D17
41.1102.E17		Accent 60 ONSOFT3000 K25.2 W> 90°TRIAC
DALI-2		2016 lm
41.1102.D18
41.1102.E18		Accent 60 ONSOFT4000 K25.2 W> 90°TRIAC
DALI-2		2179 lm
41.1102.D26
41.1102.E26		Accent 60 ONPR2700 K25.2 W60°TRIAC
DALI-2		2,650 lm
41.1102.D27
41.1102.E27		Accent 60 ONPR3000 K25.2 W60°TRIAC
DALI-2		2,650 lm
41.1102.D28
41.1102.E28		Accent 60 ONPR4000 K25.2 W60°TRIAC
DALI-2		2852 lm
41.1102.D36
41.1102.E36		Accent 60 ONSPR2700 K25.2 W60°TRIAC
DALI-2		2592 lm
41.1102.D37
41.1102.E37		Accent 60 ONSPR3000 K25.2 W60°TRIAC
DALI-2		2592 lm
41.1102.D38
41.1102.E38		Accent 60 ONSPR4000 K25.2 W60°TRIAC
DALI-2		2790 lm
41.1103.D16
41.1103.E16		Accent 90 ONSOFT2700 K37.8 W> 90°TRIAC
DALI-2		3024 lm
41.1103.D17
41.1103.E17		Accent 90 ONSOFT3000 K37.8 W> 90°TRIAC
DALI-2		3024 lm
41.1103.D18
41.1103.E18		Accent 90 ONSOFT4000 K37.8 W> 90°TRIAC
DALI-2		3255 lm
41.1103.D26
41.1103.E26		Accent 90 ONPR2700 K37.8 W60°TRIAC
DALI-2		3,975 lm
41.1103.D27
41.1103.E27		Accent 90 ONPR3000 K37.8 W60°TRIAC
DALI-2		3,975 lm
41.1103.D28
41.1103.E28		Accent 90 ONPR4000 K37.8 W60°TRIAC
DALI-2		4,278 lm
41.1103.D36
41.1103.E36		Accent 90 ONSPR2700 K37.8 W60°TRIAC
DALI-2		3,888 lm
41.1103.D37
41.1103.E37		Accent 90 ONSPR3000 K37.8 W60°TRIAC
DALI-2		3888 lm
41.1103.D38
41.1103.E38		Accent 90 ONSPR4000 K37.8 W60°TRIAC
DALI-2		4185 lm
41.1104.D16
41.1104.E16		Accent ONSOFT2700 K50.4 W> 90°TRIAC
DALI-2		4032 lm
41.1104.D17
41.1104.E17		Accent ONSOFT3000 K50.4 W> 90°TRIAC
DALI-2		4032 lm
41.1104.D18
41.1104.E18		Accent ONSOFT4000 K50.4 W> 90°TRIAC
DALI-2		4,340 lm
41.1104.D26
41.1104.E26		Accent ONPR2700 K50.4 W60°TRIAC
DALI-2		5,299 lm
41.1104.D27
41.1104.E27		Accent ONPR3000 K50.4 W60°TRIAC
DALI-2		5299 lm
41.1104.D28
41.1104.E28		Accent ONPR4000 K50.4 W60°TRIAC
DALI-2		5704 lm
41.1104.D36
41.1104.E36		Accent ONSPR2700 K50.4 W60°TRIAC
DALI-2		5184 lm
41.1104.D37
41.1104.E37		Accent ONSPR3000 K50.4 W60°TRIAC
DALI-2		5184 lm
41.1104.D38
41.1104.E38		Accent ONSPR4000 K50.4 W60°TRIAC
DALI-2		5580 lm
41.1105.D16
41.1105.E16		Accent ONSOFT2700 K63 W> 90°TRIAC
DALI-2		5040 lm
41.1105.D17
41.1105.E17		Accent ONSOFT3000 K63 W> 90°TRIAC
DALI-2		5040 lm
41.1105.D18
41.1105.E18		Accent ONSOFT4000 K63 W> 90°TRIAC
DALI-2		5425 lm
41.1105.D26
41.1105.E26		Accent ONPR2700 K63 W60°TRIAC
DALI-2		6624 lm
41.1105.D27
41.1105.E27		Accent ONPR3000 K63 W60°TRIAC
DALI-2		6624 lm
41.1105.D28
41.1105.E28		Accent ONPR4000 K63 W60°TRIAC
DALI-2		7,130 lm
41.1105.D36
41.1105.E36		Accent ONSPR2700 K63 W60°TRIAC
DALI-2		6,480 lm
41.1105.D37
41.1105.E37		Accent ONSPR3000 K63 W60°TRIAC
DALI-2		6480 lm
41.1105.D38
41.1105.E38		Accent ONSPR4000 K63 W60°TRIAC
DALI-2		6,975 lm
