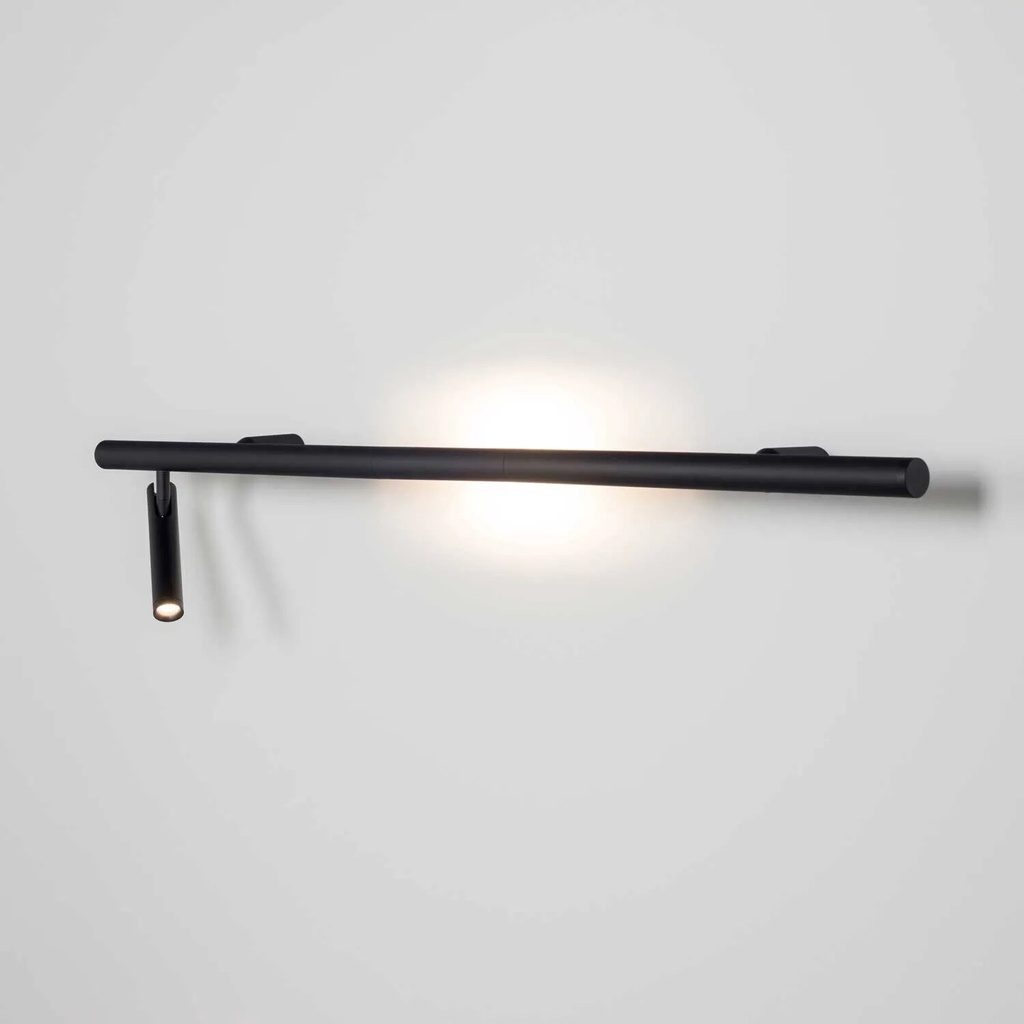

Backlight+ K Surface-mounted wall light, 2–3 × SLED, power consumption 12–19.2 W, total luminous flux 1086–1914 lm, indirect rearward illumination with a clear cover and a beam angle >90° or direct upward illumination with a fixed glass lens and a beam angle of 40°, supplemented by one or two swivelling and tilting spotlights with an adjustable glass lens with a beam angle of approx. 15–40°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, built-in touch dimmer with flash memory and 30-minute sleep timer, switchable, incl. driver, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty
Technical data
| Luminaire | |||
|---|---|---|---|
| Item number | 42.2154.* · 42.2155.* · 42.2156.* · 42.2157.* · 42.2158.* · 42.2159.* | Installation | Wall mounting |
| Protection class | IP20 | Weight | 1.6–2.6 kg |
| LED warranty | 5 years | ||
| Contents | Integrated driver | ||
| Light | |||
| Light source | SLED | Power consumption | 6 W + 6 W · 6 W + 2 × 6 W · 6.4 W + 2 × 6.4 W |
| Luminous flux | 552 + 2 × 552 lm · 556 + 2 × 530 lm · 556 + 530 lm · 592 + 2 × 592 lm · 593 + 2 × 560 lm · 593 + 560 lm · 638 + 2 × 638 lm · 649 + 2 × 610 lm · 649 + 610 lm | Beam angle | > 90° + 15–40° · > 90° + 2 × 15–40° |
| Optics | Rotatable LED with clear cover in the centre, shines onto the wall from a distance and scatters the light into the room; plus a rotatable and swivelling reading light on the right or left with adjustable genuine glass lens 15–40° | ||
| Light colours | 2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike) | ||
| LED module | 18 V, MacAdam Class 2 | Energy efficiency class | F · G |
| Electrical | |||
| Power supply | 230 V, 50 Hz | Control | DALI-2 · DIM switch · non-dimmable |
| Finishes | |||
| Standard colours | 002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007 | ||
| NCS standard colours | S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y | ||
| Colour of choice | NCS or RAL as specified | ||
| Dimensions | |||
| Length | 1200–2400 mm | ||
Versions
| Item number | Model | Light colour | Power | Angle | Control | Luminous flux |
|---|---|---|---|---|---|---|
| 42.2154.0BA 42.2154.2BA 42.2155.UBA | Backlight+ R K | 2700 K | 6 W + 6 W | > 90° + 15–40° | non-dimmable DALI-2 DIM switch | 556 + 530 lm |
| 42.2154.0BB 42.2154.2BB 42.2155.UBB | Backlight+ R K | 3000 K | 6 W + 6 W | > 90° + 15–40° | non-dimmable DALI-2 DIM switch | 593 + 560 lm |
| 42.2154.0BC 42.2154.2BC 42.2155.UBC | Backlight+ R K | 4000 K | 6 W + 6 W | > 90° + 15–40° | non-dimmable DALI-2 DIM switch | 649 + 610 lm |
| 42.2156.0BA 42.2156.2BA 42.2157.UBA | Backlight+ L K | 2700 K | 6 W + 6 W | > 90° + 15–40° | non-dimmable DALI-2 DIM switch | 556 + 530 lm |
| 42.2156.0BB 42.2156.2BB 42.2157.UBB | Backlight+ L K | 3000 K | 6 W + 6 W | > 90° + 15–40° | non-dimmable DALI-2 DIM switch | 593 + 560 lm |
| 42.2156.0BC 42.2156.2BC 42.2157.UBC | Backlight+ L K | 4000 K | 6 W + 6 W | > 90° + 15–40° | not dimmable DALI-2 DIM switch | 649 + 610 lm |
| 42.2158.0BA 42.2158.2BA | Backlight+ K | 2700 K | 6 W + 2 x 6 W | > 90° + 2 x 15–40° | not dimmable DALI-2 | 556 + 2 x 530 lm |
| 42.2158.0BB 42.2158.2BB | Backlight+ K | 3000 K | 6 W + 2 x 6 W | > 90° + 2 x 15–40° | non-dimmable DALI-2 | 593 + 2 x 560 lm |
| 42.2158.0BC 42.2158.2BC | Backlight+ K | 4000 K | 6 W + 2 x 6 W | > 90° + 2 x 15–40° | non-dimmable DALI-2 | 649 + 2 x 610 lm |
| 42.2159.UBA | Backlight+ K | 2700 K | 6.4 W + 2 x 6.4 W | > 90° + 15–40° | DIM switch | 552 + 2 x 552 lm |
| 42.2159.UBB | Backlight+ K | 3000 K | 6.4 W + 2 x 6.4 W | > 90° + 15–40° | DIM switch | 592 + 2 x 592 lm |
| 42.2159.UBC | Backlight+ K | 4000 K | 6.4 W + 2 x 6.4 W | > 90° + 15–40° | DIM switch | 638 + 2 × 638 lm |
