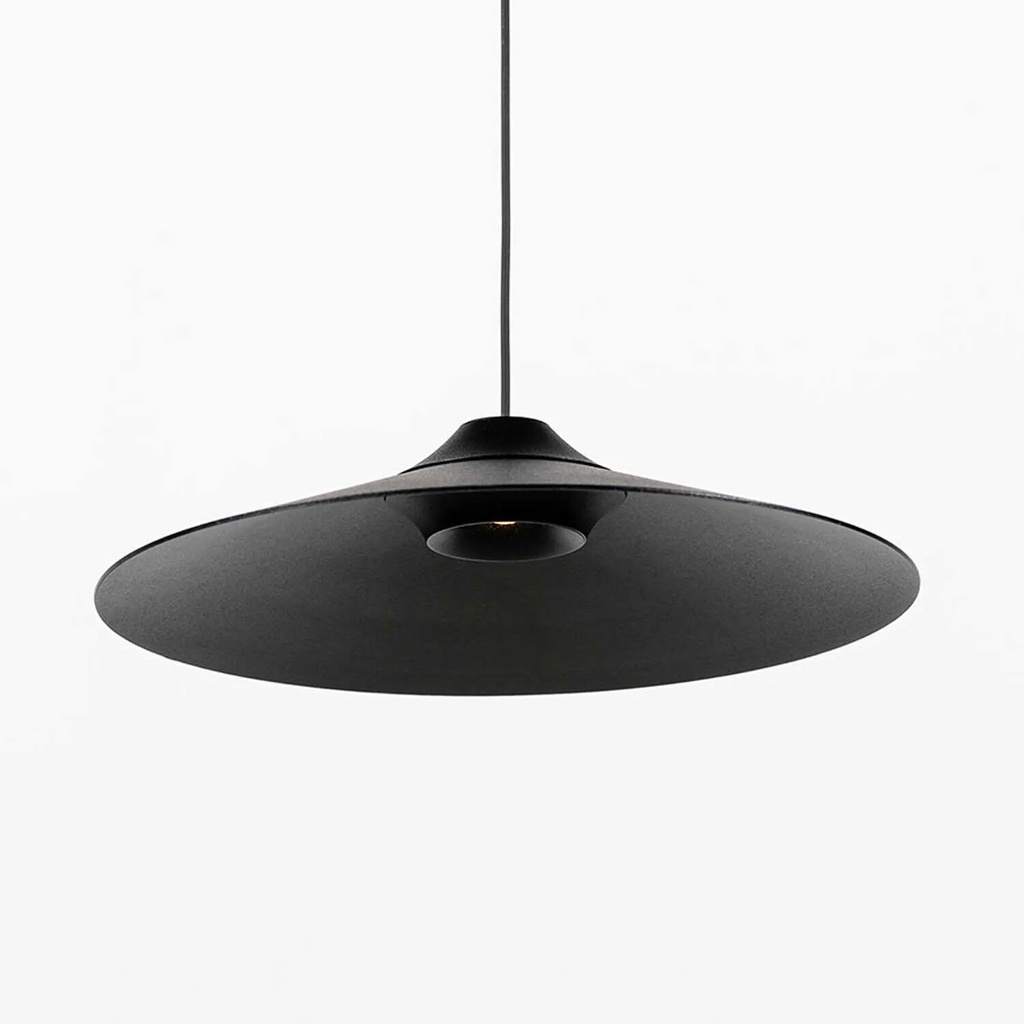

Mika Z Ceiling pendant spotlight


  • Diameter
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 12.4101.1KA.002
Add to wishlist
Contact Us
Documents
chors-mika-z-3d-data-2.zip chors-mika-z-3d-data-3.zip chors-mika-z-3d-data.zip chors-mika-z-installation-manual.pdf chors-mika-z-lichtdaten.pdf chors-mika-z-24-3000k.ldt chors-mika-z-36-3000k.ldt chors-mika-z-49-3000k.ldt chors-mika-z-photometric-data.zip

Mika Z ceiling pendant spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 528–590 lm, fixed glass lens with a beam angle of 80°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number12.4101.* · 12.4102.* · 12.4103.*Installationpendant light
Protection classIP20Weight0.6–1.2 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux528–590 lmBeam angle80°
OpticsFixed glass lens, 80°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply230 V, 50 HzControlTRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelLight colourLuminous flux
12.4101.1KAMika 24 Z2,700 K528 lm
12.4101.1KBMika 24 Z3,000 K547 lm
12.4101.1KCMika 24 Z4,000 K590 lm
12.4102.1KAMika 36 Z2,700 K528 lm
12.4102.1KBMika 36 Z3,000 K547 lm
12.4102.1KCMika 36 Z4,000 K590 lm
12.4103.1KAMika 49 Z2,700 K528 lm
12.4103.1KBMika 49 Z3,000 K547 lm
12.4103.1KCMika 49 Z4,000 K590 lm
