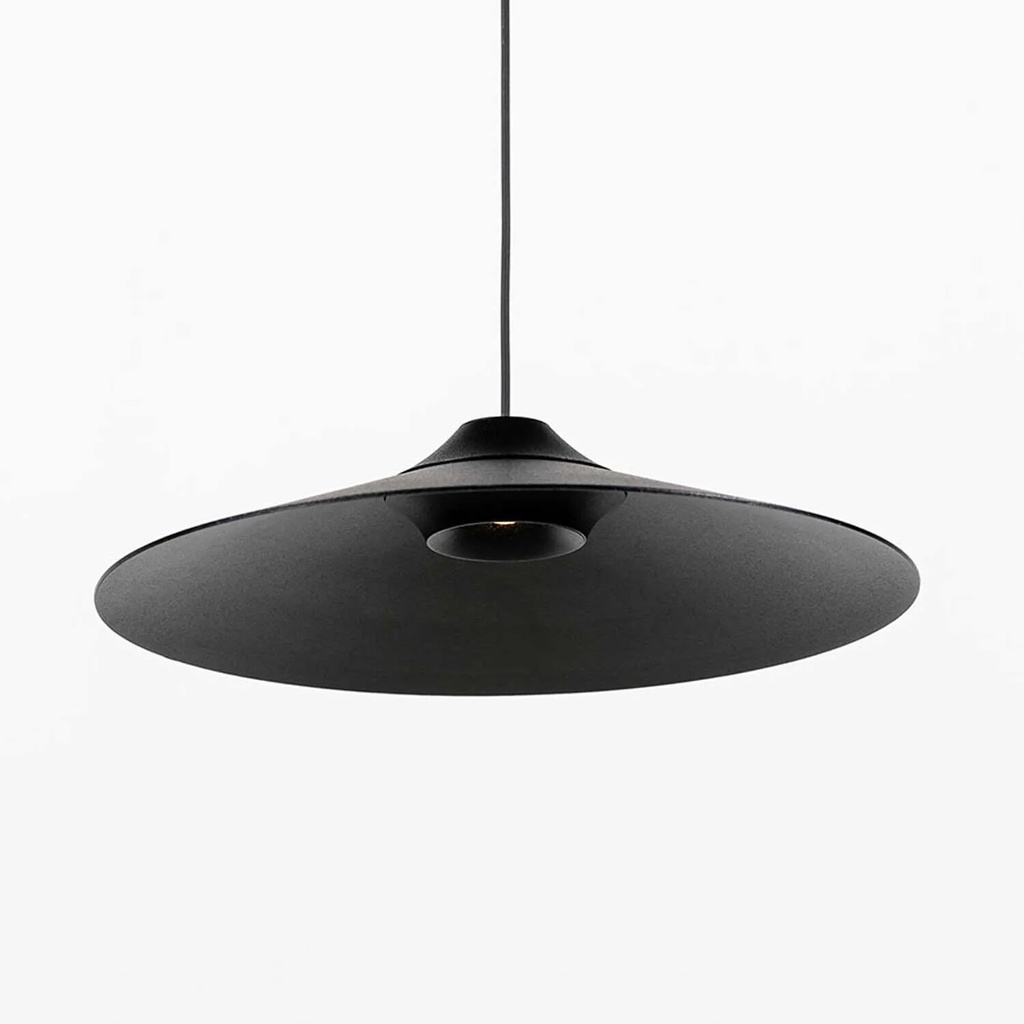

Mika Z TR48 48V track pendant spotlight


  • Diameter
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 12.B120.LKA.002
Add to wishlist
Contact Us

Mika Z TR48 48V track pendant spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 528–590 lm, fixed glass lens with a beam angle of 80°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, switchable, with 48V adapter for STUCCHI® Evo ST1/ST8/ST3 (transformer sold separately), 48 V DC, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number12.B120.* · 12.B121.* · 12.B122.* · 12.B123.* · 12.B124.* · 12.B125.*Installation48 V track
Protection classIP20Weight0.4–1 kg
LED warranty5 years
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux528–590 lmBeam angle80°
OpticsFixed glass lens, 80°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module36 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply48 V DCControlDALI-2 · Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Diameter240–490 mm
Versions
Item numberModelLight colourControlLuminous flux
12.B120.LKAMika 24 A Z TR482700 KSwitching, circuit 1528 lm
12.B120.LKBMika 24 A Z TR483000 KSwitching, Circuit 1547 lm
12.B120.LKCMika 24 A Z TR484000 KSwitching, Circuit 1590 lm
12.B120.MKAMika 24 Z TR482700 KDALI-2528 lm
12.B120.MKBMika 24 Z TR483000 KDALI-2547 lm
12.B120.MKCMika 24 Z TR484000 KDALI-2590 lm
12.B121.LKAMika 24 B Z TR482700 KSwitching, circuit 2528 lm
12.B121.LKBMika 24 B Z TR483000 KSwitch, Circuit 2547 lm
12.B121.LKCMika 24 B Z TR484000 KSwitch, Circuit 2590 lm
12.B122.LKAMika 36 A Z TR482700 KSwitch, circuit 1528 lm
12.B122.LKBMika 36 A Z TR483000 KSwitching, Circuit 1547 lm
12.B122.LKCMika 36 A Z TR484000 KSwitching, Circuit 1590 lm
12.B122.MKAMika 36 Z TR482700 KDALI-2528 lm
12.B122.MKBMika 36 Z TR483000 KDALI-2547 lm
12.B122.MKCMika 36 Z TR484000 KDALI-2590 lm
12.B123.LKAMika 36 B Z TR482700 KSwitching, Circuit 2528 lm
12.B123.LKBMika 36 B Z TR483000 KSwitch, Circuit 2547 lm
12.B123.LKCMika 36 B Z TR484000 KSwitch, Circuit 2590 lm
12.B124.LKAMika 49 A Z TR482700 KSwitch, circuit 1528 lm
12.B124.LKBMika 49 A Z TR483000 KSwitching, Circuit 1547 lm
12.B124.LKCMika 49 A Z TR484000 KSwitch, Circuit 1590 lm
12.B124.MKAMika 49 Z TR482700 KDALI-2528 lm
12.B124.MKBMika 49 Z TR483000 KDALI-2547 lm
12.B124.MKCMika 49 Z TR484000 KDALI-2590 lm
12.B125.LKAMika 49 B Z TR482700 KSwitching, circuit 2528 lm
12.B125.LKBMika 49 B Z TR483000 KSwitch, Circuit 2547 lm
12.B125.LKCMika 49 B Z TR484000 KSwitch, Circuit 2590 lm
