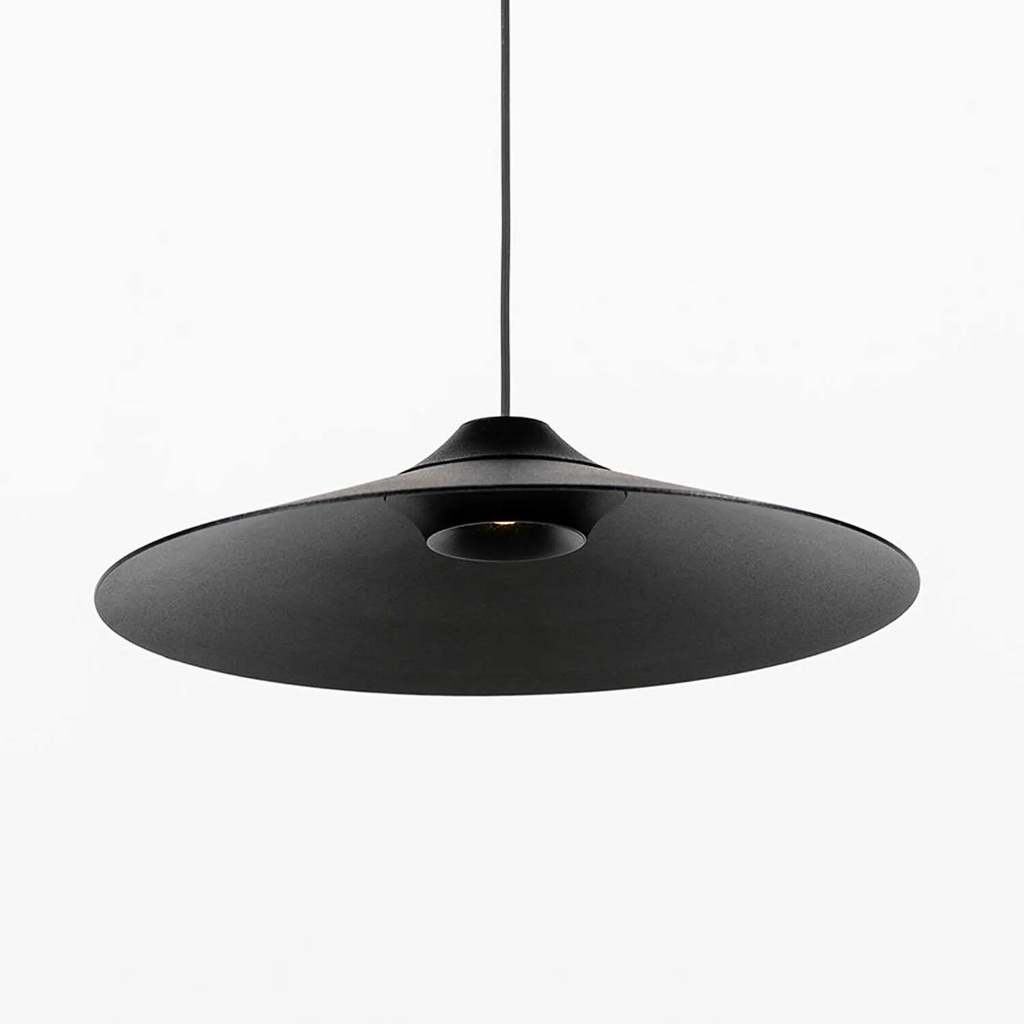

Mika Z U Ceiling pendant spotlight


  • Diameter
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 12.4132.1KA.002
Add to wishlist
Contact Us

Mika Z U Ceiling pendant spotlight, 1 × SLED, power consumption 6.5 W, total luminous flux 528–590 lm, fixed glass lens with a beam angle of 80°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, with universal ceiling rose, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, brushed aluminium/414, brushed steel/416, brushed antique gold/435, brushed copper/444, brushed brass/445, brushed bronze/447, Custom NCS/RAL colours available; see pictogram for dimensions; 5-year LED warranty

Technical data

Light fitting
Item number12.4132.* · 12.4133.* · 12.4134.*Installationpendant light
Protection classIP20Weight0.6–1.2 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux528–590 lmBeam angle80°
OpticsFixed glass lens, 80°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 2Energy efficiency classF · G
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Diameter240–490 mm
Versions
Item numberModelLight colourControlLuminous flux
12.4132.1KA
12.4132.2KA		Mika 24 Z U2700 KTRIAC
DALI-2		528 lm
12.4132.1KB
12.4132.2KB		Mika 24 Z U3000 KTRIAC
DALI-2		547 lm
12.4132.1KC
12.4132.2KC		Mika 24 Z U4000 KTRIAC
DALI-2		590 lm
12.4133.1KA
12.4133.2KA		Mika 36 Z U2700 KTRIAC
DALI-2		528 lm
12.4133.1KB
12.4133.2KB		Mika 36 Z U3000 KTRIAC
DALI-2		547 lm
12.4133.1KC
12.4133.2KC		Mika 36 Z U4000 KTRIAC
DALI-2		590 lm
12.4134.1KA
12.4134.2KA		Mika 49 Z U2700 KTRIAC
DALI-2		528 lm
12.4134.1KB
12.4134.2KB		Mika 49 Z U3000 KTRIAC
DALI-2		547 lm
12.4134.1KC
12.4134.2KC		Mika 49 Z U4000 KTRIAC
DALI-2		590 lm
