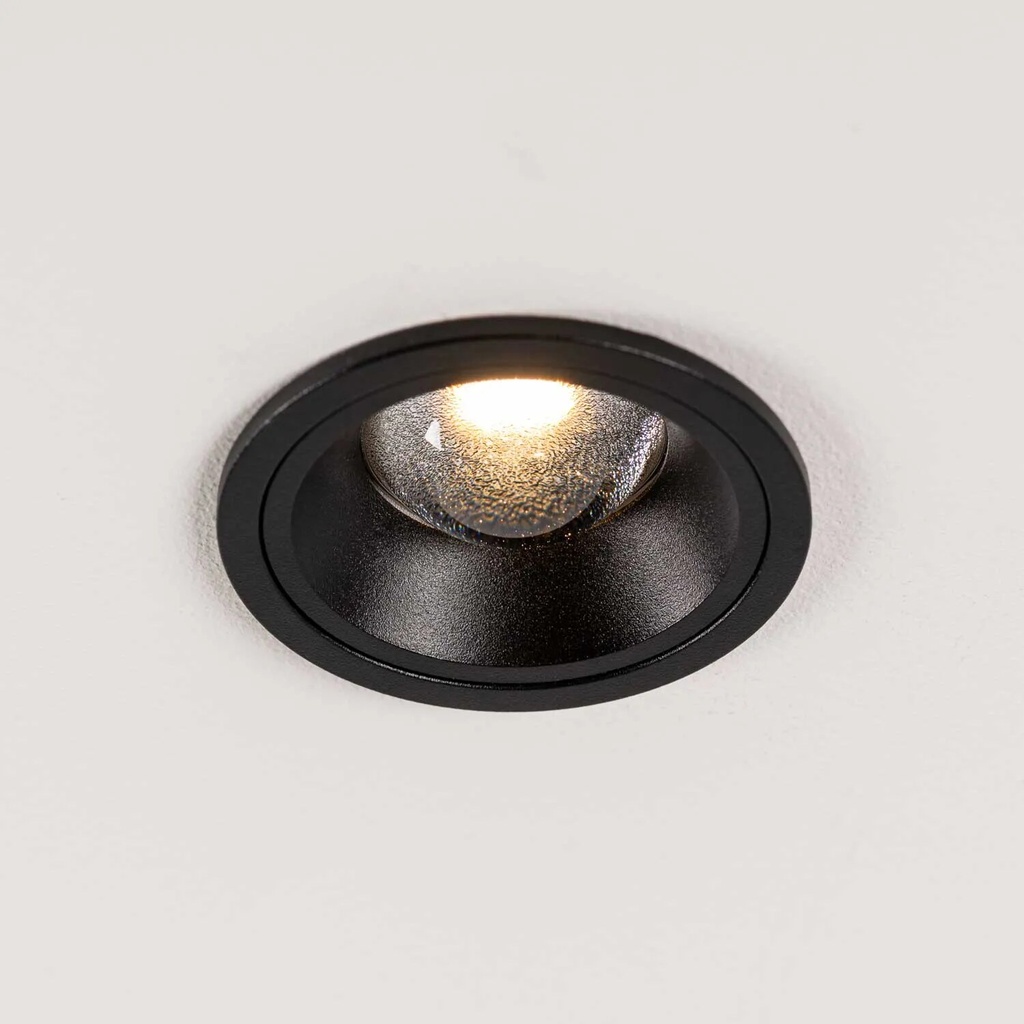

Subtil 45 IN Recessed Ceiling Spotlight IP44

We use AI-generated or AI-enhanced product photos.

Subtil 45 IN Recessed Ceiling Spotlight IP44


  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 09.3106.GCA.002
Add to wishlist
Contact Us
Documents
chors-subtil-45-in-photometric-data.zip

Subtil 45 IN recessed ceiling spotlight IP44, 1 × SLED, power consumption 6.5 W, total luminous flux 530–610 lm, fixed glass lens with a beam angle of 50°, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, driver not included, compatible drivers available for each dimming type (TRIAC/DALI-2/Casambi); for multiple luminaires, one driver per luminaire, operating current max. 350 mA, protection rating IP44, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number09.3106.*InstallationRecessed
Protection classIP44Weight0.2 kg
LED warranty5 years
ContentsDriver not included; one suitable driver required per light
Light
Light sourceSLEDPower consumption6.5 W
Luminous flux530–610 lmBeam angle40°
OpticsFixed glass lens, 50°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
Energy efficiency classF · G
Electrical
Power supplymax. 350 mA DC, 18 VControlvia the selected driver
Compatible driversTRIAC: 87.1107.B35.000 (7 W, 350 mA) · 87.1223.B35.000 (23 W, 350 mA) — DALI-2: 87.1223.C35.000 (23 W, 350 mA) — CASAMBI: 87.1323.C35.000 (23 W, 350 mA)
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Two-tone002 black / 060 snow white · 060 snow white / 002 black
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberLight colourLuminous flux
09.3106.GCA2700 K530 lm
09.3106.GCB3000 K560 lm
09.3106.GCC4,000 K610 lm
