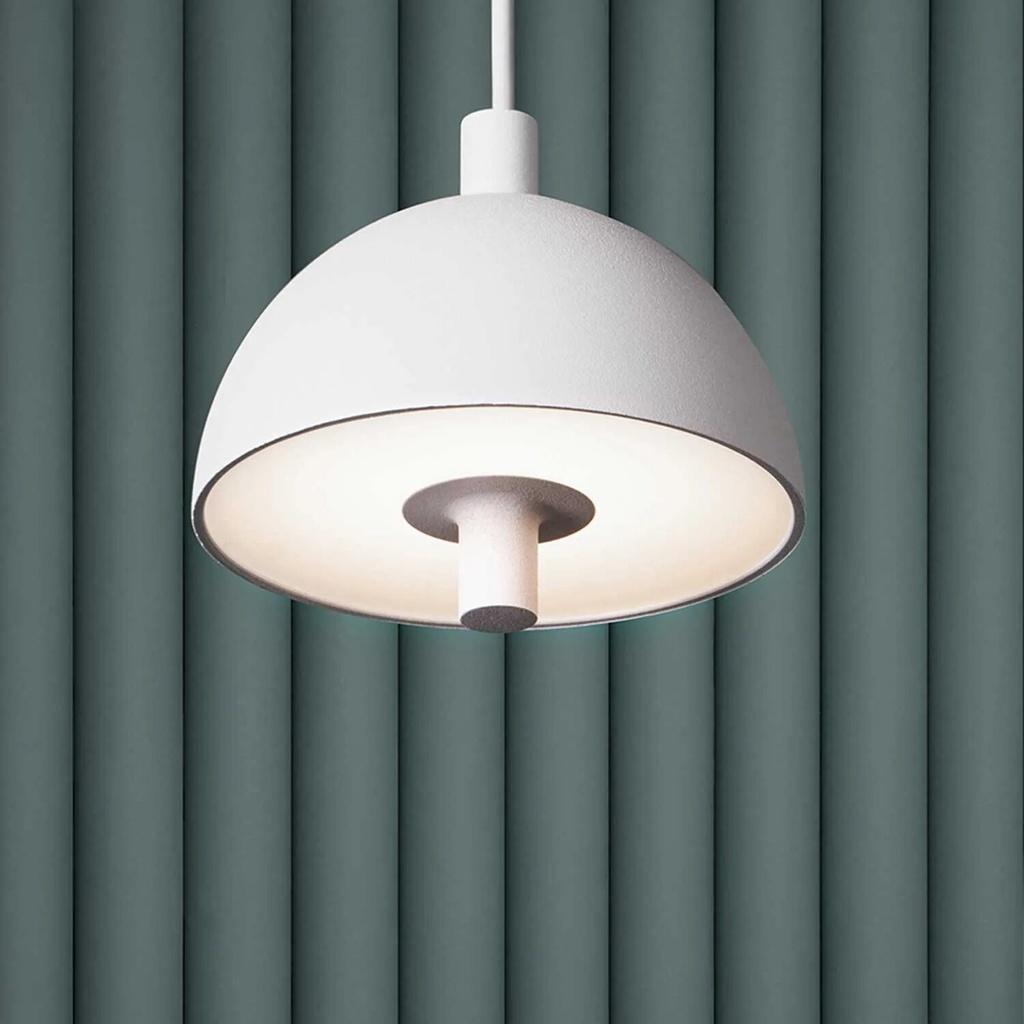

Otel V Z Ceiling pendant light

We use AI-generated or AI-enhanced product photos.

Otel V Z Ceiling pendant light


  • Version
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 25.4130.A3A.002
Add to wishlist
Contact Us

Otel V Z ceiling pendant light, 1 × SLED, power consumption 7.2 W, total luminous flux 630–675 lm, SPR diffuser (semi-prismatic) with a beam angle of 60° at 10% power dissipation, PR/SPR achieve UGR ≤ 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, phase-cut dimmer (TRIAC), incl. driver, straight silicone-insulated lead, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number25.4130.* · 25.4131.* · 25.4132.*Installationpendant light
Protection classIP20Weight0.5 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption7.2 W
Luminous flux630–675 lmBeam angle60°
OpticsSPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
Energy efficiency classF
Electrical
Power supply230 V, 50 HzControlTRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelLight colourLuminous flux
25.4130.A3AOtel A V Z2700 K630 lm
25.4130.A3BOtel A V Z3,000 K630 lm
25.4130.A3COtel A V Z4,000 K675 lm
25.4131.A3AOtel B V Z2,700 K630 lm
25.4131.A3BOtel B V Z3,000 K630 lm
25.4131.A3COtel B V Z4,000 K675 lm
25.4132.A3AOtel C V Z2,700 K630 lm
25.4132.A3BOtel C V Z3,000 K630 lm
25.4132.A3COtel C V Z4,000 K675 lm
