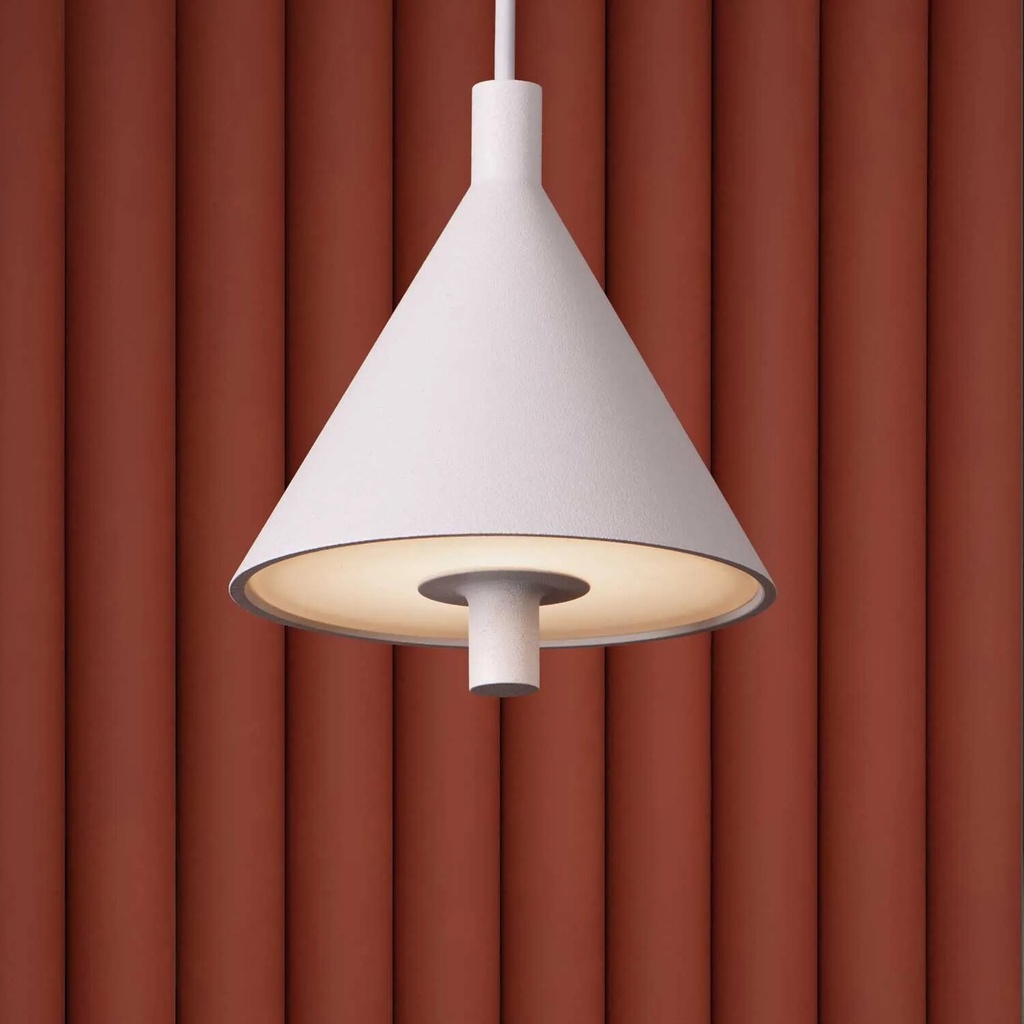

Otel Z TR48 48V track pendant light


  • Version
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 25.B160.L3A.002
Add to wishlist
Contact Us

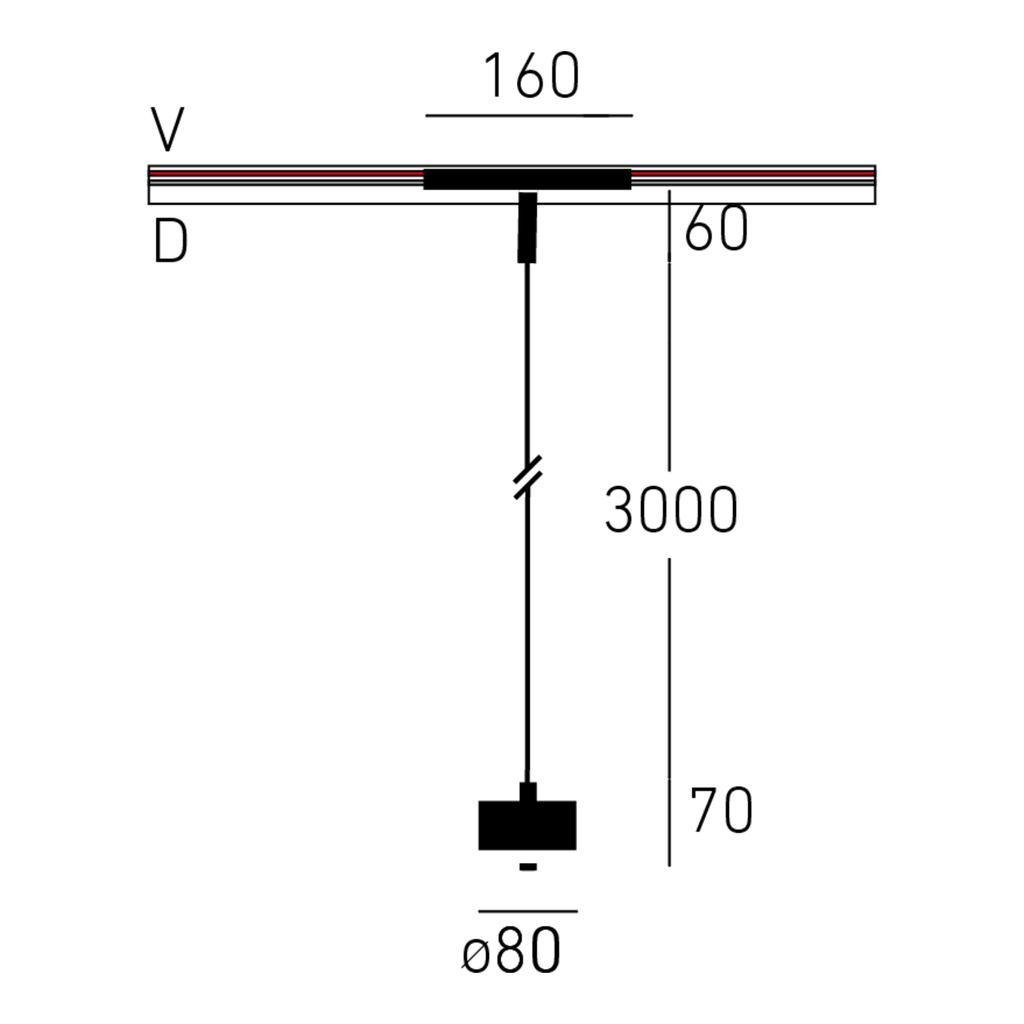

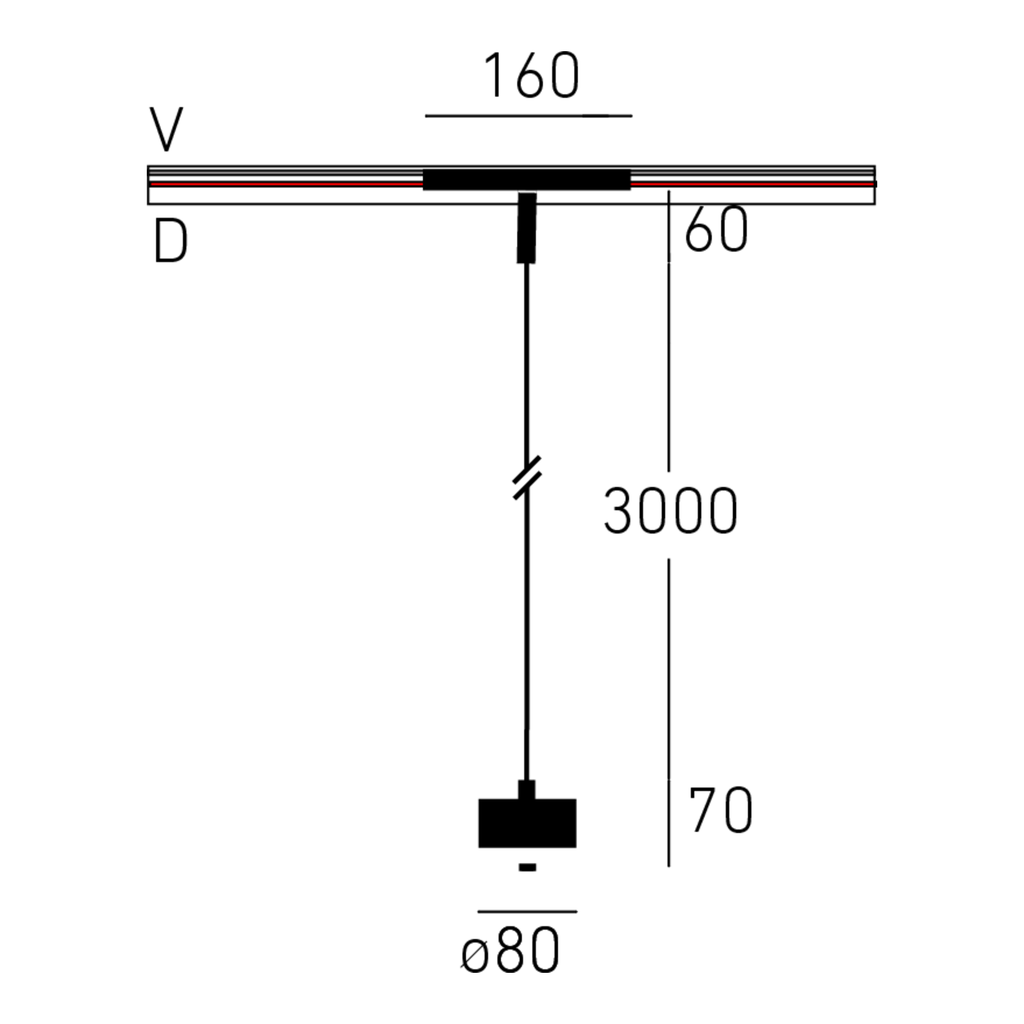

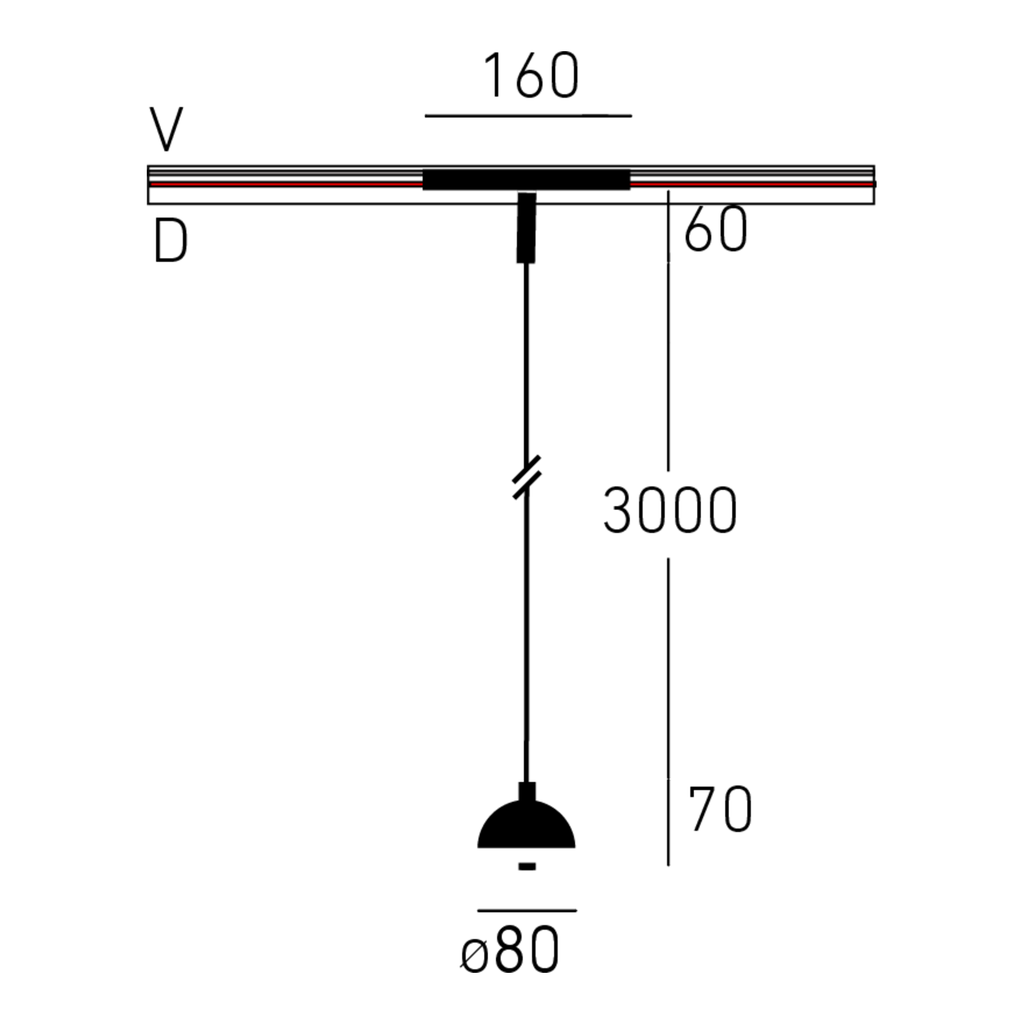

Otel Z TR48 48V track pendant light, 1 × SLED, power consumption 7.2 W, total luminous flux 630–675 lm, SPR diffuser (semi-prismatic) with a beam angle of 60° at 10% power dissipation, PR/SPR achieve UGR <= 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98; control options: DALI-2, switchable, with 48 V adapter for STUCCHI® Evo ST1/ST8/ST3 (transformer sold separately), straight silicone-insulated supply cable, 48 V DC, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, brushed aluminium/414, brushed steel/416, brushed old gold/435, brushed copper/444, brushed brass/445, brushed bronze/447, Custom NCS/RAL colours available; see pictogram for dimensions; 5-year LED warranty

Technical data

Light fitting
Item number25.B160.* · 25.B161.* · 25.B162.* · 25.B163.* · 25.B164.* · 25.B165.*Installation48 V track
Protection classIP20Weight0.5 kg
LED warranty5 years
Light
Light sourceSLEDPower consumption7.2 W
Luminous flux630–675 lmBeam angle60°
OpticsSPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam Class 3Energy efficiency classF
Electrical
Power supply48 V DCControlDALI-2 · Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Metallic414 brushed aluminium · 416 brushed steel · 435 brushed antique gold · 444 brushed copper · 445 brushed brass · 447 brushed bronze
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelLight colourControlLuminous flux
25.B160.L3AOtel A Z A TR482700 KSwitching, circuit 1630 lm
25.B160.L3BOtel A Z A TR483000 KSwitch, Circuit 1630 lm
25.B160.L3COtel A Z A TR484000 KSwitching, circuit 1675 lm
25.B160.M3AOtel A Z TR482700 KDALI-2630 lm
25.B160.M3BOtel A Z TR483000 KDALI-2630 lm
25.B160.M3COtel A Z TR484000 KDALI-2675 lm
25.B161.L3AOtel A Z B TR482700 KSwitching, circuit 2630 lm
25.B161.L3BOtel A Z B TR483000 KSwitch, Circuit 2630 lm
25.B161.L3COtel A Z B TR484000 KSwitch, circuit 2675 lm
25.B162.L3AOtel B Z A TR482700 KSwitching, circuit 1630 lm
25.B162.L3BOtel B Z A TR483000 KSwitch, Circuit 1630 lm
25.B162.L3COtel B Z A TR484000 KSwitch, Circuit 1675 lm
25.B162.M3AOtel B Z TR482700 KDALI-2630 lm
25.B162.M3BOtel B Z TR483000 KDALI-2630 lm
25.B162.M3COtel B Z TR484000 KDALI-2675 lm
25.B163.L3AOtel B Z B TR482700 KSwitching, circuit 2630 lm
25.B163.L3BOtel B Z B TR483000 KSwitching, Circuit 2630 lm
25.B163.L3COtel B Z B TR484000 KSwitch, Circuit 2675 lm
25.B164.L3AOtel C Z A TR482700 KSwitching, circuit 1630 lm
25.B164.L3BOtel C Z A TR483000 KSwitch, Circuit 1630 lm
25.B164.L3COtel C Z A TR484000 KSwitch, circuit 1675 lm
25.B164.M3AOtel C Z TR482700 KDALI-2630 lm
25.B164.M3BOtel C Z TR483000 KDALI-2630 lm
25.B164.M3COtel C Z TR484000 KDALI-2675 lm
25.B165.L3AOtel C Z B TR482700 KSwitching, circuit 2630 lm
25.B165.L3BOtel C Z B TR483000 KSwitching, Circuit 2630 lm
25.B165.L3COtel C Z B TR484000 KSwitch, Circuit 2675 lm
