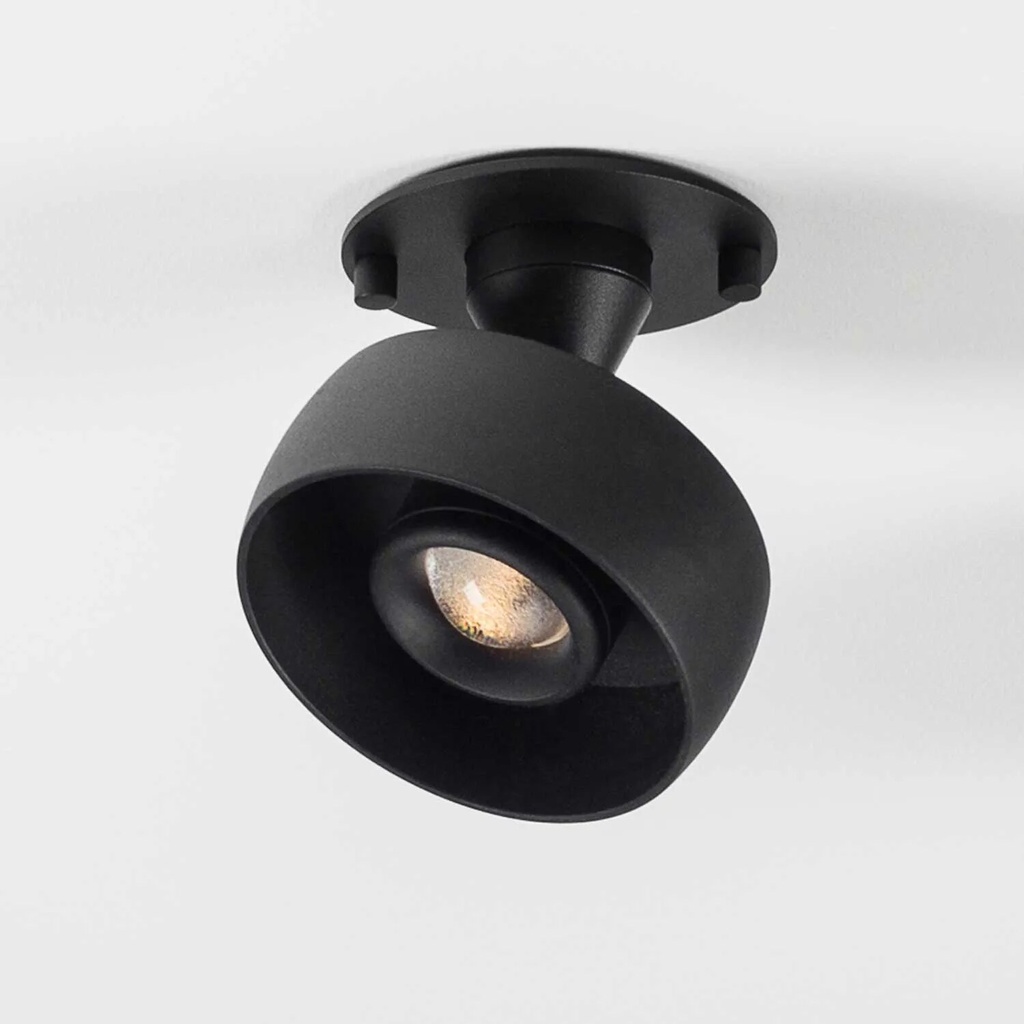

Myco 120 IN Recessed Ceiling Spotlight

Myco 120 IN recessed ceiling spotlight, 1 × SLED, power consumption 12.3 W, total luminous flux 996–1113 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–60°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, driver not included, suitable drivers depending on dimming type (TRIAC/DALI-2/Casambi), one driver per luminaire when multiple luminaires are used, operating current max. 700 mA, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number	31.3101.*	Installation	Recessed
Protection class	IP20	Weight	0.8 kg
LED warranty	5 years
Contents	Driver not included; one suitable driver required per light
Light
Light source	SLED	Power consumption	12.3 W
Luminous flux	996–1113 lm	Beam angle	15–60°
Optics	Glass lens, adjustable from 15° to 60°
Colour temperatures	2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module	18 V, MacAdam Class 3	Energy efficiency class	F · G
Electrical
Power supply	max. 700 mA DC, 18 V	Control	via the selected driver
Compatible drivers	TRIAC: 87.1115.B70.000 (15 W, 700 mA) · 87.1223.B70.000 (23 W, 700 mA) — DALI-2: 87.1223.C70.000 (23 W, 700 mA) · 87.1236.C70.000 (36 W, 700 mA) — CASAMBI: 87.1323.C70.000 (23 W, 700 mA) · 87.1344.C70.000 (44 W, 700 mA)
Finishes
Standard colours	002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard colours	S 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of your choice	NCS or RAL as specified
Dimensions
Diameter	120 mm	Installation opening	65 mm
Installation depth	60 mm
