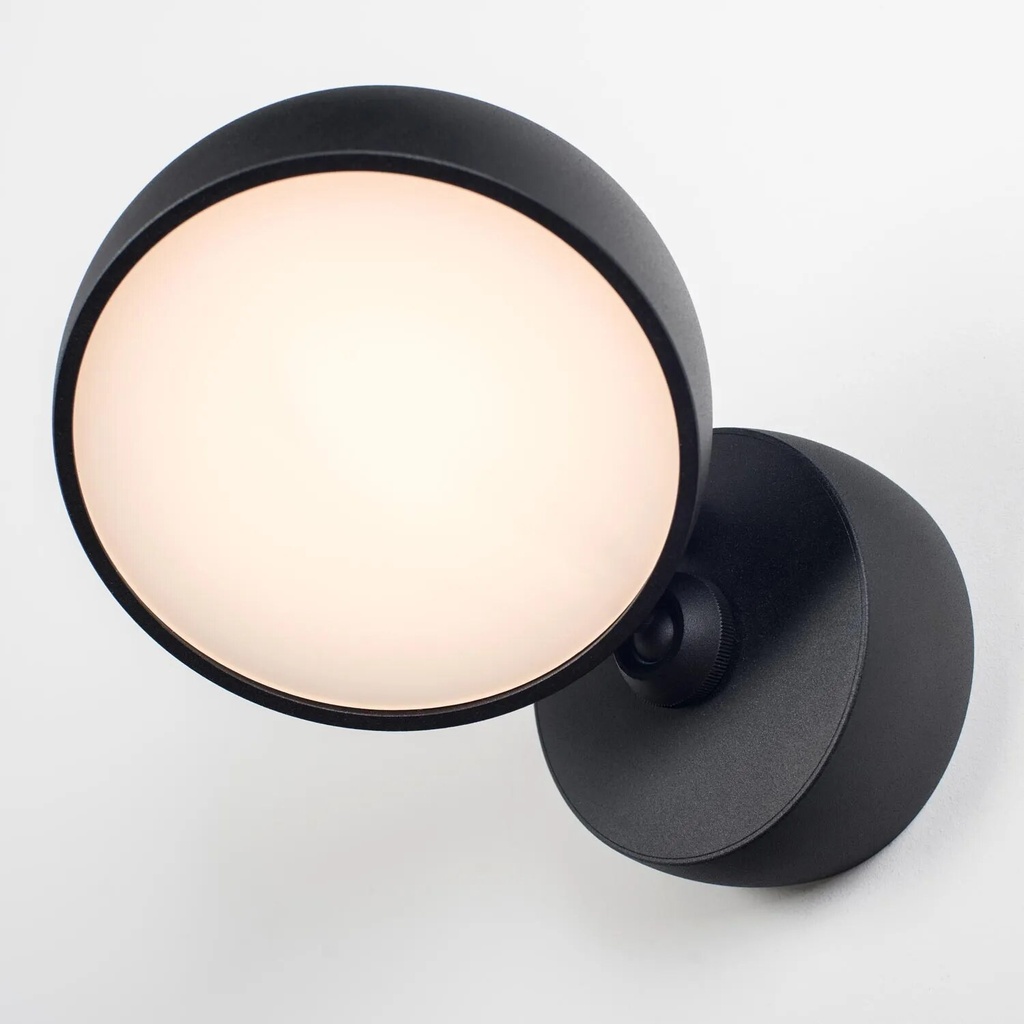

Myco 160 K surface-mounted wall light


  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 31.2155.116.002
Add to wishlist
Contact Us

Myco 160 K Surface-mounted wall light, 1 × SLED/LED, power consumption 12.8 W, total luminous flux 1008–1078 lm, SOFT diffuser (opalescent diffuser) with a beam angle >90° at 30% power dissipation, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, built-in touch dimmer with flash memory and 30-minute sleep timer, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number31.2155.* · 31.2156.*InstallationWall mounting
Protection classIP20Weight0.9 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption12.8 W
Luminous flux1008–1078 lmBeam angle> 90°
OpticsSOFT: opal diffuser, > 90°, 30% power loss
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · DIM switch · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified

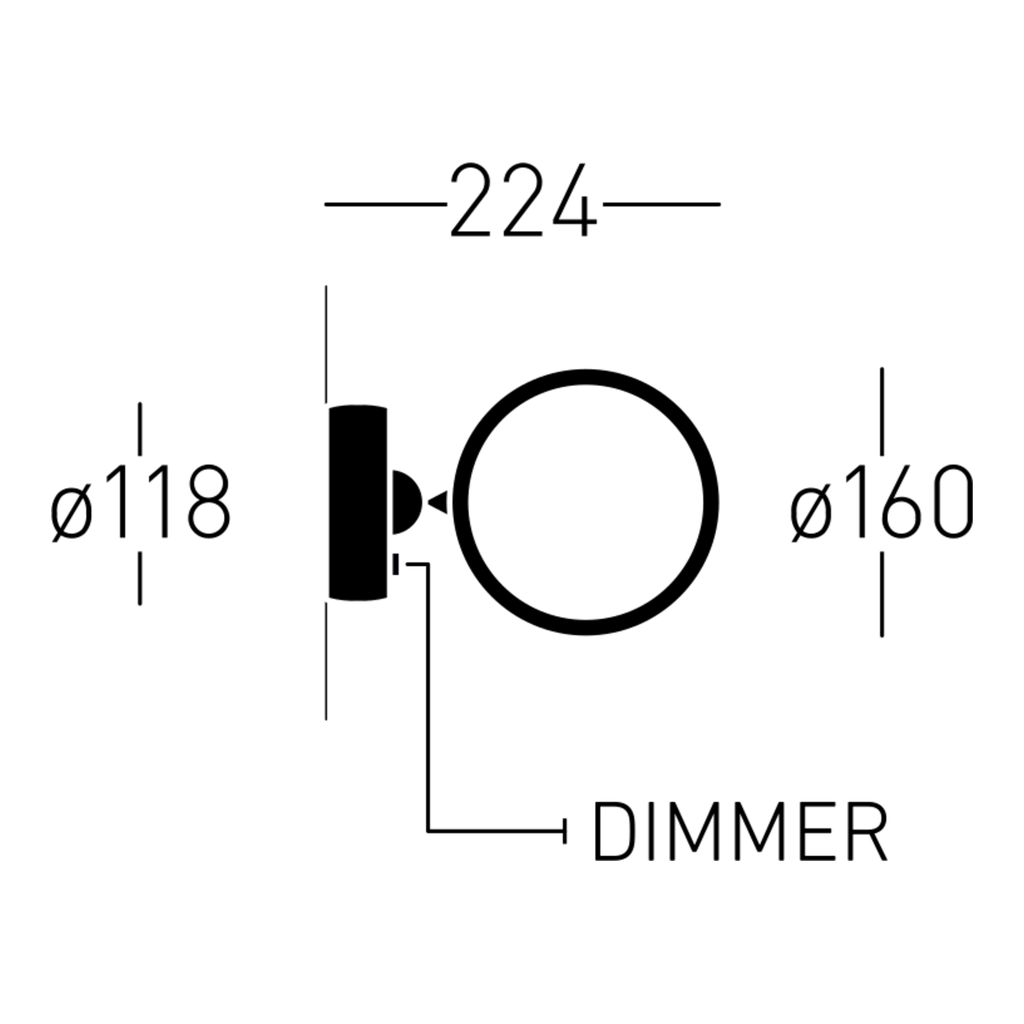

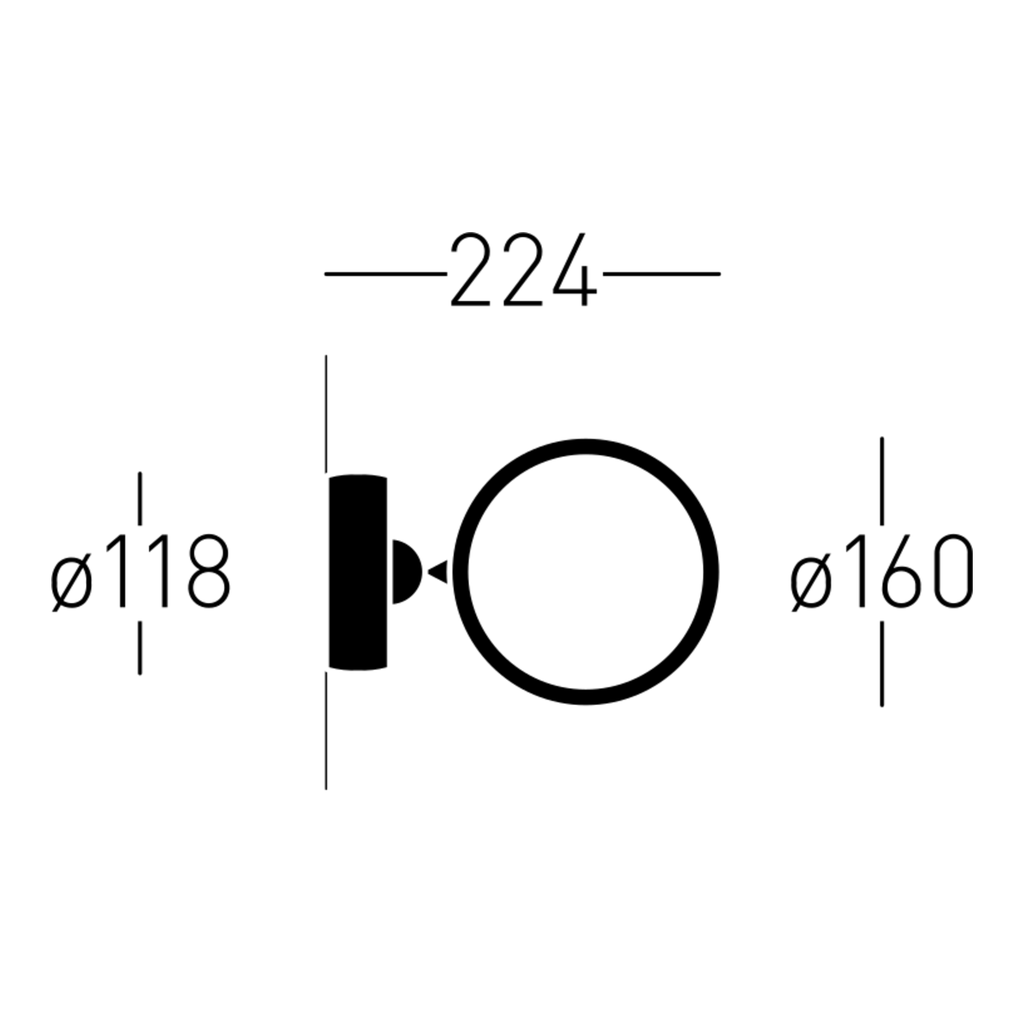

Dimensions
Diameter160 mm
Versions
Item numberLight colourControlLuminous flux
31.2155.116
31.2155.216
31.2156.U16		2700 KTRIAC
DALI-2
dimmer switch		1,008 lm
31.2155.117
31.2155.217
31.2156.U17		3000 KTRIAC
DALI-2
dimmer switch		1008 lm
31.2155.118
31.2155.218
31.2156.U18		4000 KTRIAC
DALI-2
dimmer switch		1,078 lm
