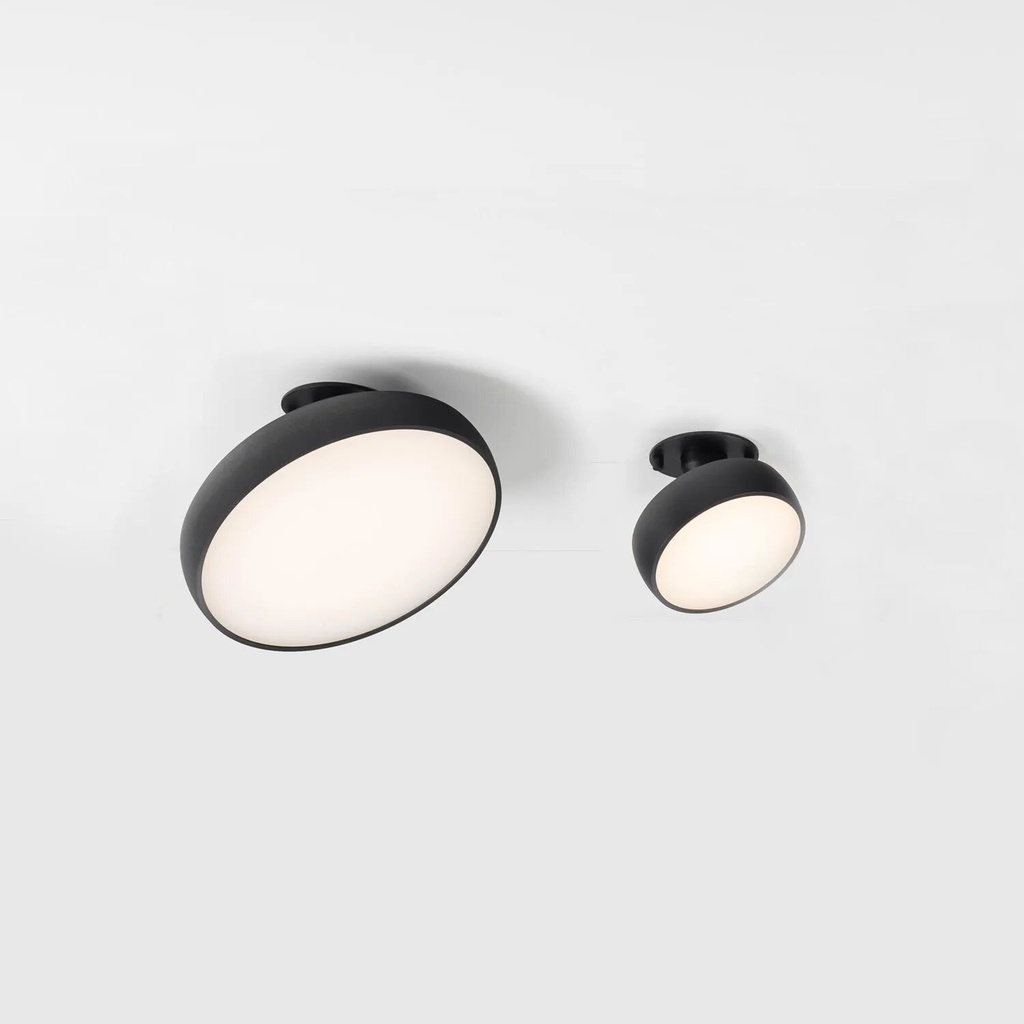

Myco IN Recessed Ceiling Light


  • Diffuser
  • Diameter
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 31.3102.H16.002
Add to wishlist
Contact Us
Documents
chors-myco-in-160-installation-manual.pdf chors-myco-in-300-installation-manual.pdf chors-myco-in-3d-data.zip

Myco IN recessed ceiling light, 1 × SLED/LED, selectable current, power consumption 12.6–36.4 W, total luminous flux 1008–2576 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power dissipation; PR/SPR achieve UGR ≤ 19 and comply with DIN EN 12464-1/-2; colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, excluding driver; suitable drivers for each dimming type (TRIAC/DALI-2/Casambi); where multiple luminaires are used, one driver per luminaire; operating current 350–700 mA/700 mA; protection rating IP20; finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number31.3102.* · 31.3103.*InstallationRecessed
Protection classIP20Weight0.8–1.2 kg
LED warranty5 years
ContentsDriver not included; a suitable driver is required for each light
Light
Light sourceLED · SLEDPower consumption12.6 W · 17.5 / 36.4 W
Luminous flux1008–2576 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3 · 30 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply350/700 mA DC · 700 mA DCControlvia the selected driver
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Diameter160–300 mmInstallation opening65 mm
Installation depth60 mm
Versions
Item numberAppearanceLight colourPowerBeam angleLuminous flux
31.3102.H16SOFT2,700 K12.6 W> 90°1,008 lm
31.3102.H17SOFT3000 K12.6 W> 90°1,008 lm
31.3102.H18SOFT4000 K12.6 W> 90°1,078 lm
31.3102.H26PR2700 K12.6 W60°1,324 lm
31.3102.H27PR3000 K12.6 W60°1,296 lm
31.3102.H28PR4000 K12.6 W60°1,296 lm
31.3102.H36SPR2700 K12.6 W60°1,386 lm
31.3102.H37SPR3000 K12.6 W60°1,324 lm
31.3102.H38SPR4000 K12.6 W60°1,417 lm
31.3103.I16SOFT2700 K17.5 / 36.4 W> 90°1,855 lm
31.3103.I17SOFT3000 K17.5 / 36.4 W> 90°1,855 lm
31.3103.I18SOFT4,000 K17.5 / 36.4 W> 90°1,960 lm
31.3103.I26PR2700 K17.5 / 36.4 W60°2,438 lm
31.3103.I27PR3000 K17.5 / 36.4 W60°2,438 lm
31.3103.I28PR4000 K17.5 / 36.4 W60°2,576 lm
31.3103.I36SPR2700 K17.5 / 36.4 W60°2,385 lm
31.3103.I37SPR3000 K17.5 / 36.4 W60°2,385 lm
31.3103.I38SPR4000 K17.5 / 36.4 W60°2,520 lm
