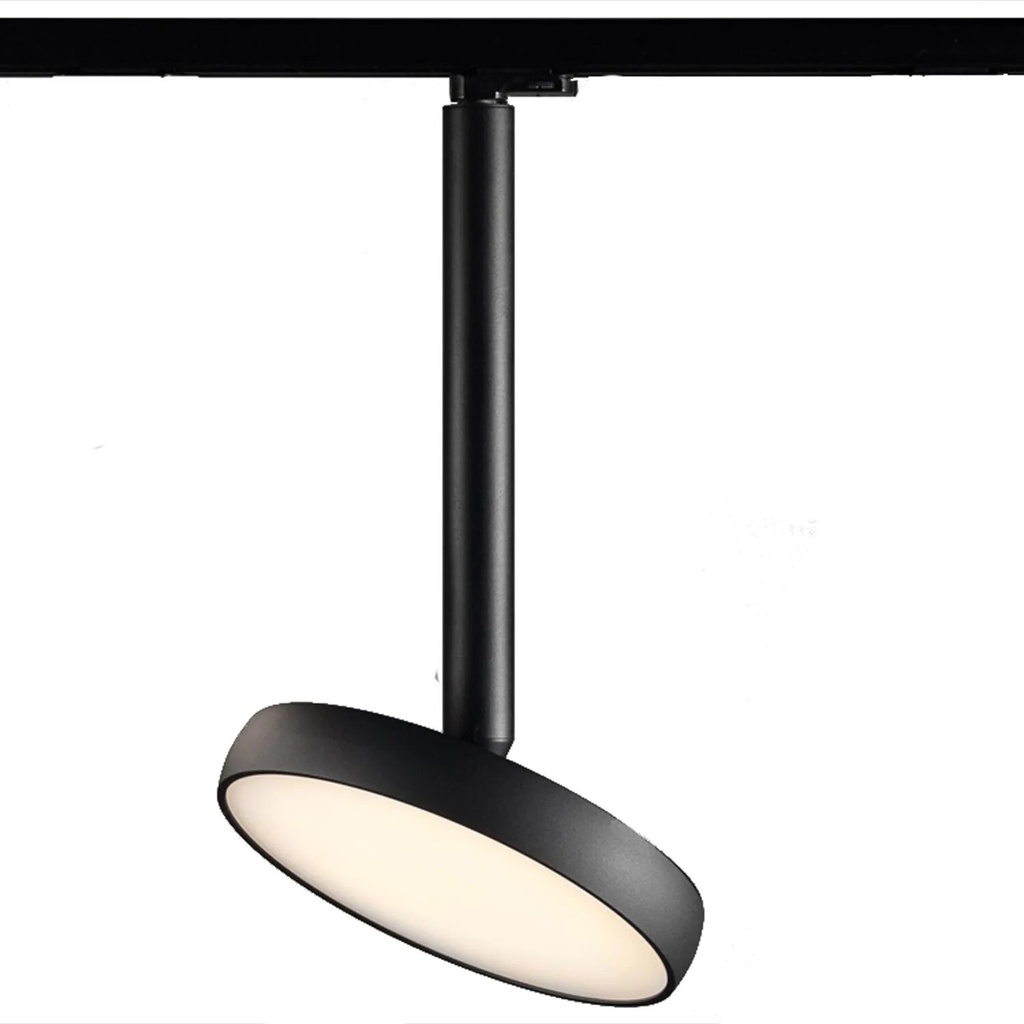

Myco 160/300 TRC 3PH Track Spotlight


  • Diffuser
  • Diameter
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 31.5108.116.002
Add to wishlist
Contact Us
Documents
chors-myco-trc-3d-data.zip chors-myco-trc-installation-manual.pdf

Myco 160/300 TRC 3PH track spotlight, 1 × SLED/LED, power consumption 12.6–17.5 W, total luminous flux 1008–2576 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power loss, PR (prismatic), beam angle 60° at 8% power loss, SPR (semi-prismatic), beam angle 60° at 10% power dissipation, PR/SPR achieve UGR ≤ 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number31.5108.* · 31.5109.*Installation3-phase track
Protection classIP20Weight0.8–1.3 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption12.6 W · 17.5 W
Luminous flux1008–2576 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3 · 30 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Diameter160–300 mm
Versions
Item numberAppearanceLight colourPowerBeam angleControlLuminous flux
31.5108.116
31.5108.216		SOFT2700 K12.6 W> 90°TRIAC
DALI-2		1008 lm
31.5108.117
31.5108.217		SOFT3000 K12.6 W> 90°TRIAC
DALI-2		1008 lm
31.5108.118
31.5108.218		SOFT4000 K12.6 W> 90°TRIAC
DALI-2		1078 lm
31.5108.126
31.5108.226		PR2700 K12.6 W60°TRIAC
DALI-2		1,324 lm
31.5108.127
31.5108.227		PR3000 K12.6 W60°TRIAC
DALI-2		1324 lm
31.5108.128
31.5108.228		PR4000 K12.6 W60°TRIAC
DALI-2		1,417 lm
31.5108.136
31.5108.236		SPR2700 K12.6 W60°TRIAC
DALI-2		1296 lm
31.5108.137
31.5108.237		SPR3000 K12.6 W60°TRIAC
DALI-2		1296 lm
31.5108.138
31.5108.238		SPR4000 K12.6 W60°TRIAC
DALI-2		1386 lm
31.5109.116
31.5109.216		SOFT2700 K17.5 W> 90°TRIAC
DALI-2		1,855 lm
31.5109.117
31.5109.217		SOFT3000 K17.5 W> 90°TRIAC
DALI-2		1,855 lm
31.5109.118
31.5109.218		SOFT4000 K17.5 W> 90°TRIAC
DALI-2		1,960 lm
31.5109.126
31.5109.226		PR2700 K17.5 W60°TRIAC
DALI-2		2438 lm
31.5109.127
31.5109.227		PR3000 K17.5 W60°TRIAC
DALI-2		2438 lm
31.5109.128
31.5109.228		PR4000 K17.5 W60°TRIAC
DALI-2		2576 lm
31.5109.136
31.5109.236		SPR2700 K17.5 W60°TRIAC
DALI-2		2385 lm
31.5109.137
31.5109.237		SPR3000 K17.5 W60°TRIAC
DALI-2		2385 lm
31.5109.138
31.5109.238		SPR4000 K17.5 W60°TRIAC
DALI-2		2520 lm
