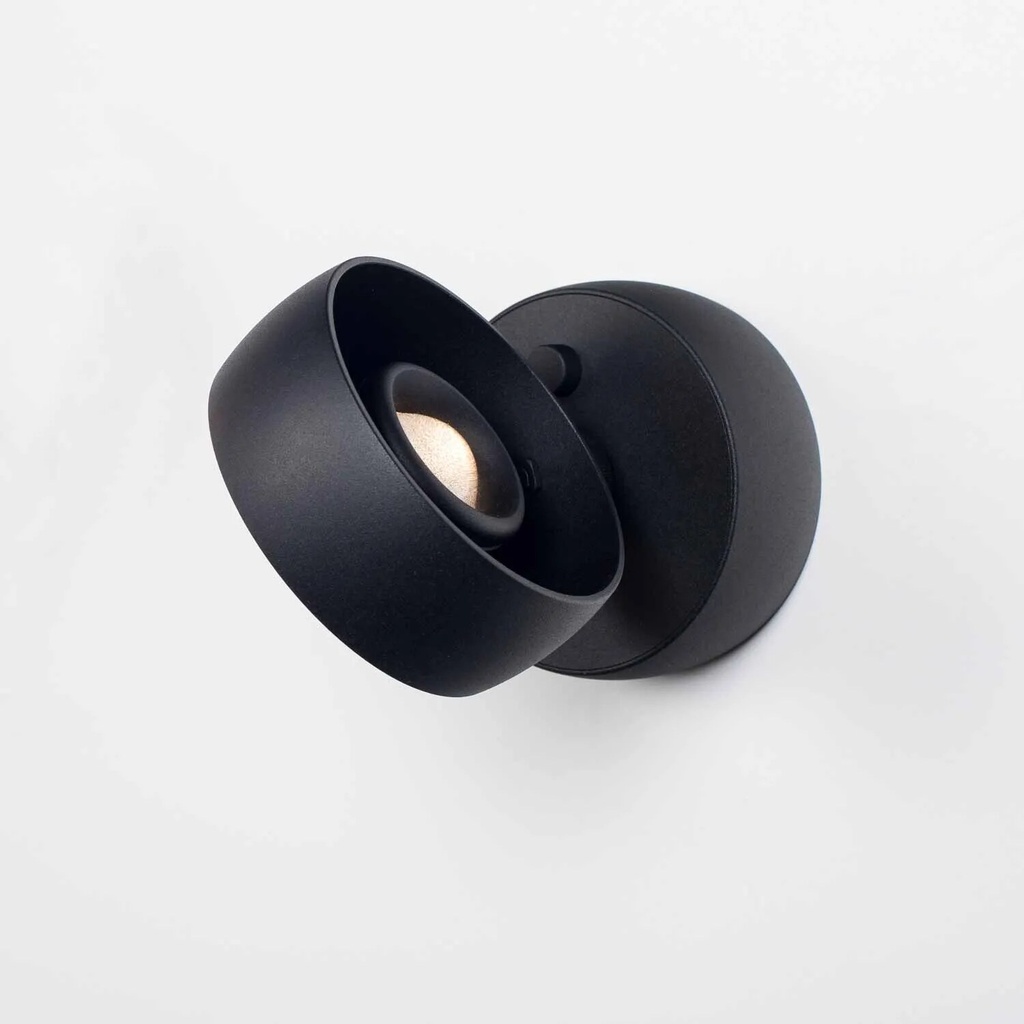

Myco 120 K Surface-mounted wall spotlight


  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 31.2153.16A.002
Add to wishlist
Contact Us
Documents
chors-myco-k-3d-data.zip chors-myco-k-installation-manual.pdf chors-myco-120-k-lichtdaten.pdf chors-myco-120-k-2700k-zoom-21.ldt chors-myco-120-k-2700k-zoom-56.ldt chors-myco-120-k-3000k-zoom-21.ldt chors-myco-120-k-3000k-zoom-56.ldt chors-myco-120-k-4000k-zoom-21.ldt chors-myco-120-k-4000k-zoom-56.ldt chors-myco-120-k-photometric-data.zip

Myco 120 K Surface-mounted wall spotlight, 1 × SLED, power consumption 12.3 W, total luminous flux 996–1113 lm, rotatable and swivelling spotlight with adjustable glass lens and a beam angle of approx. 15–60°, Colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI98, control options: DALI-2, built-in touch dimmer with flash memory and 30-minute sleep timer, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number31.2153.* · 31.2154.*InstallationWall mounting
Protection classIP20Weight0.9 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceSLEDPower consumption12.3 W
Luminous flux996–1113 lmBeam angle15–60°
OpticsGlass lens, adjustable from 15° to 60°
Colour temperatures2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 98 (Sunlike)
LED module18 V, MacAdam class 2Energy efficiency classF · G
Electrical
Power supply230 V, 50 HzControlDALI-2 · DIM switch · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified

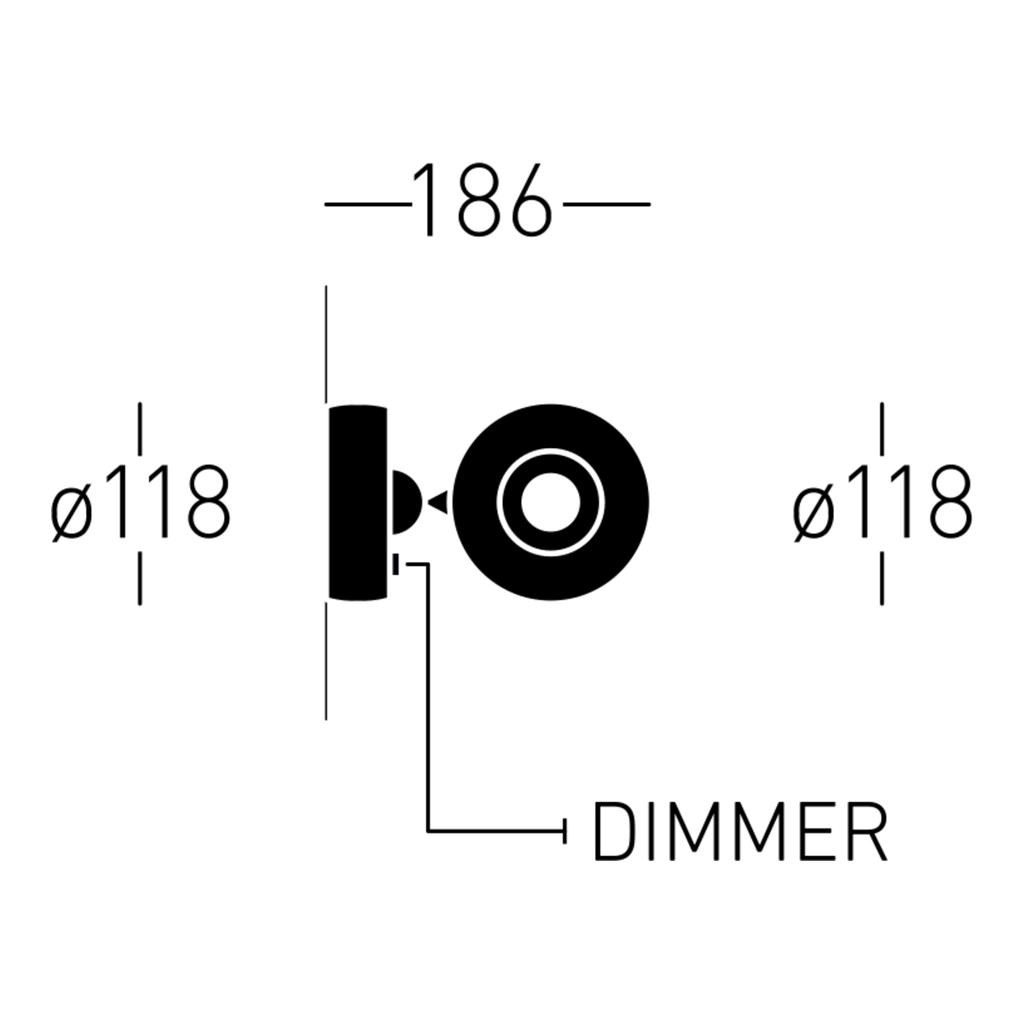

Dimensions
Diameter120 mm
Versions
Item numberLight colourControlLuminous flux
31.2153.16A
31.2153.26A
31.2154.U6A		2700 KTRIAC
DALI-2
dimmer switch		996 lm
31.2153.16B
31.2153.26B
31.2154.U6B		3000 KTRIAC
DALI-2
dimmer switch		1024 lm
31.2153.16C
31.2153.26C
31.2154.U6C		4000 KTRIAC
DALI-2
dimmer switch		1113 lm
