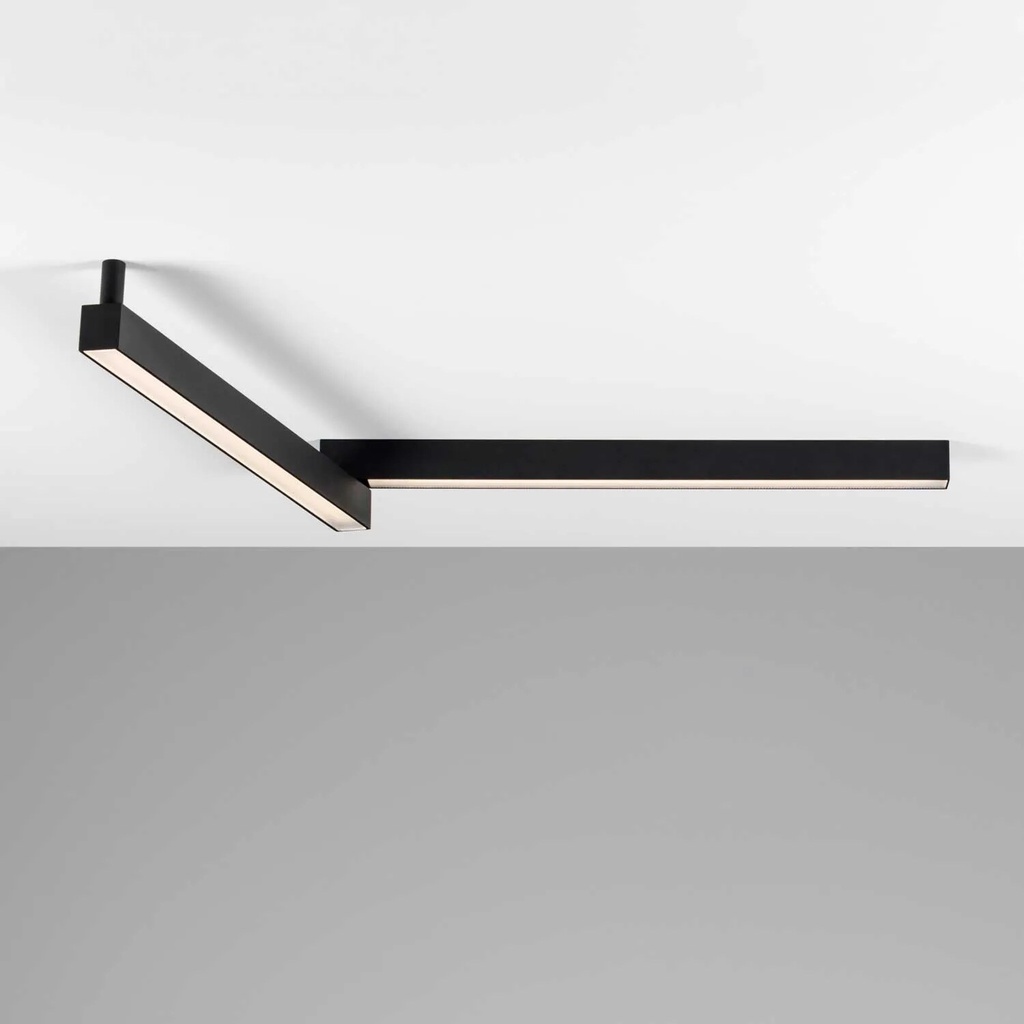

Thiny Snake ON Surface-mounted Ceiling Light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 22.1111.J16.002
Add to wishlist
Contact Us
Documents
chors-thiny-snake-on-3d-data.zip chors-thiny-snake-on-installation-manual.pdf

Thiny Snake ON surface-mounted ceiling light, 1 × SLED/LED, power consumption 12.6–31.5 W, total luminous flux 1008–3565 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power dissipation, PR/SPR achieve UGR <= 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, switchable, incl. driver, connection to 230 V AC/50 Hz, protection class IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number22.1111.* · 22.1112.* · 22.1113.* · 22.1114.*Installationsurface-mounted ceiling
Protection classIP20Weight0.9–1.8 kg
LED warranty5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption12.6 W · 18.9 W · 25.2 W · 31.5 W
Luminous flux1008–3565 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE
Electrical
Power supply230 V, 50 HzControlDALI-2 · non-dimmable
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified

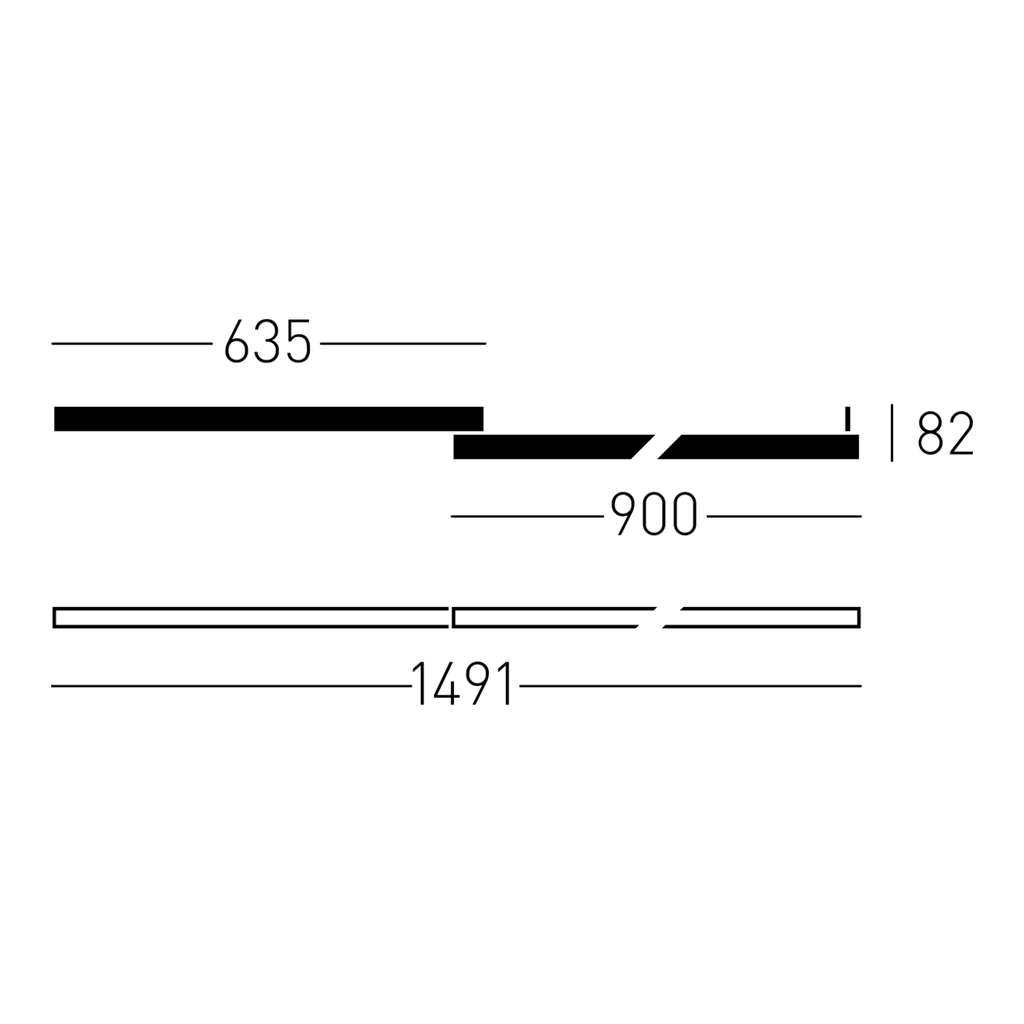

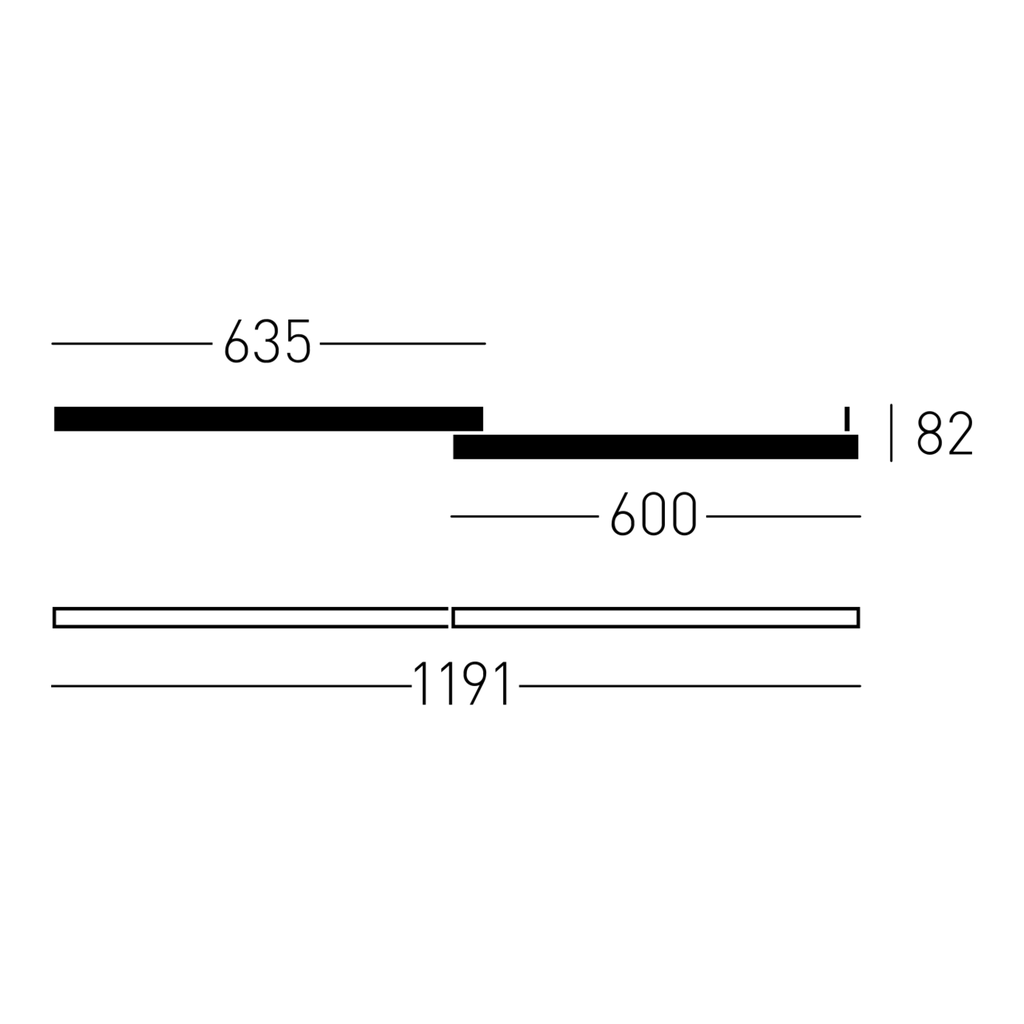

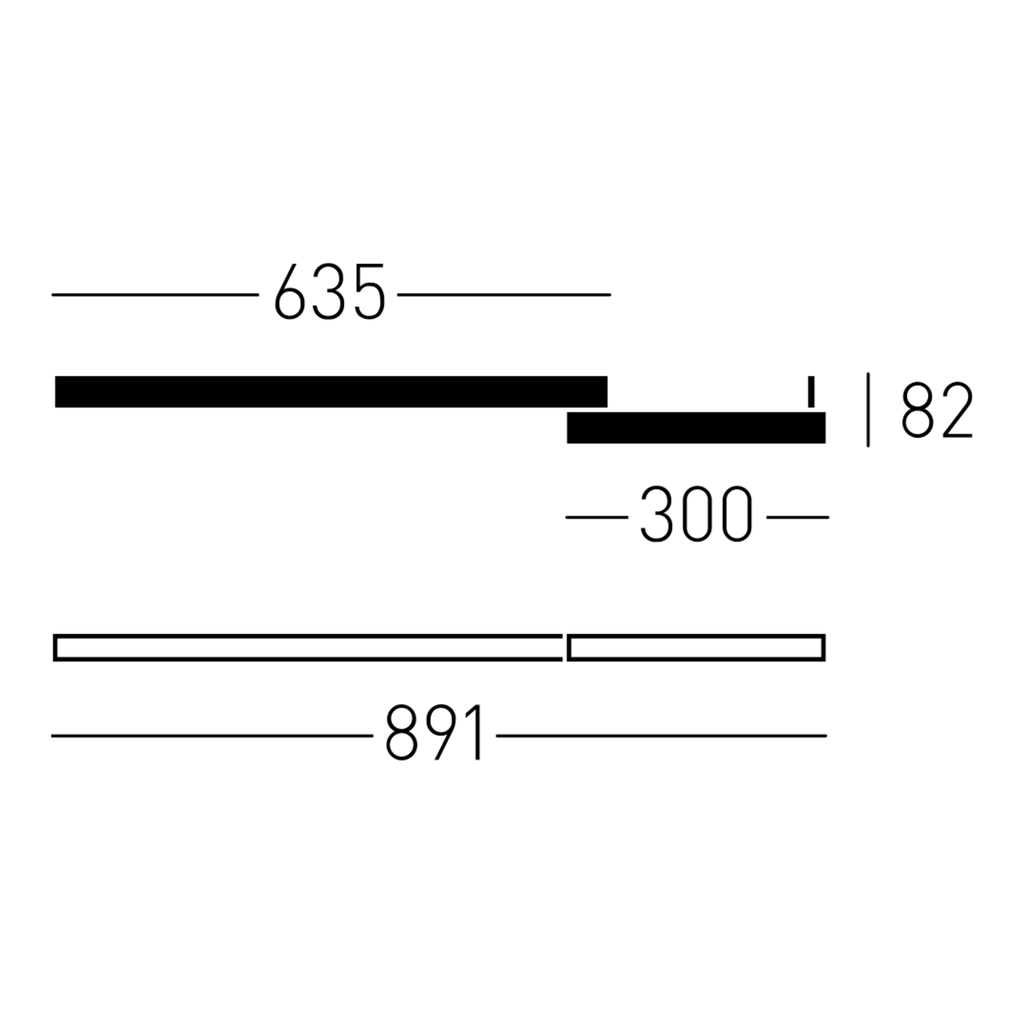

Dimensions
Length600–1500 mm
Versions
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
22.1111.J16
22.1111.T16		Thiny Snake 60 ONSOFT2700 K12.6 W> 90°not dimmable
DALI-2		1008 lm
22.1111.J17
22.1111.T17		Thiny Snake 60 ONSOFT3000 K12.6 W> 90°not dimmable
DALI-2		1008 lm
22.1111.J18
22.1111.T18		Thiny Snake 60 ONSOFT4000 K12.6 W> 90°not dimmable
DALI-2		1090 lm
22.1111.J26
22.1111.T26		Thiny Snake 60 ONPR2700 K12.6 W60°not dimmable
DALI-2		1325 lm
22.1111.J27
22.1111.T27		Thiny Snake 60 ONPR3000 K12.6 W60°not dimmable
DALI-2		1325 lm
22.1111.J28
22.1111.T28		Thiny Snake 60 ONPR4000 K12.6 W60°not dimmable
DALI-2		1426 lm
22.1111.J36
22.1111.T36		Thiny Snake 60 ONSPR2700 K12.6 W60°not dimmable
DALI-2		1296 lm
22.1111.J37
22.1111.T37		Thiny Snake 60 ONSPR3000 K12.6 W60°non-dimmable
DALI-2		1296 lm
22.1111.J38
22.1111.T38		Thiny Snake 60 ONSPR4000 K12.6 W60°not dimmable
DALI-2		1395 lm
22.1112.J16
22.1112.T16		Thiny Snake 90 ONSOFT2700 K18.9 W> 90°not dimmable
DALI-2		1512 lm
22.1112.J17
22.1112.T17		Thiny Snake 90 ONSOFT3000 K18.9 W> 90°not dimmable
DALI-2		1512 lm
22.1112.J18
22.1112.T18		Thiny Snake 90 ONSOFT4000 K18.9 W> 90°not dimmable
DALI-2		1628 lm
22.1112.J26
22.1112.T26		Thiny Snake 90 ONPR2700 K18.9 W60°not dimmable
DALI-2		1988 lm
22.1112.J27
22.1112.T27		Thiny Snake 90 ONPR3000 K18.9 W60°non-dimmable
DALI-2		1988 lm
22.1112.J28
22.1112.T28		Thiny Snake 90 ONPR4000 K18.9 W60°not dimmable
DALI-2		2139 lm
22.1112.J36
22.1112.T36		Thiny Snake 90 ONSPR2700 K18.9 W60°not dimmable
DALI-2		1944 lm
22.1112.J37
22.1112.T37		Thiny Snake 90 ONSPR3000 K18.9 W60°not dimmable
DALI-2		1944 lm
22.1112.J38
22.1112.T38		Thiny Snake 90 ONSPR4000 K18.9 W60°not dimmable
DALI-2		2093 lm
22.1113.J16
22.1113.T16		Thiny Snake ONSOFT2700 K25.2 W> 90°not dimmable
DALI-2		2016 lm
22.1113.J17
22.1113.T17		Thiny Snake ONSOFT3000 K25.2 W> 90°not dimmable
DALI-2		2016 lm
22.1113.J18
22.1113.T18		Thiny Snake ONSOFT4000 K25.2 W> 90°not dimmable
DALI-2		2170 lm
22.1113.J26
22.1113.T26		Thiny Snake ONPR2700 K25.2 W60°non-dimmable
DALI-2		2,650 lm
22.1113.J27
22.1113.T27		Thiny Snake ONPR3000 K25.2 W60°not dimmable
DALI-2		2,650 lm
22.1113.J28
22.1113.T28		Thiny Snake ONPR4000 K25.2 W60°not dimmable
DALI-2		2852 lm
22.1113.J36
22.1113.T36		Thiny Snake ONSPR2700 K25.2 W60°not dimmable
DALI-2		2592 lm
22.1113.J37
22.1113.T37		Thiny Snake ONSPR3000 K25.2 W60°not dimmable
DALI-2		2592 lm
22.1113.J38
22.1113.T38		Thiny Snake ONSPR4000 K25.2 W60°non-dimmable
DALI-2		2790 lm
22.1114.J16
22.1114.T16		Thiny Snake ONSOFT2700 K31.5 W> 90°not dimmable
DALI-2		2520 lm
22.1114.J17
22.1114.T17		Thiny Snake ONSOFT3000 K31.5 W> 90°not dimmable
DALI-2		2520 lm
22.1114.J18
22.1114.T18		Thiny Snake ONSOFT4000 K31.5 W> 90°not dimmable
DALI-2		2713 lm
22.1114.J26
22.1114.T26		Thiny Snake ONPR2700 K31.5 W60°non-dimmable
DALI-2		3312 lm
22.1114.J27
22.1114.T27		Thiny Snake ONPR3000 K31.5 W60°non-dimmable
DALI-2		3312 lm
22.1114.J28
22.1114.T28		Thiny Snake ONPR4000 K31.5 W60°non-dimmable
DALI-2		3,565 lm
22.1114.J36
22.1114.T36		Thiny Snake ONSPR2700 K31.5 W60°non-dimmable
DALI-2		3240 lm
22.1114.J37
22.1114.T37		Thiny Snake ONSPR3000 K31.5 W60°non-dimmable
DALI-2		3240 lm
22.1114.J38
22.1114.T38		Thiny Snake ONSPR4000 K31.5 W60°not dimmable
DALI-2		3488 lm
