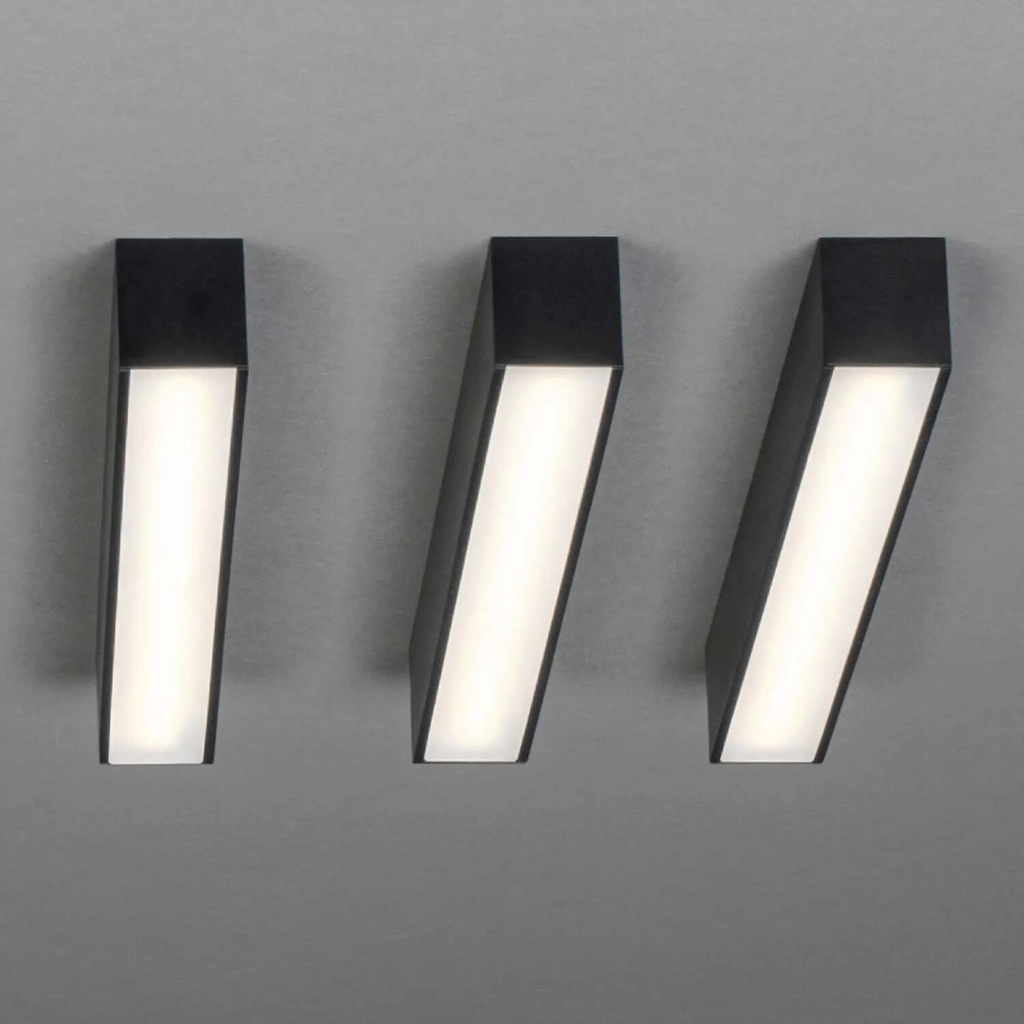

Thiny Slim TR48 48V busbar light

We use AI-generated or AI-enhanced product photos.

Thiny Slim TR48 48V busbar light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 22.B101.L16.002
Add to wishlist
Contact Us

Thiny Slim TR48 48V track light, 1 × SLED/LED, power consumption 6.3–18.9 W, total luminous flux 504–2139 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power loss, PR/SPR achieve UGR ≤ 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, switchable, with 48 V adapter for STUCCHI® Evo ST1/ST8/ST3 (transformer sold separately), 48 V DC, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number22.B101.* · 22.B102.* · 22.B103.* · 22.B104.* · 22.B105.* · 22.B106.*Installation48 V track
Protection classIP20Weight0.6–1 kg
LED warranty5 years
Light
Light sourceLED · SLEDPower consumption6.3 W · 12.6 W · 18.9 W
Luminous flux504–2139 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
Energy efficiency classE · F
Electrical
Power supply48 V DCControlDALI-2 · Switching, circuit 1 · Switching, circuit 2
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Versions
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
22.B101.L16Thiny Slim 30 A TR48SOFT2700 K6.3 W> 90°Switching, Circuit 1504 lm
22.B101.L17Thiny Slim 30 A TR48SOFT3000 K6.3 W> 90°Switching, Circuit 1504 lm
22.B101.L18Thiny Slim 30 A TR48SOFT4000 K6.3 W> 90°Switching, Circuit 1543 lm
22.B101.L26Thiny Slim 30 A TR48PR2700 K6.3 W60°Switching, Circuit 1663 lm
22.B101.L27Thiny Slim 30 A TR48PR3000 K6.3 W60°Switching, Circuit 1663 lm
22.B101.L28Thiny Slim 30 A TR48PR4000 K6.3 W60°Switching, Circuit 1713 lm
22.B101.L36Thiny Slim 30 A TR48SPR2700 K6.3 W60°Switching, Circuit 1648 lm
22.B101.L37Thiny Slim 30 A TR48SPR3000 K6.3 W60°Switching, Circuit 1648 lm
22.B101.L38Thiny Slim 30 A TR48SPR4000 K6.3 W60°Switching, Circuit 1698 lm
22.B101.M16Thiny Slim 30 TR48SOFT2700 K6.3 W> 90°DALI-2504 lm
22.B101.M17Thiny Slim 30 TR48SOFT3000 K6.3 W> 90°DALI-2504 lm
22.B101.M18Thiny Slim 30 TR48SOFT4000 K6.3 W> 90°DALI-2543 lm
22.B101.M26Thiny Slim 30 TR48PR2700 K6.3 W60°DALI-2663 lm
22.B101.M27Thiny Slim 30 TR48PR3000 K6.3 W60°DALI-2663 lm
22.B101.M28Thiny Slim 30 TR48PR4000 K6.3 W60°DALI-2713 lm
22.B101.M36Thiny Slim 30 TR48SPR2700 K6.3 W60°DALI-2648 lm
22.B101.M37Thiny Slim 30 TR48SPR3000 K6.3 W60°DALI-2648 lm
22.B101.M38Thiny Slim 30 TR48SPR4000 K6.3 W60°DALI-2698 lm
22.B102.L16Thiny Slim 30 B TR48SOFT2700 K6.3 W> 90°Switching, Circuit 2504 lm
22.B102.L17Thiny Slim 30 B TR48SOFT3000 K6.3 W> 90°Switching, Circuit 2504 lm
22.B102.L18Thiny Slim 30 B TR48SOFT4000 K6.3 W> 90°Switching, Circuit 2543 lm
22.B102.L26Thiny Slim 30 B TR48PR2700 K6.3 W60°Switching, circuit 2663 lm
22.B102.L27Thiny Slim 30 B TR48PR3000 K6.3 W60°Switching, Circuit 2663 lm
22.B102.L28Thiny Slim 30 B TR48PR4000 K6.3 W60°Switching, Circuit 2713 lm
22.B102.L36Thiny Slim 30 B TR48SPR2700 K6.3 W60°Switching, circuit 2648 lm
22.B102.L37Thiny Slim 30 B TR48SPR3000 K6.3 W60°Switching, circuit 2648 lm
22.B102.L38Thiny Slim 30 B TR48SPR4000 K6.3 W60°Switching, Circuit 2698 lm
22.B103.L16Thiny Slim 60 A TR48SOFT2700 K12.6 W> 90°Switching, Circuit 11008 lm
22.B103.L17Thiny Slim 60 A TR48SOFT3000 K12.6 W> 90°Switching, Circuit 11008 lm
22.B103.L18Thiny Slim 60 A TR48SOFT4000 K12.6 W> 90°Switching, Circuit 11090 lm
22.B103.L26Thiny Slim 60 A TR48PR2700 K12.6 W60°Switching, Circuit 11325 lm
22.B103.L27Thiny Slim 60 A TR48PR3000 K12.6 W60°Switching, Circuit 11325 lm
22.B103.L28Thiny Slim 60 A TR48PR4000 K12.6 W60°Switching, Circuit 11426 lm
22.B103.L36Thiny Slim 60 A TR48SPR2700 K12.6 W60°Switching, Circuit 11296 lm
22.B103.L37Thiny Slim 60 A TR48SPR3000 K12.6 W60°Switching, Circuit 11296 lm
22.B103.L38Thiny Slim 60 A TR48SPR4000 K12.6 W60°Switching, Circuit 11395 lm
22.B103.M16Thiny Slim 60 TR48SOFT2700 K12.6 W> 90°DALI-21008 lm
22.B103.M17Thiny Slim 60 TR48SOFT3000 K12.6 W> 90°DALI-21008 lm
22.B103.M18Thiny Slim 60 TR48SOFT4000 K12.6 W> 90°DALI-21090 lm
22.B103.M26Thiny Slim 60 TR48PR2700 K12.6 W60°DALI-21325 lm
22.B103.M27Thiny Slim 60 TR48PR3000 K12.6 W60°DALI-21325 lm
22.B103.M28Thiny Slim 60 TR48PR4000 K12.6 W60°DALI-21426 lm
22.B103.M36Thiny Slim 60 TR48SPR2700 K12.6 W60°DALI-21296 lm
22.B103.M37Thiny Slim 60 TR48SPR3000 K12.6 W60°DALI-21296 lm
22.B103.M38Thiny Slim 60 TR48SPR4000 K12.6 W60°DALI-21395 lm
22.B104.L16Thiny Slim 60 B TR48SOFT2700 K12.6 W> 90°Switching, Circuit 21008 lm
22.B104.L17Thiny Slim 60 B TR48SOFT3000 K12.6 W> 90°Switching, Circuit 21008 lm
22.B104.L18Thiny Slim 60 B TR48SOFT4000 K12.6 W> 90°Switching, Circuit 21090 lm
22.B104.L26Thiny Slim 60 B TR48PR2700 K12.6 W60°Switching, circuit 21325 lm
22.B104.L27Thiny Slim 60 B TR48PR3000 K12.6 W60°Switching, Circuit 21325 lm
22.B104.L28Thiny Slim 60 B TR48PR4000 K12.6 W60°Switching, Circuit 21426 lm
22.B104.L36Thiny Slim 60 B TR48SPR2700 K12.6 W60°Switching, Circuit 21296 lm
22.B104.L37Thiny Slim 60 B TR48SPR3000 K12.6 W60°Switching, Circuit 21296 lm
22.B104.L38Thiny Slim 60 B TR48SPR4000 K12.6 W60°Switching, Circuit 21395 lm
22.B105.L16Thiny Slim 90 A TR48SOFT2700 K18.9 W> 90°Switching, Circuit 11512 lm
22.B105.L17Thiny Slim 90 A TR48SOFT3000 K18.9 W> 90°Switching, Circuit 11512 lm
22.B105.L18Thiny Slim 90 A TR48SOFT4000 K18.9 W> 90°Switching, Circuit 11628 lm
22.B105.L26Thiny Slim 90 A TR48PR2700 K18.9 W60°Switching, Circuit 11988 lm
22.B105.L27Thiny Slim 90 A TR48PR3000 K18.9 W60°Switching, Circuit 11988 lm
22.B105.L28Thiny Slim 90 A TR48PR4000 K18.9 W60°Switching, Circuit 12139 lm
22.B105.L36Thiny Slim 90 A TR48SPR2700 K18.9 W60°Switching, circuit 11944 lm
22.B105.L37Thiny Slim 90 A TR48SPR3000 K18.9 W60°Switching, Circuit 11944 lm
22.B105.L38Thiny Slim 90 A TR48SPR4000 K18.9 W60°Switching, Circuit 12093 lm
22.B105.M16Thiny Slim 90 TR48SOFT2700 K18.9 W> 90°DALI-21512 lm
22.B105.M17Thiny Slim 90 TR48SOFT3000 K18.9 W> 90°DALI-21512 lm
22.B105.M18Thiny Slim 90 TR48SOFT4000 K18.9 W> 90°DALI-21628 lm
22.B105.M26Thiny Slim 90 TR48PR2700 K18.9 W60°DALI-21988 lm
22.B105.M27Thiny Slim 90 TR48PR3000 K18.9 W60°DALI-21988 lm
22.B105.M28Thiny Slim 90 TR48PR4000 K18.9 W60°DALI-22139 lm
22.B105.M36Thiny Slim 90 TR48SPR2700 K18.9 W60°DALI-21944 lm
22.B105.M37Thiny Slim 90 TR48SPR3000 K18.9 W60°DALI-21944 lm
22.B105.M38Thiny Slim 90 TR48SPR4000 K18.9 W60°DALI-22093 lm
22.B106.L16Thiny Slim 90 B TR48SOFT2700 K18.9 W> 90°Switching, circuit 21512 lm
22.B106.L17Thiny Slim 90 B TR48SOFT3000 K18.9 W> 90°Switching, Circuit 21512 lm
22.B106.L18Thiny Slim 90 B TR48SOFT4000 K18.9 W> 90°Switching, Circuit 21628 lm
22.B106.L26Thiny Slim 90 B TR48PR2700 K18.9 W60°Switching, circuit 21988 lm
22.B106.L27Thiny Slim 90 B TR48PR3000 K18.9 W60°Switching, Circuit 21988 lm
22.B106.L28Thiny Slim 90 B TR48PR4000 K18.9 W60°Switching, Circuit 22139 lm
22.B106.L36Thiny Slim 90 B TR48SPR2700 K18.9 W60°Switching, Circuit 21944 lm
22.B106.L37Thiny Slim 90 B TR48SPR3000 K18.9 W60°Switching, circuit 21944 lm
22.B106.L38Thiny Slim 90 B TR48SPR4000 K18.9 W60°Switching, Circuit 22093 lm
