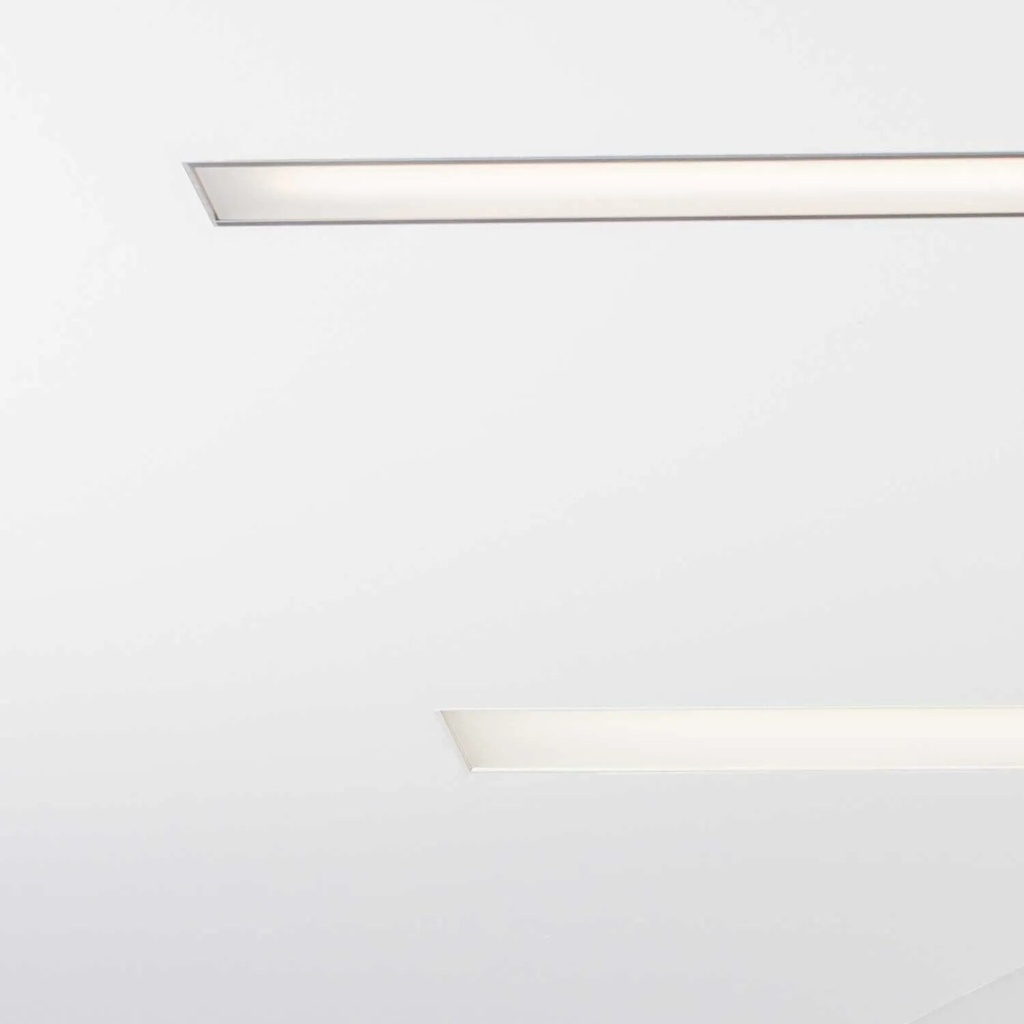

Thiny Slim RT IN Recessed Ceiling Light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
  • Light colour
Delivery time approx. 4 weeks
Item no. 22.3106.116.002
Add to wishlist
Contact Us
Documents
chors-thiny-slim-rt-3d-data.zip chors-thiny-slim-rt-installation-manual.pdf

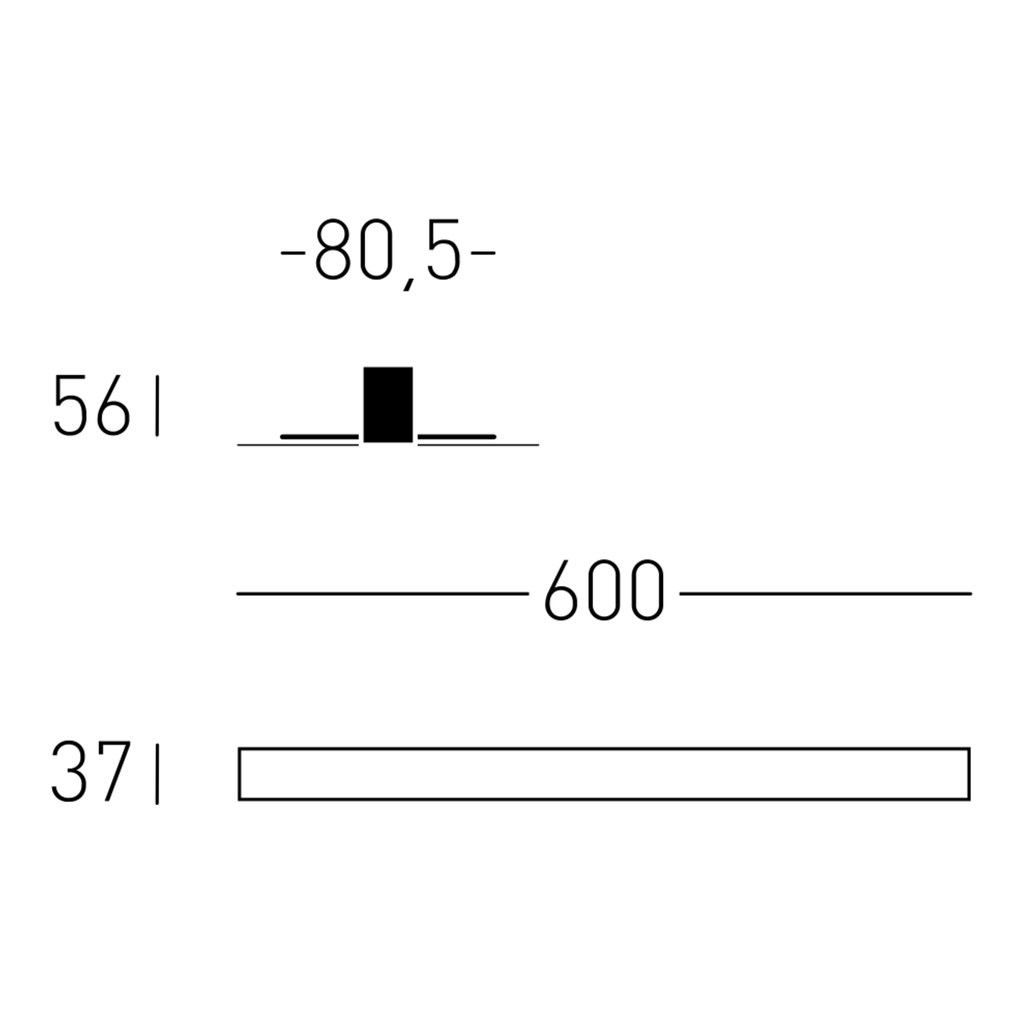

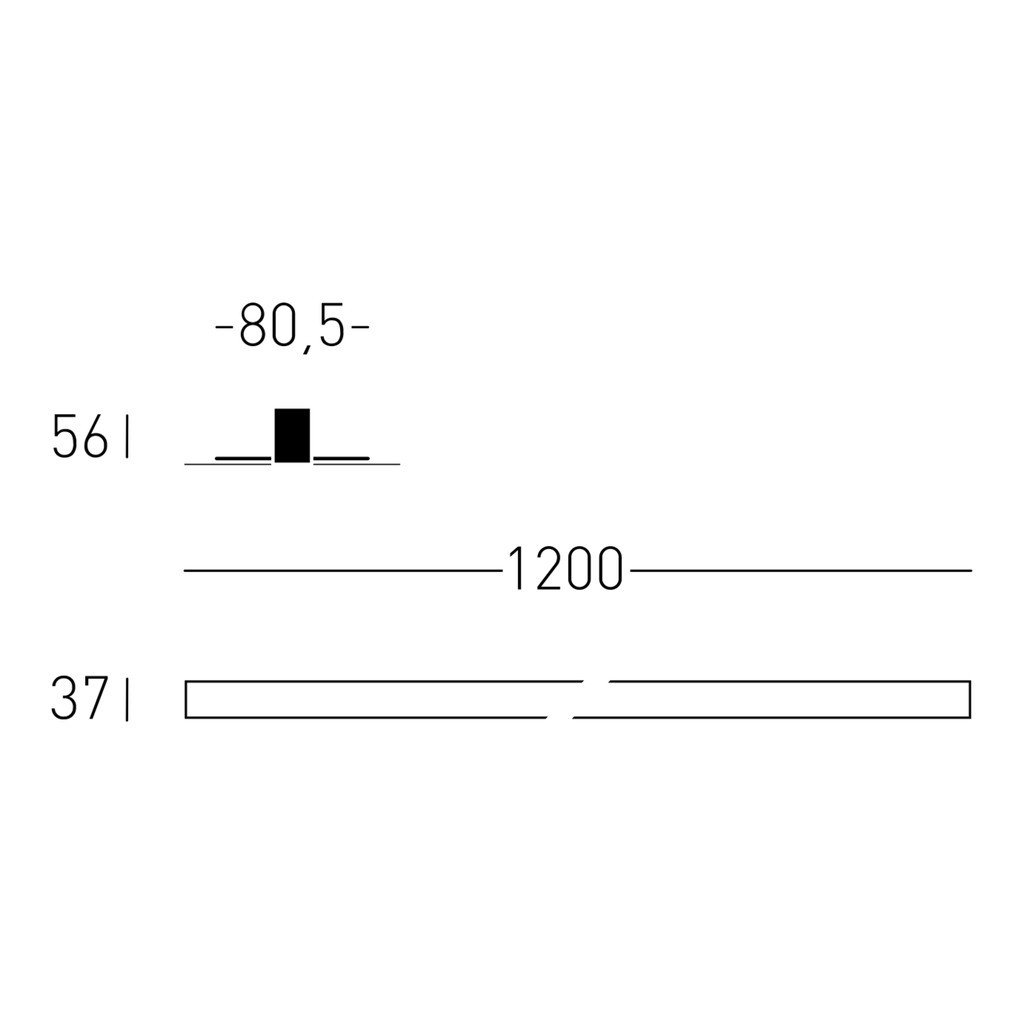

Thiny Slim RT IN recessed ceiling light, 1 × SLED/LED, power consumption 6.3–31.5 W, total luminous flux 504–3565 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power dissipation, PR/SPR achieve UGR ≤ 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, phase-cut dimmer (TRIAC), incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, frameless, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number22.3106.* · 22.3107.* · 22.3108.* · 22.3109.* · 22.3110.*InstallationRecessed
Protection classIP20Weight0.6–1.4 kg
Warranty (LED)5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption6.3 W · 12.6 W · 18.9 W · 25.2 W · 31.5 W
Luminous flux504–3565 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · TRIAC
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
Dimensions
Length300–1500 mmInstallation opening68 x 1215 mm · 68 x 1515 mm · 68 x 315 mm · 68 x 615 mm · 68 x 915 mm
Installation depth76 mm
Versions
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
22.3106.116
22.3106.216		Thiny Slim RT 30SOFT2700 K6.3 W> 90°TRIAC
DALI-2		504 lm
22.3106.117
22.3106.217		Thiny Slim RT 30SOFT3000 K6.3 W> 90°TRIAC
DALI-2		504 lm
22.3106.118
22.3106.218		Thiny Slim RT 30SOFT4000 K6.3 W60°TRIAC
DALI-2		543 lm
22.3106.126
22.3106.226		Thiny Slim RT 30PR2700 K6.3 W60°TRIAC
DALI-2		663 lm
22.3106.127
22.3106.227		Thiny Slim RT 30PR3000 K6.3 W60°TRIAC
DALI-2		663 lm
22.3106.128
22.3106.228		Thiny Slim RT 30PR4000 K6.3 W60°TRIAC
DALI-2		713 lm
22.3106.136
22.3106.236		Thiny Slim RT 30SPR2700 K6.3 W60°TRIAC
DALI-2		648 lm
22.3106.137
22.3106.237		Thiny Slim RT 30SPR3000 K6.3 W60°TRIAC
DALI-2		648 lm
22.3106.138
22.3106.238		Thiny Slim RT 30SPR4000 K6.3 W> 90°TRIAC
DALI-2		698 lm
22.3107.116
22.3107.216		Thiny Slim RT 60SOFT2700 K12.6 W> 90°TRIAC
DALI-2		1008 lm
22.3107.117
22.3107.217		Thiny Slim RT 60SOFT3000 K12.6 W> 90°TRIAC
DALI-2		1008 lm
22.3107.118
22.3107.218		Thiny Slim RT 60SOFT4000 K12.6 W60°TRIAC
DALI-2		1,090 lm
22.3107.126
22.3107.226		Thiny Slim RT 60PR2700 K12.6 W60°TRIAC
DALI-2		1,325 lm
22.3107.127
22.3107.227		Thiny Slim RT 60PR3000 K18.9 W60°TRIAC
DALI-2		1325 lm
22.3107.128
22.3107.228		Thiny Slim RT 60PR4000 K12.6 W60°TRIAC
DALI-2		1426 lm
22.3107.136
22.3107.236		Thiny Slim RT 60SPR2700 K12.6 W60°TRIAC
DALI-2		1296 lm
22.3107.137
22.3107.237		Thiny Slim RT 60SPR3000 K18.9 W60°TRIAC
DALI-2		1296 lm
22.3107.138
22.3107.238		Thiny Slim RT 60SPR4000 K12.6 W> 90°TRIAC
DALI-2		1395 lm
22.3108.116
22.3108.216		Thiny Slim RT 90SOFT2700 K18.9 W> 90°TRIAC
DALI-2		1,512 lm
22.3108.117
22.3108.217		Thiny Slim RT 90SOFT3000 K18.9 W> 90°TRIAC
DALI-2		1512 lm
22.3108.118
22.3108.218		Thiny Slim RT 90SOFT4000 K18.9 W60°TRIAC
DALI-2		1628 lm
22.3108.126
22.3108.226		Thiny Slim RT 90PR2,700 K18.9 W60°TRIAC
DALI-2		1988 lm
22.3108.127
22.3108.227		Thiny Slim RT 90PR3,000 K18.9 W60°TRIAC
DALI-2		1988 lm
22.3108.128
22.3108.228		Thiny Slim RT 90PR4,000 K18.9 W60°TRIAC
DALI-2		2139 lm
22.3108.136
22.3108.236		Thiny Slim RT 90SPR2700 K18.9 W60°TRIAC
DALI-2		1944 lm
22.3108.137
22.3108.237		Thiny Slim RT 90SPR3,000 K18.9 W60°TRIAC
DALI-2		1944 lm
22.3108.138
22.3108.238		Thiny Slim RT 90SPR4,000 K18.9 W> 90°TRIAC
DALI-2		2093 lm
22.3109.116
22.3109.216		Thiny Slim RTSOFT2700 K25.2 W> 90°TRIAC
DALI-2		2016 lm
22.3109.117
22.3109.217		Thiny Slim RTSOFT3000 K25.2 W> 90°TRIAC
DALI-2		2016 lm
22.3109.118
22.3109.218		Thiny Slim RTSOFT4,000 K25.2 W60°TRIAC
DALI-2		2170 lm
22.3109.126
22.3109.226		Thiny Slim RTPR2700 K25.2 W60°TRIAC
DALI-2		2,650 lm
22.3109.127
22.3109.227		Thiny Slim RTPR3000 K25.2 W60°TRIAC
DALI-2		2,650 lm
22.3109.128
22.3109.228		Thiny Slim RTPR4000 K25.2 W60°TRIAC
DALI-2		2,852 lm
22.3109.136
22.3109.236		Thiny Slim RTSPR2700 K25.2 W60°TRIAC
DALI-2		2592 lm
22.3109.137
22.3109.237		Thiny Slim RTSPR3000 K25.2 W60°TRIAC
DALI-2		2592 lm
22.3109.138
22.3109.238		Thiny Slim RTSPR4000 K25.2 W> 90°TRIAC
DALI-2		2790 lm
22.3110.116
22.3110.216		Thiny Slim RTSOFT2700 K31.5 W> 90°TRIAC
DALI-2		2520 lm
22.3110.117
22.3110.217		Thiny Slim RTSOFT3000 K31.5 W> 90°TRIAC
DALI-2		2520 lm
22.3110.118
22.3110.218		Thiny Slim RTSOFT4000 K31.5 W60°TRIAC
DALI-2		2713 lm
22.3110.126
22.3110.226		Thiny Slim RTPR2700 K31.5 W60°TRIAC
DALI-2		3,312 lm
22.3110.127
22.3110.227		Thiny Slim RTPR3000 K31.5 W60°TRIAC
DALI-2		3312 lm
22.3110.128
22.3110.228		Thiny Slim RTPR4000 K31.5 W60°TRIAC
DALI-2		3,565 lm
22.3110.136
22.3110.236		Thiny Slim RTSPR2700 K31.5 W60°TRIAC
DALI-2		3240 lm
22.3110.137
22.3110.237		Thiny Slim RTSPR3000 K31.5 W60°TRIAC
DALI-2		3240 lm
22.3110.138Thiny Slim RTSPR4000 K31.5 W> 90°TRIAC3,488 lm
22.3110.238Thiny Slim RTSPR4000 K31.5 W60°DALI-23,488 lm
