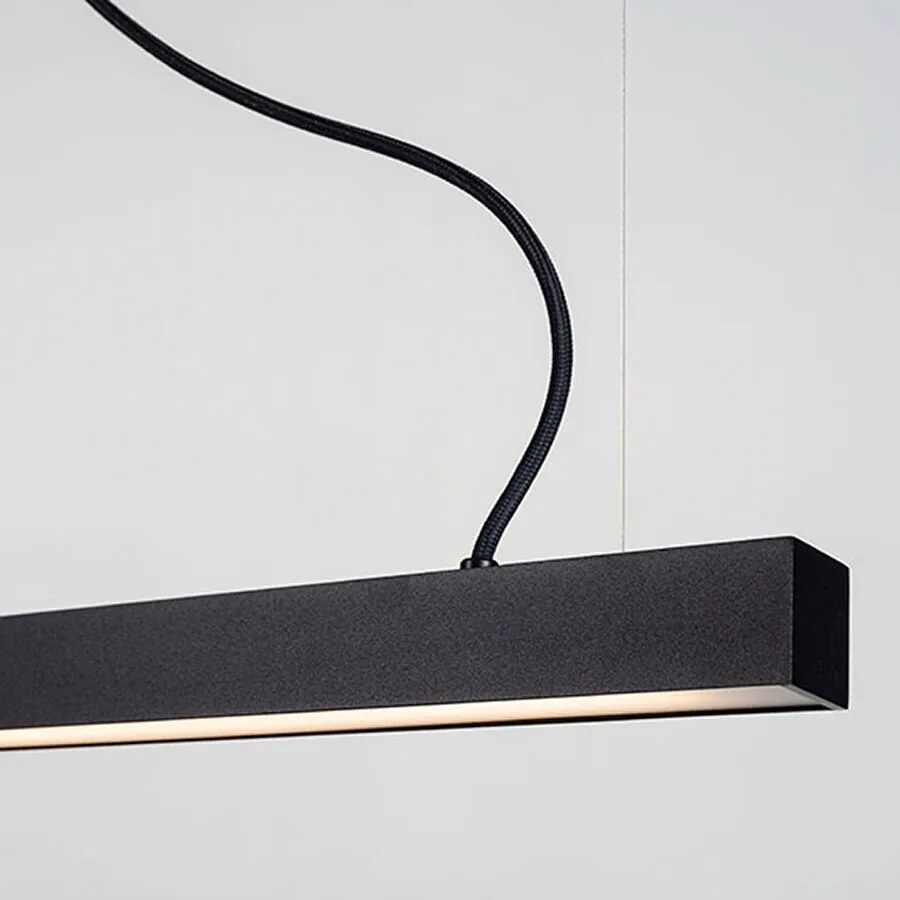

Thiny Slim Z Ceiling pendant light


  • Length
  • Diffuser
  • Dimming technology
  • Housing colour - 002/black/RAL9005
    Bitte tragen Sie Ihre NCS/RAL Wunschfarbe hier ein, z.B. S 7005-R (NCS) oder RAL9876 (RAL). Ab einer Stückzahl von 6 Leuchten in gleicher Farbe entfällt der Aufschlag.
  • Light colour
Delivery time approx. 4 weeks
Item no. 22.4102.J16.002
Add to wishlist
Contact Us
Documents
chors-thiny-slim-z-3d-data.zip chors-thiny-slim-z-installation-manual.pdf

Thiny Slim Z pendant luminaire, 1 × SLED/LED, power consumption 12.6–31.5 W, total luminous flux 1008–3565 lm, choice of diffusers: SOFT (opalescent diffuser), beam angle >90° at 30% power dissipation, PR (prismatic), beam angle 60° at 8% power dissipation, SPR (semi-prismatic), beam angle 60° at 10% power dissipation, PR/SPR achieve UGR <= 19 and comply with DIN EN 12464-1/-2, colour rendering/light colour: 2700 K/CRI98, 3000 K/CRI98, 4000 K/CRI95, control options: DALI-2, switchable, incl. driver, connection to 230 V AC/50 Hz, protection rating IP20, finishes: black/RAL9005/002, white/RAL9010/003, graphite/RAL7015/006, snow white/RAL9016/060, aluminium grey/RAL9006/101, custom NCS/RAL colours available, see pictogram for dimensions, 5-year LED warranty

Technical data

Luminaire
Item number22.4102.* · 22.4103.* · 22.4104.* · 22.4105.*Installationpendant light
Protection classIP20Weight0.8–1.4 kg
Warranty (LED)5 years
ContentsIntegrated driver
Light
Light sourceLED · SLEDPower consumption12.6 W · 18.9 W · 25.2 W · 31.5 W
Luminous flux1008–3565 lmBeam angle60° · > 90°
OpticsSOFT: opal diffuser, > 90°, 30% power
loss PR: prismatic, 60°, 8% power loss, UGR ≤ 19
SPR: semi-prismatic, 60°, 10% power loss, UGR ≤ 19
Light colours2700 K, CRI ≥ 98 (Sunlike) · 3000 K, CRI ≥ 98 (Sunlike) · 4000 K, CRI ≥ 95
LED module18 V, MacAdam Class 3Energy efficiency classE · F
Electrical
Power supply230 V, 50 HzControlDALI-2 · non-dimmable
Finishes
Standard colours002 black RAL 9005 · 003 white RAL 9010 · 006 graphite RAL 7015 · 060 snow white RAL 9016 · 101 aluminium grey RAL 9006/9007
NCS standard coloursS 0500-N, S 1020-R20B, S 1020-R80B, S 2005-Y50R, S 3005-Y50R, S 3560-R80B, S 3560-Y80R, S 4020-B30G, S 4020-R80B, S 4020-Y60R, S 4550-Y50R, S 6020-G70Y
Colour of choiceNCS or RAL as specified
Dimensions
Length600–1500 mm
Versions
Item numberModelAppearanceLight colourPowerBeam angleControlLuminous flux
22.4102.J16
22.4102.T16		Thiny Slim 60 ZSOFT2700 K12.6 W> 90°not dimmable
DALI-2		1008 lm
22.4102.J17
22.4102.T17		Thiny Slim 60 ZSOFT3000 K12.6 W> 90°not dimmable
DALI-2		1008 lm
22.4102.J18
22.4102.T18		Thiny Slim 60 ZSOFT4000 K12.6 W> 90°not dimmable
DALI-2		1090 lm
22.4102.J26
22.4102.T26		Thiny Slim 60 ZPR2700 K12.6 W60°not dimmable
DALI-2		1,325 lm
22.4102.J27
22.4102.T27		Thiny Slim 60 ZPR3000 K12.6 W60°non-dimmable
DALI-2		1325 lm
22.4102.J28
22.4102.T28		Thiny Slim 60 ZPR4000 K12.6 W60°not dimmable
DALI-2		1426 lm
22.4102.J36
22.4102.T36		Thiny Slim 60 ZSPR2700 K12.6 W60°non-dimmable
DALI-2		1296 lm
22.4102.J37
22.4102.T37		Thiny Slim 60 ZSPR3000 K12.6 W60°not dimmable
DALI-2		1296 lm
22.4102.J38
22.4102.T38		Thiny Slim 60 ZSPR4000 K12.6 W60°not dimmable
DALI-2		1395 lm
22.4103.J16
22.4103.T16		Thiny Slim 90 ZSOFT2700 K18.9 W> 90°not dimmable
DALI-2		1512 lm
22.4103.J17
22.4103.T17		Thiny Slim 90 ZSOFT3000 K18.9 W> 90°not dimmable
DALI-2		1512 lm
22.4103.J18
22.4103.T18		Thiny Slim 90 ZSOFT4000 K18.9 W> 90°not dimmable
DALI-2		1628 lm
22.4103.J26
22.4103.T26		Thiny Slim 90 ZPR2700 K18.9 W60°not dimmable
DALI-2		1988 lm
22.4103.J27
22.4103.T27		Thiny Slim 90 ZPR3000 K18.9 W60°non-dimmable
DALI-2		1988 lm
22.4103.J28
22.4103.T28		Thiny Slim 90 ZPR4000 K18.9 W60°non-dimmable
DALI-2		2139 lm
22.4103.J36
22.4103.T36		Thiny Slim 90 ZSPR2700 K18.9 W60°not dimmable
DALI-2		1944 lm
22.4103.J37
22.4103.T37		Thiny Slim 90 ZSPR3000 K18.9 W60°not dimmable
DALI-2		1944 lm
22.4103.J38
22.4103.T38		Thiny Slim 90 ZSPR4000 K18.9 W60°not dimmable
DALI-2		2093 lm
22.4104.J16
22.4104.T16		Thiny Slim ZSOFT2700 K25.2 W> 90°not dimmable
DALI-2		2016 lm
22.4104.J17
22.4104.T17		Thiny Slim ZSOFT3000 K25.2 W> 90°non-dimmable
DALI-2		2016 lm
22.4104.J18
22.4104.T18		Thiny Slim ZSOFT4000 K25.2 W> 90°not dimmable
DALI-2		2170 lm
22.4104.J26
22.4104.T26		Thiny Slim ZPR2700 K25.2 W60°not dimmable
DALI-2		2,650 lm
22.4104.J27
22.4104.T27		Thiny Slim ZPR3,000 K25.2 W60°not dimmable
DALI-2		2,650 lm
22.4104.J28
22.4104.T28		Thiny Slim ZPR4,000 K25.2 W60°non-dimmable
DALI-2		2,852 lm
22.4104.J36
22.4104.T36		Thiny Slim ZSPR2700 K25.2 W60°not dimmable
DALI-2		2592 lm
22.4104.J37
22.4104.T37		Thiny Slim ZSPR3000 K25.2 W60°not dimmable
DALI-2		2592 lm
22.4104.J38
22.4104.T38		Thiny Slim ZSPR4000 K25.2 W60°not dimmable
DALI-2		2,790 lm
22.4105.J16
22.4105.T16		Thiny Slim ZSOFT2700 K31.5 W> 90°not dimmable
DALI-2		2520 lm
22.4105.J17
22.4105.T17		Thiny Slim ZSOFT3000 K31.5 W> 90°not dimmable
DALI-2		2520 lm
22.4105.J18
22.4105.T18		Thiny Slim ZSOFT4000 K31.5 W> 90°not dimmable
DALI-2		2713 lm
22.4105.J26
22.4105.T26		Thiny Slim ZPR2700 K31.5 W60°not dimmable
DALI-2		3,312 lm
22.4105.J27
22.4105.T27		Thiny Slim ZPR3000 K31.5 W60°not dimmable
DALI-2		3312 lm
22.4105.J28
22.4105.T28		Thiny Slim ZPR4000 K31.5 W60°non-dimmable
DALI-2		3,565 lm
22.4105.J36
22.4105.T36		Thiny Slim ZSPR2700 K31.5 W60°not dimmable
DALI-2		3240 lm
22.4105.J37
22.4105.T37		Thiny Slim ZSPR3000 K31.5 W60°non-dimmable
DALI-2		3240 lm
22.4105.J38
22.4105.T38		Thiny Slim ZSPR4000 K31.5 W60°not dimmable
DALI-2		3,488 lm
